■Wiring

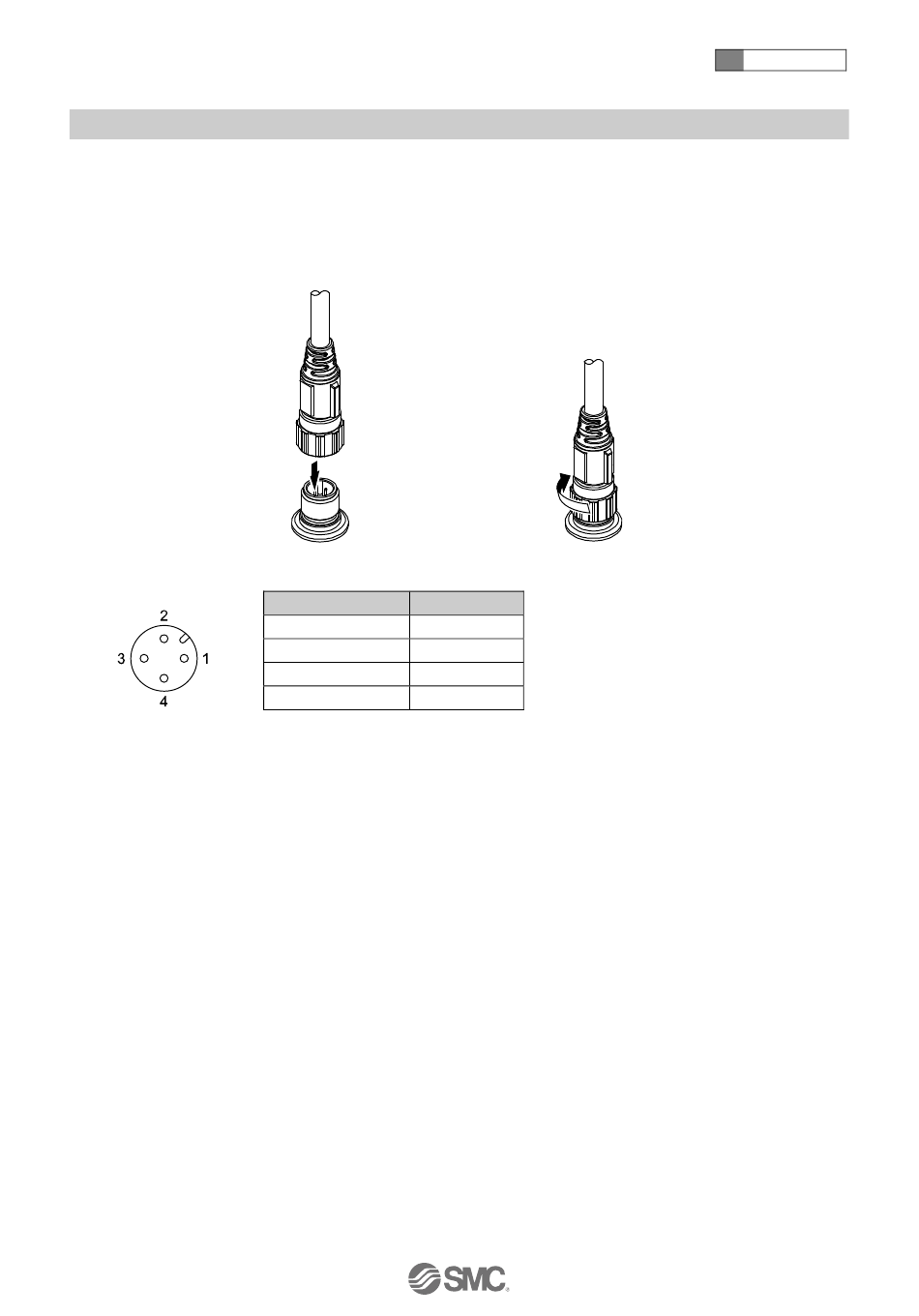

○Mounting and removal of connector
•Tighten the connector by hand.
•Align the body connector key and the lead wire connector key groove to insert vertically.
•Turn the knurled part of the lead wire side connector clockwise.
•Connection is complete when the knurled part is fully tightened. Check that the connection is not loose.
○Connector pin No. (Body side)
Connector pin No. Description
1 DC(+)
2 OUT2
3 DC(-)
4 OUT1(C/Q)
