CAT.ES60-17
A

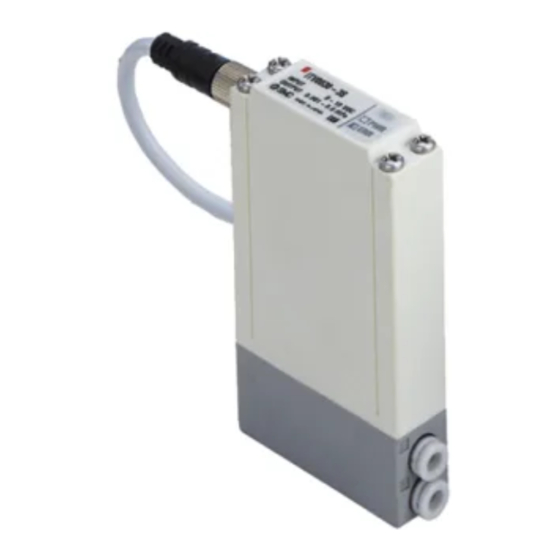

Compact Electro-pneumatic Regulator
ITV0000
Series
Compact and lightweight electro-pneumatic regulator

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ITV0000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for SMC Networks ITV0000 Series

Summary of Contents for SMC Networks ITV0000 Series

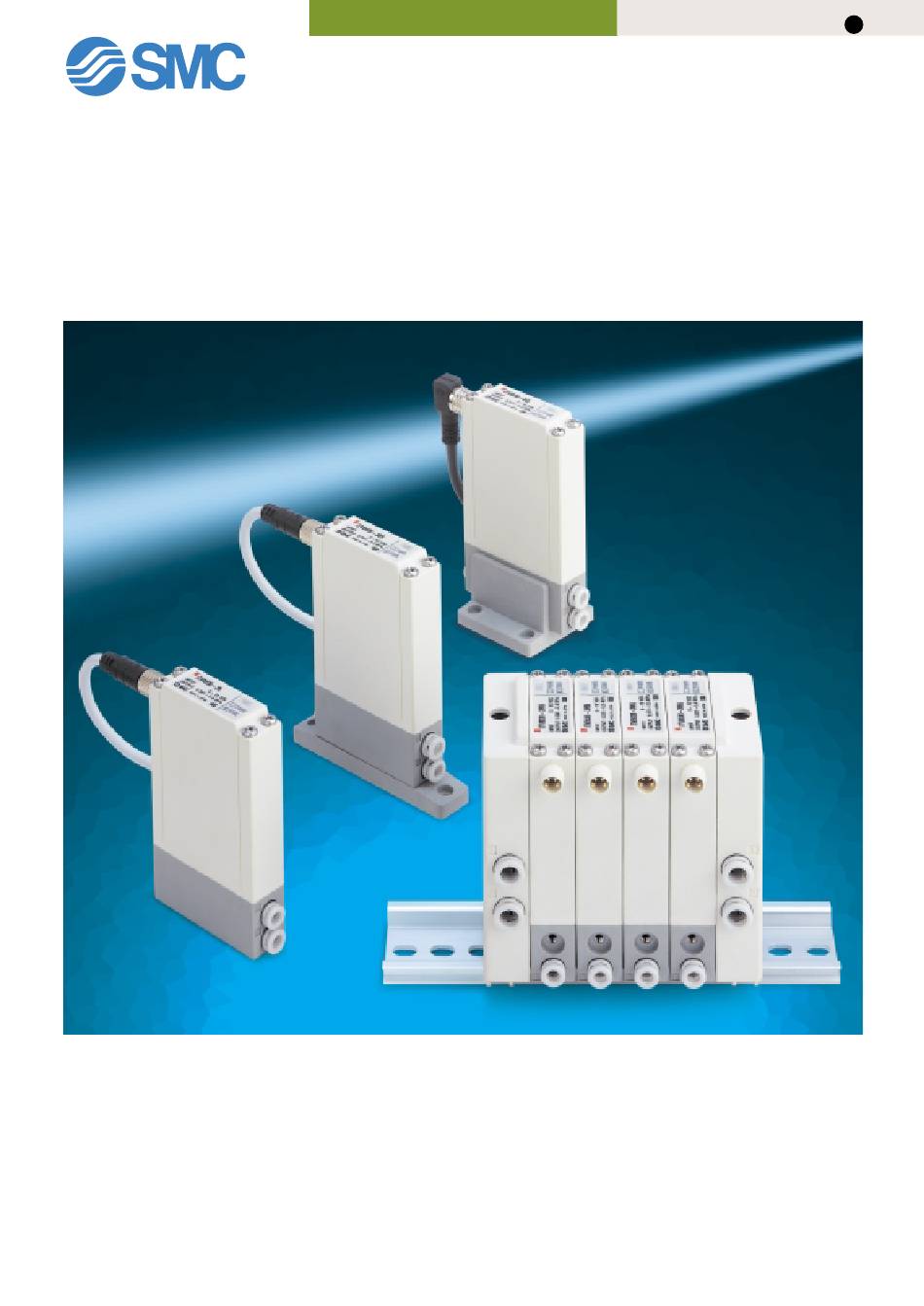

  • Page 1 CAT.ES60-17 Compact Electro-pneumatic Regulator ITV0000 Series Compact and lightweight electro-pneumatic regulator...
  • Page 2 Compact With a simplified high-density circuit board design, an extremely compact size has been achieved. Lightweight Realizes space savings Full scale and reduction of weight for manifold use Cable connectors Straight type and right angle type are available. Stations can easily be increased or decreased Straight type Right angle type...

  • Page 4: How To Order

    Compact Electro-pneumatic Regulator ITV0000 Series How to Order Single unit and single unit for manifolds ITV00 1 0 Pressure range Power supply voltage 0.1MPa Cable connector (option) 0.5MPa 24VDC Without cable connector ∗ 0.9MPa 12 to 15VDC Straight type 3m ∗...

  • Page 5: Specifications

    ITV0000 Series Compact Electro-pneumatic Regulator Specifications ITV001 ITV003 ITV005 ITV009 Model Minimum supply pressure Set pressure + 0.1MPa Set pressure -1kPa Maximum supply pressure 0.2MPa 1.0MPa -101kPa Set pressure range 0.001 to 0.1MPa 0.001 to 0.5MPa 0.001 to 0.9MPa -1 to -100kPa /min (ANR) /min (ANR) /min (ANR)

  • Page 6: Working Principle

    ITV0000 Series Working Principle When the input signal rises, the air supply solenoid valve (1) turns ON. Due to this, part of the supply pressure passes through the air supply solenoid valve (1) and changes to output pressure. This output pressure feeds back to the control circuit (4) via the pressure sensor (3).
  • Page 7 ITV0000 Series Compact Electro-pneumatic Regulator Series ITV001 Linearity, hysteresis Repeatability With 50% of signal input Return -0.2 -0.4 –0.5 -0.6 -0.8 –1 Input signal % F.S. Repetition Pressure characteristics Flow characteristics Set pressure: 0.05MPa Supply pressure: 0.2MPa 100kPa 80kPa 60kPa Return 40kPa -0.5...
  • Page 8 ITV0000 Series Series ITV005 Linearity, hysteresis Repeatability With 50% of signal input Return –0.2 –0.4 -0.5 –0.6 –0.8 –1 Input signal % F.S. Repetition Pressure characteristics Flow characteristics Set pressure: 0.45MPa Supply pressure: 1.0MPa 1000 900kPa 800kPa 700kPa 600kPa 500kPa 400kPa Return 300kPa...

  • Page 9: Single Unit

    ITV0000 Series Compact Electro-pneumatic Regulator Dimensions Single unit L bracket (optional) Flat bracket M8 x 1 (optional) Cable connection threads Port position ITV00 ITV009 Note) Breathing hole (M3 x 0.5) SUPz OUT port Note) When used under conditions SUP, VAC port VACz (ø4, ø5/32") OUTx...
  • Page 10 ITV0000 Series Dimensions Single unit for manifolds M8 x 1 Cable connection threads Note) Breathing hole (M3 x 0.5) OUTx OUT port (ø4, ø5/32") 18.5 Note) When used under the conditions equivalent 26.5 to IP65, use the regulator after piping a fitting/tube into a breathing hole.
  • Page 11 ITV0000 Series Compact Electro-pneumatic Regulator Dimensions Manifolds 4-M3 x 0.5 thread depth 3 Mounting hole Port position ITV00 ITV009 Note) Stations are counted starting from the D side. D side U side 2 ..stations 3 (8) Dimensions in inch are noted in parentheses. SUP, VAC z port (ø6, ø1/4") EXH, ATM c port...

  • Page 12: Safety Instructions

    ITV0000 Series Safety Instructions These safety instructions are intended to prevent a hazardous situation and/or equipment damage. These instructions indicate the level of potential hazard by labels of "Caution", "Warning" or "Danger". To ensure safety, be sure to observe ISO 4414 Note 1) , JIS B 8370...
  • Page 13 ITV0000 Series Electro-pneumatic Regulator Precautions Be sure to read before handling. Piping Handling of One-touch Fittings Caution Caution 1. Tube attachment/detachment for One-touch fittings 1. Preparation before piping 1) Attaching a tube Before piping, air blow (flush) or wash thoroughly to remove chips, cutting oil and other impurities from inside the piping.
  • Page 14 ITV0000 Series Specific Product Precautions 1 Be sure to read before handling. Refer to pages 9 and 10 for safety instructions and precautions. Air Supply Wiring Caution Caution 1. Install an air filter near this product on the 1. Connect the cable to the connector on the supply side.
  • Page 15 ITV0000 Series Specific Product Precautions 2 Be sure to read before handling. Refer to pages 9 and 10 for safety instructions and precautions. Handling Caution Caution 1. Do not use a lubricator on the supply side of 6. The optional cable connector is a 4 wire type.
  • Page 16 SMC'S GLOBAL MANUFACTURING, DISTRIBUTION AND SERVICE NETWORK EUROPE EUROPE NORTH AMERICA SLOVENIA AUSTRIA CANADA SMC Slovenia d.o.o. SMC Pneumatik GmbH SMC Pneumatics (Canada) Ltd. SPAIN/PORTUGAL CZECH MEXICO SMC España, S.A. SMC Czech s.r.o. SMC Corporation (Mexico) S.A. de C.V. SWEDEN DENMARK SMC Pneumatics Sweden AB SMC Pneumatics, Inc.
