Pressure switch output 2 on the OUT
port side

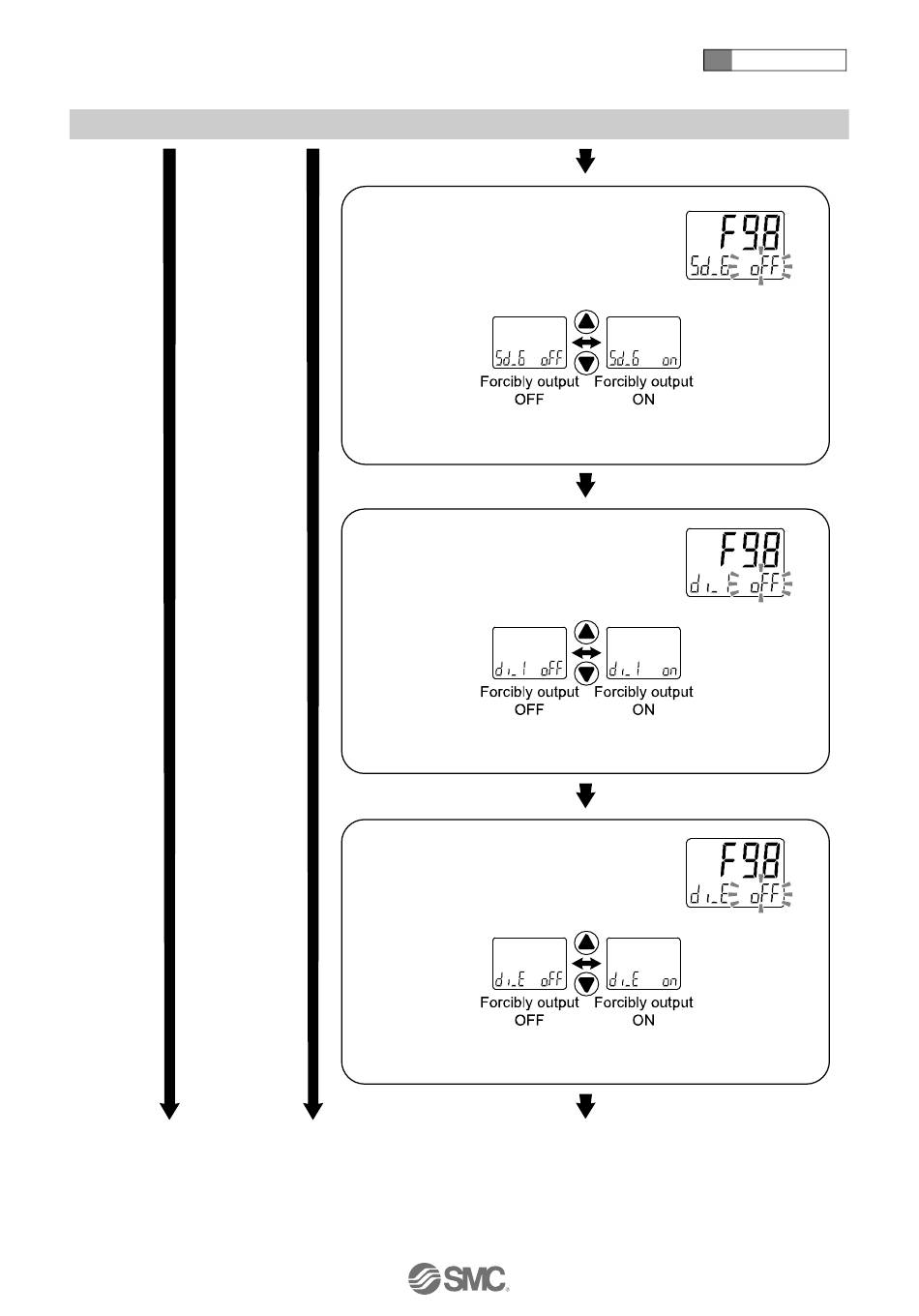

Press the UP or DOWN button to select
forcibly output ON/OFF to check the
output condition.
∗: Bit offset: 5 in the process data will change to 0 (Forcibly output OFF)/
1 (Forcibly output ON).
Press the SET button to set.
Pressure diagnostic output check
Press the UP or DOWN button to select
forcibly output ON/OFF to check the
output condition.
∗: Bit offset: 8 in the process data will change to 0 (Forcibly output OFF)/
1 (Forcibly output ON).
Press the SET button to set.
Error diagnostic output check
Press the UP or DOWN button to select
forcibly output ON/OFF to check the
output condition.
∗: Bit offset: 15 in the process data will change to 0 (Forcibly output OFF)/
1 (Forcibly output ON).
Press the SET button to set.
-80-
4
How to use
No.PS※※-OMW0009-C
