Document No. IR30-OM00016

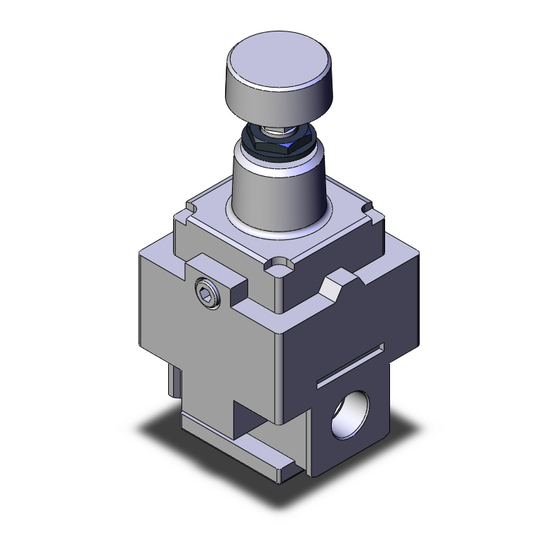

PRODUCT NAME
Regulator
MODEL / Series / Product Number
IR320(0, 1, 2)-A
IR321(0, 1, 2)-A
IR322(0, 1, 2)-A

Advertisement

loading
Need help?

Need help?

Do you have a question about the IR320-A and is the answer not in the manual?

Questions and answers

Summary of Contents for SMC Networks IR320-A

  • Page 1 Document No. IR30-OM00016 PRODUCT NAME Regulator MODEL / Series / Product Number IR320(0, 1, 2)-A IR321(0, 1, 2)-A IR322(0, 1, 2)-A...
  • Page 2: Table Of Contents

    Contents Safety Instructions 2 to 6 1. Application 2. Specifications 3. Construction and Operation Principles 4. How to order 5. Bracket, gauge and switch assembly (optional) 6. Panel mounting 7. Troubleshooting 8. Dimensions 13 to 14...
  • Page 3: Safety Instructions

    Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.”They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations.
  • Page 4 Safety Instructions Caution 1.The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary. If anything is unclear, contact your nearest sales branch.
  • Page 5 Operating Environment Do not use in an atmosphere containing corrosive gases, chemicals, organic solvent, sea water, water, water steam, or where there is direct contact with any of these. Do not operate in environments subject to heavy vibration and/or impact. The regulator should not be exposed to prolonged sunlight.
  • Page 6 Piping Connect piping/fittings using the recommended torque while holding the product tightly. Looseness or faulty sealing will occur if tightening torque is insufficient, while thread damage will result if the torque is excessive. Furthermore, if the side with the female threads is not held while tightening, excessive force will be applied directly to piping brackets, etc.
  • Page 7 Handling When the precision regulator with pressure gauge is used, do not apply impact to the product by dropping it etc. during transportation or installation. This may cause misalignment of the pressure gauge pointer. Air Supply The operating fluid must be compressed air. Contact SMC if using the product with other fluids. Do not use compressed air that contains chemicals, synthetic oils including organic solvents, salts or corrosive gases etc., as this can cause damage or malfunction.
  • Page 8: Application

    Application This instrument aims at controlling pressure of air lines. Specifications Model IR320(0,1,2)-A IR321(0,1,2)-A IR322(0,1,2)-A Max. supply pressure [ MPa] Min. supply pressure Set pressure + 0.1 (Note 1) [MPa] Set pressure range 0.02 to 0.2 0.02 to 0.4 0.02 to 0.8 [MPa] (Note 3) (Note 2)
  • Page 9: Construction And Operation Principles

    Construction and Operation Principles When the knob is rotated, the flapper is pushed through the spring, and a gap is generated between the nozzle and flapper. The supply pressure flows to the inlet passes through the path between the nozzle and flapper and acts on the supply / exhaust diaphragm as nozzle pressure. The force generated by the diaphragm pushes down the valve, and the supply pressure flows to the outlet.
  • Page 10: How To Order

    How to order 2SWLRQ6HPLVWDQGDUG6HOHFW RQH HDFK IRU D WR H 2SWLRQ6HPLVWDQGDUG V\PEOH:KHQ PRUH WKDQ RQH VSHFLILFDWLRQ LV UHTXLUHG LQGLFDWH LQ DOSKDQXPHULF RUGHU...
  • Page 12: Panel Mounting

    Panel mounting 1. Panel mounting 1) Handle removal Remove the handle from the regulator. 2) Panel mounting Insert the regulator into the panel. 3) Nut tightening Adjust the regulator position and tighten the attached hexagon panel nut. Recommended tightening torque Wrench size [mm] Tightening Torque[N-m] 3 to 4...
  • Page 13: Troubleshooting

    7 Troubleshooting Problem Possible causes Countermeasures Set the pressure again. Fluctuation of flow rate at the downstream side Return the flow rate at the downstream side to the initial rate. Ozone Use the ozone resistant product (80- series). Leakage due to deterioration of the Temperature Avoid using at high temperature or low temperature.
  • Page 14: Dimensions

    Dimensions 8-1. Dimensions of the regulator with the bottom exhaust direction [IR32*0-A] -13-...
  • Page 15 8-2. Dimensions of the regulator with the front or back exhaust direction [IR32*(1 2)-A]. -14-...
  • Page 16 Revision history 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 http://www.smcworld.com Note:...
