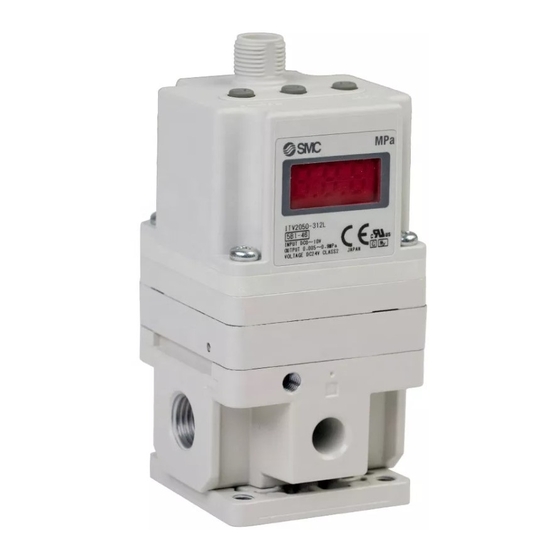

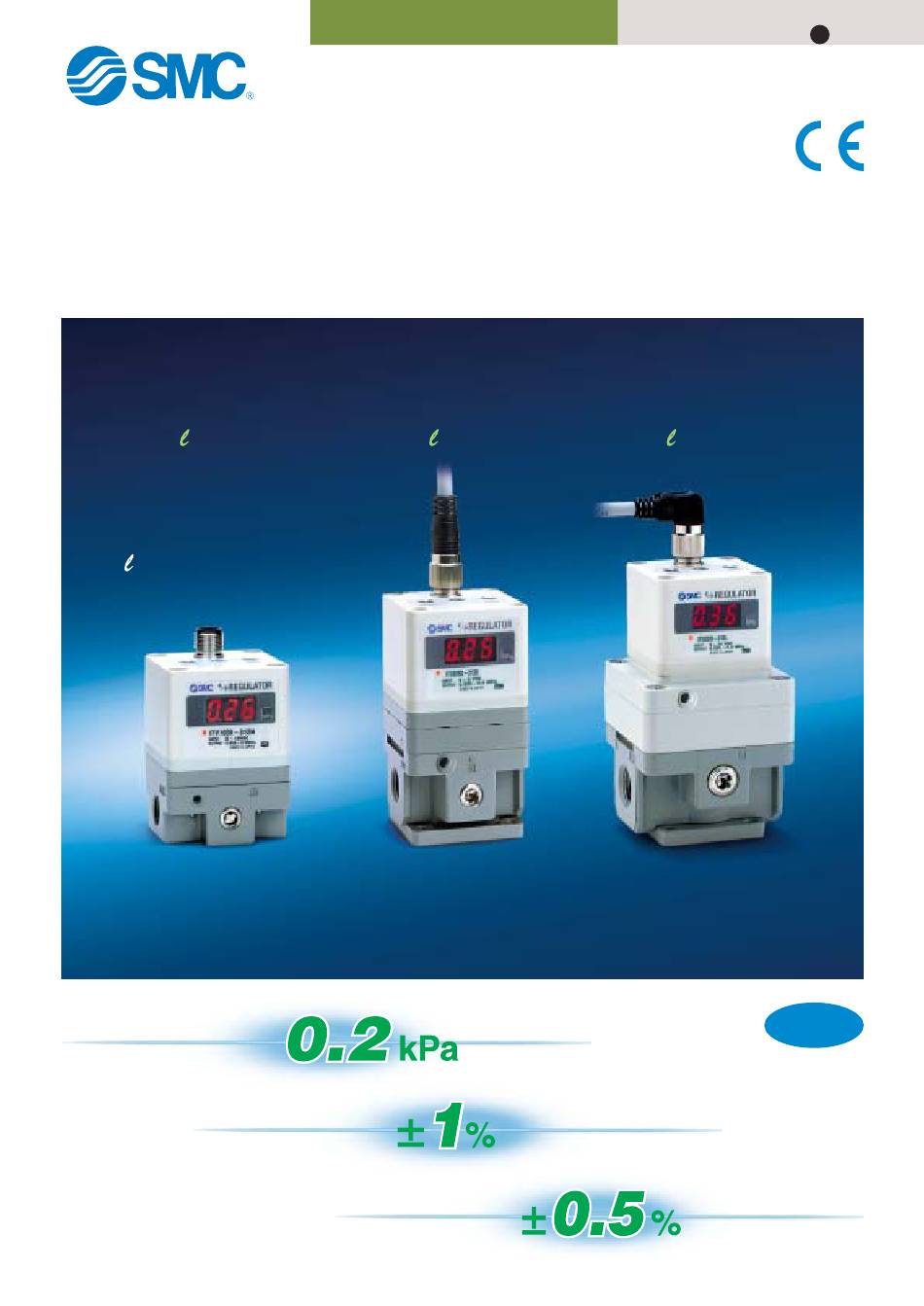

Electro-Pneumatic Regulator
Stepless control of air pressure proportional to an electrical signal
ITV1000
200 /min (ANR)
t y p e i s n e
2 0 0 / m i n
d t o t h e s
i n t r o d u c e
e c i f i c a t i o
O i l f r e e s p
ITV1000/2000/3000
Series
Sensitivity:
Linearity: Within
Hysteresis: Within
ITV2000
∗
1500 /min (ANR)
w l y
e r i e s .
a r ts )
(w e tt e d p
n s
ITV3000
∗
4000 /min (ANR)
∗ Pressure range: 0.9 MPa, Supply pressure: 1.0 MPa
(100 kPa specifications)
(F.S.)
CAT.ES60-15
D
-UK
∗
IP65
(F.S.)
Advertisement
Table of Contents
Related Manuals for SMC Networks ITV1000 Series
Summary of Contents for SMC Networks ITV1000 Series
- Page 1 CAT.ES60-15 Electro-Pneumatic Regulator Stepless control of air pressure proportional to an electrical signal ITV1000 ITV2000 ITV3000 ∗ ∗ ∗ 200 /min (ANR) 1500 /min (ANR) 4000 /min (ANR) w l y t y p e i s n e 2 0 0 / m i n e r i e s .
-
Page 2: Standard Specifications
Electro-Pneumatic Regulator ITV1000/2000/3000 Series Standard Specifications ITV101 ITV103 ITV105 ITV201 ITV203 ITV205 Model ITV301 ITV303 ITV305 Minimum supply pressure Set pressure +0.1 MPa Maximum supply pressure 0.2 MPa 1.0 MPa Note 1) Set pressure range 0.005 to 0.1 MPa 0.005 to 0.5 MPa 0.005 to 0.9 MPa Voltage 24 VDC ±... - Page 3 ITV1000/2000/3000 Series Electro-Pneumatic Regulator Standard Combination Combination Combinations specifications possible not possible ∗ ITV10 models are not applicable. Applicable model REGULATOR r Spacer ITV20 Specifications ITV20 ITV30 ITV2000 Set pressure max. 0.1 MPa Set pressure max. 0.5 MPa Set pressure max. 0.9 MPa Connection Rc 1/4 Connection Rc 3/8 eL-bracket...
-
Page 4: Working Principles
ITV1000/2000/3000 Series Working Principles When the input signal rises, the air supply solenoid valve q turns ON, and the exhaust solenoid valve w turns OFF. Therefore, supply pressure passes through the air supply solenoid valve q and is applied to the pilot chamber e. The pressure in the pilot chamber e increases and operates on the upper surface of the diaphragm r. - Page 5 ITV1000/2000/3000 Series Electro-Pneumatic Regulator ITV101 Series Hysteresis Repeatability Linearity 0.10 0.08 Return 0.06 0.04 –0.5 –0.5 0.02 –1.0 0.00 –1.0 Input signal (%F.S.) Input signal (%F.S.) Repetition Pressure characteristics Flow characteristics Relief flow characteristics Supply pressure: 0.2 MPa Set pressure: 0.05 MPa Supply pressure: 0.2 MPa 0.15 0.25...
- Page 6 ITV1000/2000/3000 Series ITV301 Series Linearity Hysteresis Repeatability 0.10 0.09 0.08 0.07 0.06 0.05 Return 0.04 0.03 –0.5 –0.5 0.02 0.01 0.00 –1.0 –1.0 Input signal (%F.S.) Input signal (%F.S.) Repetition Pressure characteristics Flow characteristics Relief flow characteristics Supply pressure: 0.2 MPa Set pressure: 0.05 MPa Supply pressure: 0.2 MPa 0.15...
- Page 7 ITV1000/2000/3000 Series Electro-Pneumatic Regulator ITV103 Series Hysteresis Repeatability Linearity Return –0.5 –0.5 –1.0 –1.0 Input signal (%F.S.) Repetition Input signal (%F.S.) Pressure characteristics Flow characteristics Relief flow characteristics Supply pressure: 0.7 MPa Set pressure: 0.2 MPa Supply pressure: 0.7 MPa Set point –0.5 –1.0...
- Page 8 ITV1000/2000/3000 Series ITV303 Series Linearity Hysteresis Repeatability Retirm –0.5 –0.5 –1.0 –1.0 Input signal (%F.S.) Input signal (%F.S.) Repetition Pressure characteristics Flow characteristics Relief flow characteristics Set pressure: 0.2 MPa Supply pressure: 0.7 MPa Supply pressure: 0.7 MPa Set point –0.5 –1.0 1000 2000...
- Page 9 ITV1000/2000/3000 Series Electro-Pneumatic Regulator ITV105 Series Hysteresis Repeatability Linearity Return –0.5 –0.5 –1.0 –1.0 Input signal (%F.S.) Repetition Input signal (%F.S.) Pressure characteristics Flow characteristics Relief flow characteristics Supply pressure: 1.0 MPa Set pressure: 0.4 MPa Supply pressure: 1.0 MPa Set point –0.5 –1.0...
- Page 10 ITV1000/2000/3000 Series ITV305 Series Hysteresis Repeatability Linearity Return –0.5 –0.5 –1.0 –1.0 Input signal (%F.S.) Input signal (%F.S.) Repetition Pressure characteristics Flow characteristics Relief flow characteristics Set pressure: 0.4 MPa Supply pressure: 1.0 MPa Supply pressure: 1.0 MPa Set point –0.5 –1.0 0 1000 2000 3000 4000 5000 6000 7000...
-
Page 11: Flat Bracket
ITV1000/2000/3000 Series Electro-Pneumatic Regulator Dimensions ITV10 Note) Do not attempt to rotate, as the cable connector does not turn. Flat bracket M12 x 1 12.5 Cable connection threads REGULATOR ITV10 INPUT 0~10VDC Rc1/8 OUTPUT 0.005~0.5MPa MADE IN JAPAN Exhaust port Solenoid valve Solenoid valve EXH EXH (3) - Page 12 ITV1000/2000/3000 Series Dimensions ITV20 Flat bracket Note) Do not attempt to rotate, as the cable connector does not turn. M12 x 1 12.5 Cable connection threads REGULATOR ITV2000 Rc1/4 Solenoid valve Exhaust port Solenoid valve EXH EXH (3) SUP (1) OUT (2) Flat bracket P3020114...
- Page 13 ITV1000/2000/3000 Series Electro-Pneumatic Regulator Dimensions ITV30 Note) Do not attempt to rotate, as the cable connector does not turn. 12.5 Flat bracket M12 x 1 Cable connection threads REGULATOR ITV3000 Solenoid valve EXH Solenoid valve Rc1/2 Exhaust port EXH (3) SUP (1) SUP (2) Flat bracket...
- Page 14 ITV1000/2000/3000 Series M a d e O r d e r Made to Order Specifications Contact SMC regarding detailed dimensions, specifications and delivery times. Ozone Resistant Specifications Digital Input Type Fluoro rubber is used for the rubber parts of seals. Parallel input type with digital 10 bit.
- Page 15 ITV1000/2000/3000 Series M a d e Made to Order Specifications O r d e r Contact SMC regarding detailed dimensions, specifications and delivery times. Manifold Specifications (Except Series ITV3000) 2 through 8 station manifold. How to Order Manifolds How to Order Manifold Assemblies IITV20 Example Valve stations...
-
Page 16: Safety Instructions
ITV1000/2000/3000 Series Safety Instructions These safety instructions are intended to prevent a hazardous situation and/or equipment damage. These instructions indicate the level of potential hazard by labels of "Caution", "Warning" or "Danger". To ensure safety, be sure to observe ISO 4414 Note 1) JIS B 8370 Note 2) - Page 17 ITV1000/2000/3000 Series Electro-Pneumatic Regulator Precautions Be sure to read before handling. Piping Piping 2. Wrapping of pipe tape Warning When screwing together pipes and fittings, etc., be certain that 1. Screw piping together with the recommended chips from the pipe threads and sealing material do not get inside the piping.
- Page 18 ITV1000/2000/3000 Series Specific Product Precautions 1 Be sure to read before handling. Refer to pages 15 and 16 for safety instructions and precautions. Operating Environment Handling Warning Caution 1. Employ suitable protective measures in 4. If supply pressure to this product is interrup- locations where there is contact with water ted while the power is still on, the internal droplets, oil or welding spatter, etc.
- Page 19 ITV1000/2000/3000 Series Specific Product Precautions 2 Be sure to read before handling. Refer to pages 15 and 16 for safety instructions and precautions. Wiring Caution Connect the cable to the connector on the body Monitor output wiring diagram with the wiring arranged as shown below. Analogue output, voltage type Proceed carefully, as incorrect wiring can Brown...
- Page 20 EUROPEAN SUBSIDIARIES: Lithuania France Slovakia Austria UAB Ottensten Lietuva SMC Pneumatique, S.A. SMC Priemyselná Automatizáciá, s.r.o. SMC Pneumatik GmbH (Austria). 1, Boulevard de Strasbourg, Parc Gustave Eiffel Námestie Martina Benku 10 Girakstrasse 8, A-2100 Korneuburg Savanoriu pr. 180, LT-2600 Vilnius, Lithuania Bussy Saint Georges SK-81107 Bratislava Phone: +43 2262-62280, Fax: +43 2262-62285...
