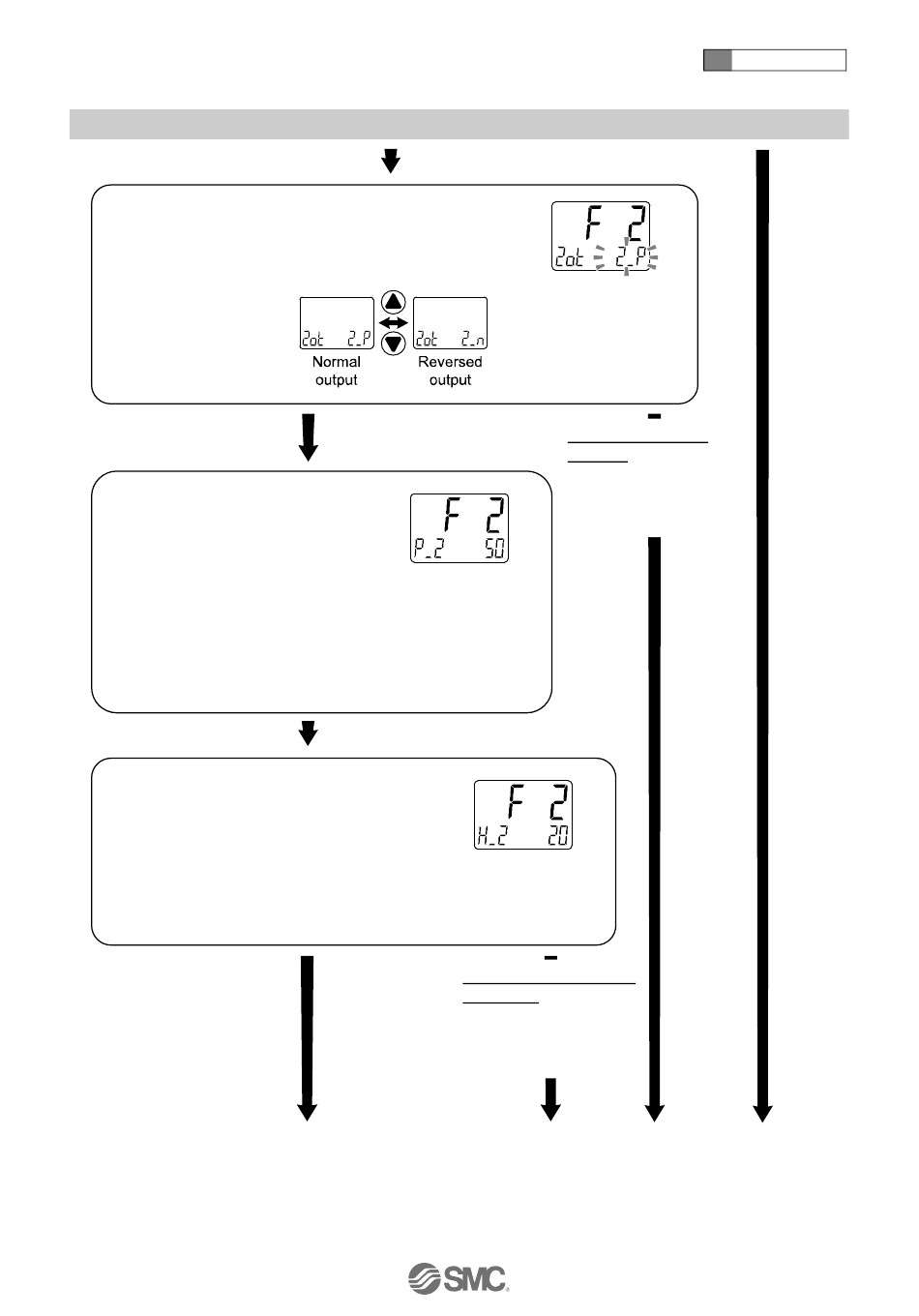

Reversed output setting
Press the UP or DOWN button to select the reversed
output.
Press the SET button to set.
Switch point (distance/pressure)
setting
Set the switch point based on the
setting method on page 46.
Hysteresis mode: [P_2][EP_2][SP_2]
Window comparator mode: [P2L][P2H][EP2L]
"P" is changed to "n" as [P_2] → [n_2] when reversed
output is selected.
The snap shot function can be used. (Refer to page 84)
Press the SET button to set.
Hysteresis setting
Set the pressure referring to the setting
method on page 46.
Hysteresis mode: [H_2][EH_2][SH_2]
Window comparator mode: [WH2][EH2][SH2]
The snap shot function can be used. (Refer to page 84)
Press the SET button to set.
Move on to switch point
(distance/pressure) setting.
[EP2H][SP2L][SP2H]
Move on to hysteresis setting.
Move on to delay
[diSt] Distance detection
time setting.
is selected
Press the SET button to
move on to display
colour setting.
-56-
4 How to use
[Err] Error output is
selected
Press the SET button to
move on to display
colour setting.
No.PS※※-OMW0009-C
