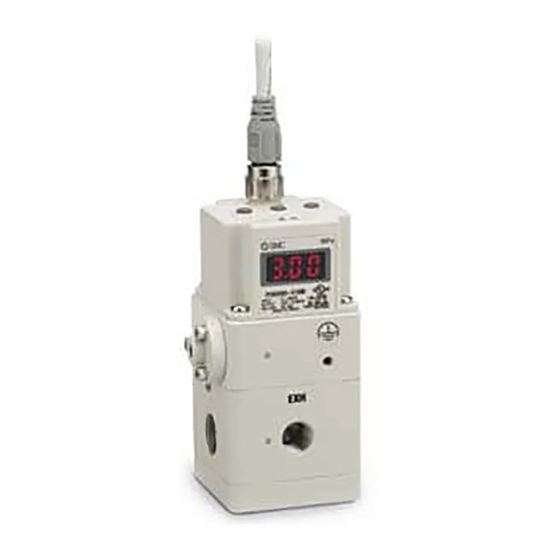

High Pressure E/P Regulator
Install and operate the product only after reading the Operation Manual carefully and
●
understanding its contents.
Specifically, read the safety instructions carefully.
●
Keep this operation manual available whenever necessary.
●
This product is only for blowing. This product does not have sufficient control for applications
●
other than blowing (driving, sealing etc.).
P R O D U C T
MODEL/ Series/ Product Number
ITVX Series
Doc. No. DII-63400-OM002-C
N A M E
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SMC Networks ITVX Series
Summary of Contents for SMC Networks ITVX Series
- Page 1 P R O D U C T N A M E High Pressure E/P Regulator MODEL/ Series/ Product Number ITVX Series Install and operate the product only after reading the Operation Manual carefully and ● understanding its contents. Specifically, read the safety instructions carefully.
-
Page 2: Table Of Contents
Contents Contents Safety Instructions Handling precautions Wiring method Setting method Key locking function Setting of min. pressure, max. pressure and switch output Mode of switch output Reset function Error indicating function Detail setting mode Gain setting Zero clear Initialize LED display - 1 -... -
Page 3: Safety Instructions P2
High Pressure E/P Regulator Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) and other safety regulations. - Page 4 4. Use in an interlock circuit, which requires the provision of double interlock for possible failure by using a mechanical protective function, and periodical checks to confirm proper operation. High Pressure E/P Regulator Safety Instructions Caution 1. The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries.
-
Page 5: Handling Precautions P4
Warning If oxygen is used as the fluid, it can lead to serious and unforeseen risks. However, it is possible to manage and control the risk of hazards and economic loss. In order to use the product safely, it should only be handled by personnel with appropriate knowledge, with support from a suitably qualified specialist. - Page 6 If supply pressure to this product is interrupted or shut off, while the power is still on, the internal solenoid valve will continue to operate and a humming noise will be generated. Turn off the power supply when supply pressure is interrupted or shut off, since the life of the product may be shortened.
-
Page 7: Wiring Method P6
Take the following steps to avoid malfunction due to noise. 1. Install a line filter etc. to the AC power line to reduce / eliminate power supply noise. 2. Avoid malfunction due to noise by installing this product and its wiring away from strong electric fields, such as those of motors and power cables, etc. - Page 8 ① Proceed carefully, as incorrect wiring can cause damage. ② Use a DC power supply with sufficient capacity and a low ripple. ③ Turn off the power supply to remove and insert the connector. ④ Never rotate the right angled type connector as it is not designed to rotate. Brown Power supply White...
-
Page 9: Setting Method P8
Analogue output - Voltage type Analogue output - Current (sink) type （ITVX2030-※1） （ITVX2030-※4） ： B rown ： B rown ○ ： B lue ○ ： B lue ： W hite ： W hite Monitor output current Monitor output voltage ○ ○... -
Page 10: Key Locking Function P9
① If an incorrect key is pressed or incorrect information is displayed during setting, power must be turned off and the procedure started again. ② It is recommended that the settings are changed without supply pressure. The product operates immediately maximum and minimum pressures are set and the S-key is pressed. ③... -
Page 11: Setting Of Min. Pressure, Max. Pressure And Switch Output P10
The keys are locked after turning the power on and can not be operated. Unlocking the keys Key operation LED Display ① (current) pressure is displayed ② Press ▽ key for 2 seconds or more. is displayed ③ flashes on the display ④... -
Page 12: Mode Of Switch Output P11
① Unlock keys (refer to P9) ② Press S-key Set the minimum pressure by using the △ ⇔ ③ (displayed alternately) and ▽ keys. * Adjusting range: Refer to Note 1 to 6 ④ Press S-key ⇔ Set the maximum pressure by using the ⑤... -
Page 13: Reset Function P12
The following operation types are available by setting P_1 and P_2. (Note) This function is available for monitor output: switch output type. (ITVX2030-※2, -※3) ■ P_1＜P_2： ■ P_1≧P_2： Window comparator mode Hysteresis mode Output pressure of E/P regulator O FF O FF Switch output ■... -
Page 14: Detail Setting Mode P13
Reset method Key operation LED Display ① Unlock keys (refer to P9) Press the △ and ▽ keys simultaneously for 3 ② (Current) pressure is displayed seconds or more. ③ is displayed for approx. 1 second ④ The settings are reset and returned to the condition before power was applied. (Key locked) Reset content Item... -
Page 15: Gain Setting P13
Key operation and LED display ① Unlock keys (refer to P9) ② Press S-key for 2 seconds or more. ⇔ (displayed alternately) Press S-key △ key ↑ To "Gain" (P13) ▽ key ↓ △ key ③ ⇔ (displayed alternately) Press S-key △... -
Page 16: Zero Clear P14
⑧ Lock keys (refer to P9) Relation between setting of gain and response time Response Slow Quick ～ Setting of GAIN (Note) Default : Zero clear The display can be reset to zero by executing "Zero clear". When "Zero clear" is executed with residual pressure in the secondary piping, the pressure is assumed to be zero. -
Page 17: Led Display P15
Initialize "Initialize" is a function to return all the settings that the internal control constant are included to an initial value. Please execute "initialize" only when the error is displayed and this product does not operate at all. Please execute the "Reset" function, when you want to return the pressure setting and the switch setting to an initial value. - Page 18 Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 URL http://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. © 2012 SMC Corporation All Rights Reserved - 17 -...
