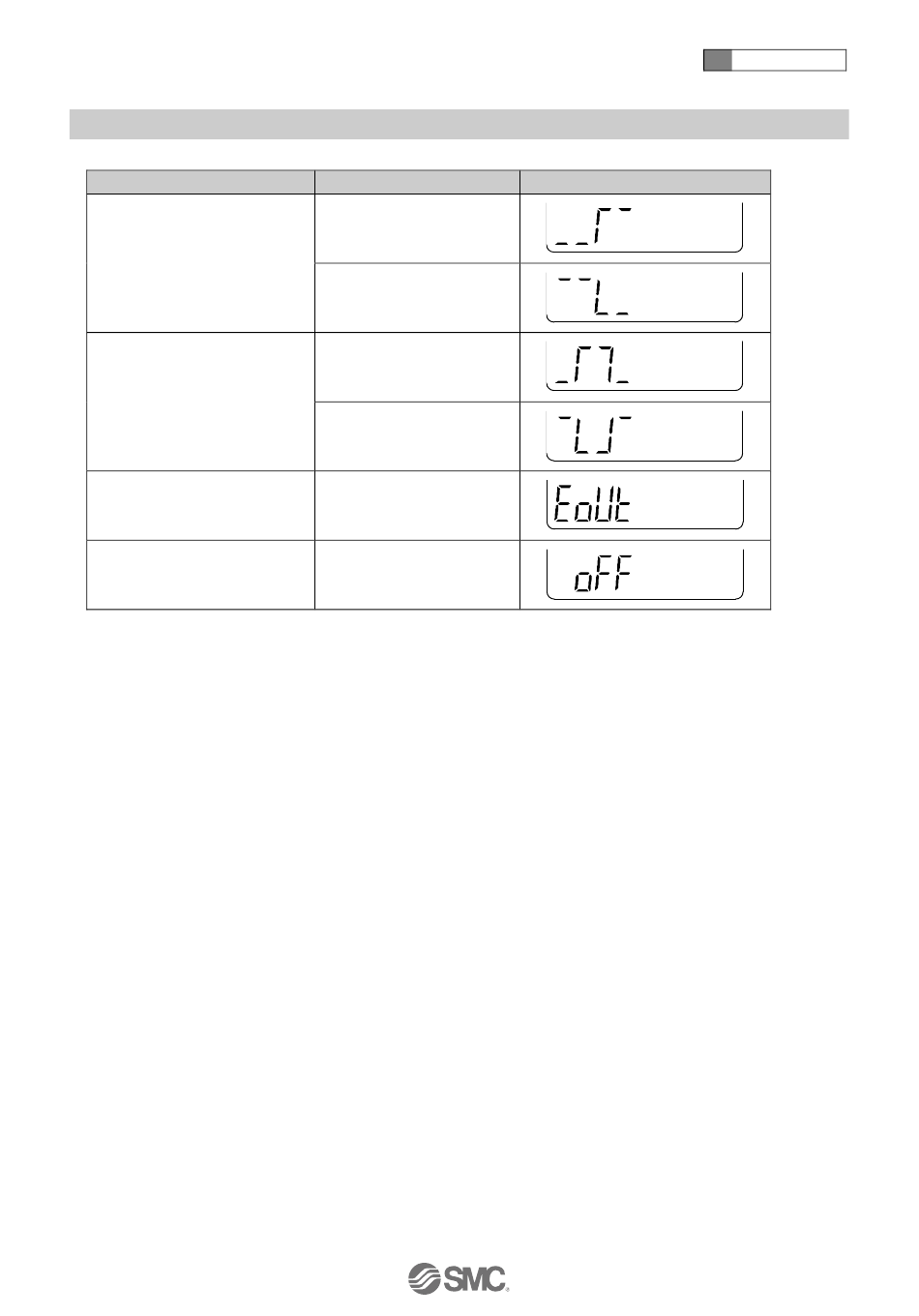

Table showing the output mode and output form when Md1 and Md2 are selected.
Output mode
Hysteresis mode
Window comparator mode
Error output
Switch output off
When using the 2 value display function, 3 step setting is not available for the display.
(When setting 3 step, select each set value to be displayed by pressing the UP or DOWN button.)
When output operation mode is changed after selecting the 2 value display, the selected display items will
not be applicable and [- - -] will be displayed. In this case, select items for the 2 value display setting again.
Output style
Normal output
Reversed output
Normal output
Reversed output
Normal/Reversed output
―
