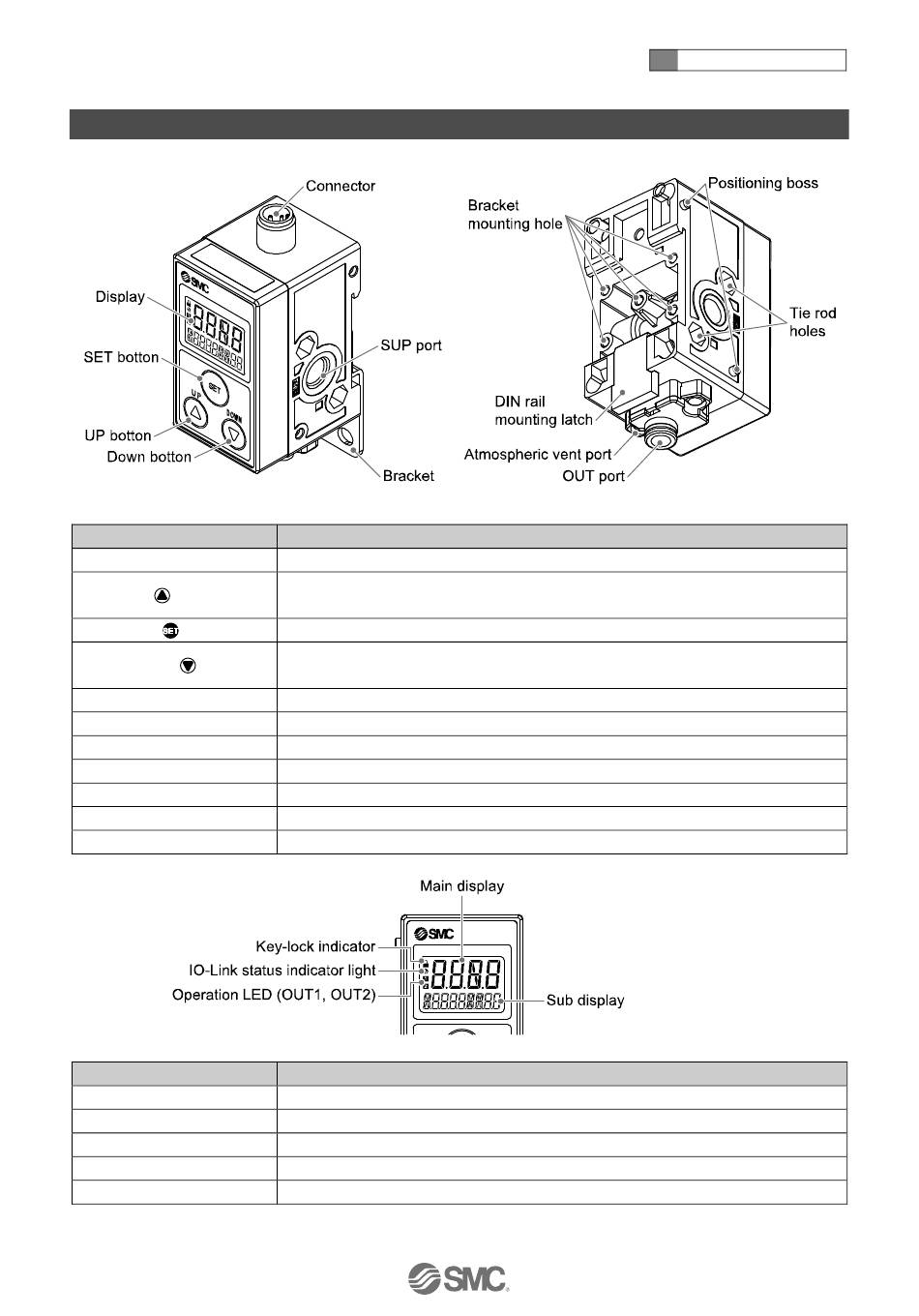

Summary of Product parts

Element
Display
UP button ( button)
SET button ( button)
DOWN button ( button)
Connector
SUP port (Supply port)
Bracket mounting hole
Tie rod holes
OUT port (Detection port)
Atmospheric vent port
DIN rail mounting latch
Display
Element
Main display
Operation LED
Sub display
Key-lock indicator
IO-Link status indicator light
See below
Selects the mode and the display shown on the sub display, or increases the switch
point.
Press this button to change the mode and to fix the settings.
Selects the mode and the display shown on the sub display, or decreases the switch
point.
Electrical connection.
Port to supply pressure.
Used to attach the bracket to the product.
Used to connect additional products.
Port to be connected to the detection nozzle.
Port to vent exhaust air to the atmosphere.
Used to mount the product on a DIN rail.
ON/OFF, display value and error code are displayed. (2 colour display)
Indicates the switch output status. Turns ON (orange) when the switch output is ON.
Level meter, display value, switch point, pressure etc. are displayed.
Turns ON when keys are locked.
LED is ON when OUT1 is used in IO-Link mode. (LED is OFF in SIO mode)
