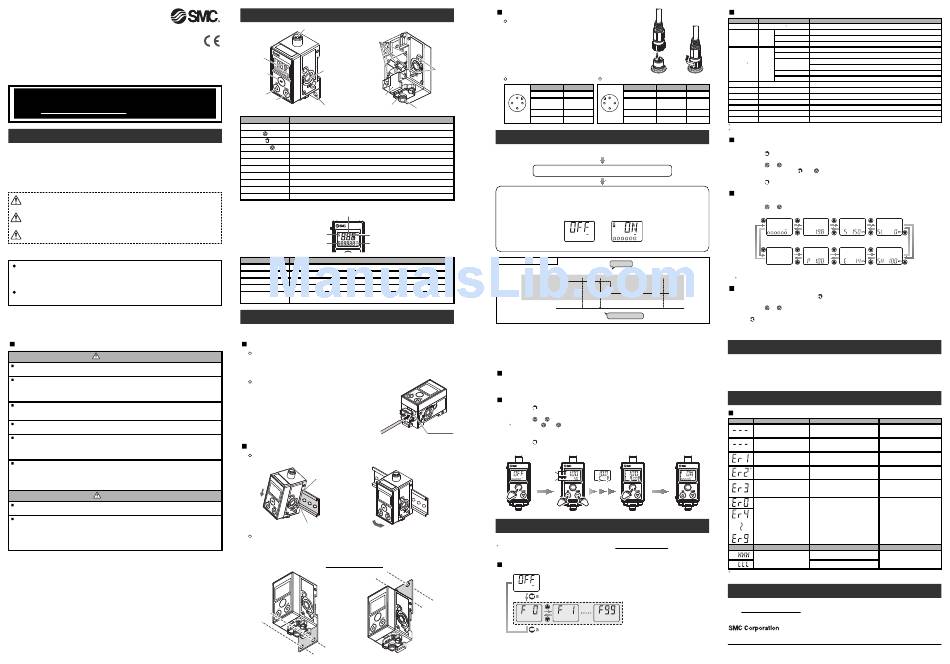

SMC Networks ISA3 Manual

Before Use
Gap Checker
ISA3
Thank you for purchasing an SMC ISA3 series Gap Checker.
Please read this manual carefully before operating the product and make sure you
understand its capabilities and limitations. Please keep this manual handy for
future reference.
To obtain the operation manual about this product and
control unit, please refer to the SMC website
(URL http://www.smcworld.com) or contact SMC directly.
Safety Instructions
These safety instructions are intended to prevent hazardous situations and/or
equipment damage.
These instructions indicate the level of potential hazard with the labels of
"Caution", "Warning" or "Danger". They are all important notes for safety and must
be followed in addition to International standards (ISO/IEC) and other safety
regulations.
Caution:
CAUTION indicates a hazard with a low level of risk which, if
not avoided, could result in minor or moderate injury.
Warning: WARNING indicates a hazard with a medium level of risk
which, if not avoided, could result in death or serious injury.
Danger: DANGER indicates a hazard with a high level of risk which, if
not avoided, will result in death or serious injury.
Operator
The operation manual is intended for those who have knowledge of machinery
using pneumatic equipment, and have sufficient knowledge of assembly,
operation and maintenance of such equipment. Only those persons are
allowed to perform assembly, operation and maintenance.
Read and understand the operation manual carefully before assembling,
operating or providing maintenance to the product.
Safety Instructions
Warning
Do not disassemble, modify (including changing the printed circuit board) or repair.
An injury or failure can result.
Do not operate the product outside of the specifications.
Do not use for flammable or harmful fluids.
Fire, malfunction, or damage to the product can result.
Verify the specifications before use.
Do not operate in an atmosphere containing flammable, explosive or corrosive gas.
Fire or an explosion can result.
This product is not designed to be explosion proof.
Do not use the product in a place where static electricity is a problem.
Otherwise it can cause failure or malfunction of the system.
If using the product in an interlocking circuit:
•Provide a double interlocking system, for example a mechanical system
•Check the product regularly for proper operation
Otherwise malfunction can result, causing an accident.
The following instructions must be followed during maintenance :
•Turn off the power supply
•Stop the air supply, exhaust the residual pressure and verify that the air is released before performing
maintenance work
Otherwise an injury can result.
Caution
Do not touch the terminals and connectors while the power is on.
Otherwise electric shock, malfunction or damage to the product can result.
After maintenance is complete, perform appropriate functional inspections and leak tests.
Stop operation if the equipment does not function properly or there is a leakage of fluid.
When leakage occurs from parts other than the piping, the product might be faulty.
Disconnect the power supply and stop the fluid supply.
Do not apply fluid under leaking conditions.
Safety cannot be assured in the case of unexpected malfunction.
Summary of Product parts
Connector
Bracket
mounting
hole
Display
SUP port
SET button
UP button
DIN rail mount
DOWN button
Atmospheric vent port
Bracket
OUT port
Element Description
Display See below.
Selects the mode and the display shown on the Sub display, or increases the switch point.
UP button ( button)
Press this button to change the mode and to set the switch point.
SET button ( button)
Selects the mode and the display shown on the Sub display, or decreases the switch point.
DOWN button ( button)
Connector Electrical connection.
SUP port (Supply port) Port to supply pressure.
Bracket mounting hole Used to attach the bracket to the product.
Tie rod holes Used to connect additional products.
OUT port (Detection port) Port to be connected to the detection nozzle.
Atmospheric vent port Port to vent exhaust air to the atmosphere.
DIN rail mount Used to mount the product on a DIN rail.
Display
Main display
Operation LED Key-lock indicator
Sub screen Unit indicator (pressure)
Element Description
Main display ON/OFF, display value during setting and error code are displayed. (2 colour display)
Operation LED Indicates the switch output status. Turns ON (orange) when the switch output is ON.
Sub screen Level meter, display value, switch point, pressure etc. are displayed.
Key-lock indicator Turns ON when keys are locked.
When pressure is displayed on the sub screen, this indicates the pressure unit currently
Unit indicator (pressure)
selected.
Mounting and Installation
Piping
SUP port (supply port) and OUT port (detection port)
•Use the correct tightening torque. (Appropriate tightening torque (Rc1/8 • G1/8): 7 to 9 Nm)
•For ø6 one-touch fitting, use tube with O.D. 6 mm, and I.D. 4 mm.
•For ø4 one-touch fitting, use tube with O.D. 4 mm, and I.D. 2.5 mm.
Atmospheric vent port
•Connect tubing (sold separately) to the atmospheric
vent port if there is a possibility that the port could be
blocked by water or dust.
•Recommended tube is TU0425 (material: polyurethane,
O.D. ø4, I.D. ø2.5) made by SMC.
•The other end of the air tubing should be routed to a
safe place to prevent it from being exposed to water
or dust.
•Ensure the tubing has no sharp bends.
Installation
DIN rail
•Hook the claw part 1 to the DIN rail. •Push the claw part 2 down until it clicks.
Claw1
Claw2
Bracket
•Mount the bracket to the product using the mounting screws (3 pcs.).
•The tightening torque of the mounting screw must be 0.45 Nm ±10%.
•When the product is mounted using the bracket, fix with M5 screws (2 pcs.) or equivalent.
•Bracket thickness is approx. 1.6 mm.
•Refer to the SMC website (URL http://www.smcworld.com) for mounting hole dimensions.
Wiring
Mounting and removal of connector
•Align the body connector key and the cable connector key
groove to insert vertically.
•Turn the knurled part of the cable sideconnector
clockwise.
•Connection is complete when the knurled part is fully
tightened.
Check that the connection is not loose.
Tie rod
holes
Connector pin No. (Body side) Connector pin No. (Cable side)
Connector pin No. Description
2
1 DC(+)
1 output: N.C.
3 1 2 1
2 outputs: OUT2
3 DC (-)
4
4 OUT1
Switch Point Setting
Power is supplied
The identification code of the product is displayed.
Measurement mode
Measurement mode starts automatically when supply pressure is
between 80 and 220 kPa.
Switch status ON or OFF will be displayed on the main screen.
Level meter will be displayed on the sub screen.
OFF displayed
Example: Switch output
20
ON
Switch output
OFF
Display value
Small 50
(Close) P_1
The switch output turns ON when the display value is less than switch point.
(Solid line in the chart)
The switch output turns OFF when the display value is greater than the switch point added
to the hysteresis value. (Dashed line in the chart)
Preparation before setting
(1)Supply pressure to the product.
(2)Place the workpiece on the detection nozzle.
Operation
(1)Press the button while in measurement mode, the display value will be displayed in
the main screen and the switch point in the sub screen.
(2)Press the or buttons to adjust the switch point value.
Atmospheric : Pressing the and buttons simultaneously for a minimum of 1 second, then releasing the
vent port
buttons when the displayed switch point value disappears, will make the switch point the same
as the current display value. (Snap shot function)
(3)Press the button to complete the switch point setting. The product will return to
measurement mode.
Display value
Switch point
value
Function setting
To change functions, use Function selection mode.
: Refer to the operation manual from SMC website (URL http://www.smcworld.com) for information
about Function selection mode.
Operation
Measurement mode
2 secs.
2 secs.
Table of default settings
Function number Function name
F 0 Unit selection
1
Switch point
OUT1
F 1 Hysteresis
setting
Display colour
Output mode
Reversed output
OUT2
F 2 2 Pressure setting
setting
Hysteresis
Response time
F 6 Display value compensation
Connector pin No. Description Cable colour
F10 Sub screen
2
1 DC(+) Brown
F80 Power saving mode
1 output: N.C.
F81 Security code
3 2 White
2 outputs: OUT2
F90 Setting of all functions
3 DC (-) Blue F98 Forced output
4
F99 Reset to default settings
4 OUT1 Black
1: This setting is only abailable for models with the unit selection function.
2: When 2 outputs type is selected.
[F99]Reset to default settings
The product can be returned to its factory default settings.
(1)Press the button when [F99] is displayed. [ini] is displayed on the main screen,
[oFF] on the sub screen.
(2)Press the or button to display [ on].
(3)Press and hold both the
[F99] will be displayed (Complete the reset to default settings).
(4)Press the button for 2 seconds or longer to return to measurement mode.
Display of sub screen
In measurement mode, the display of the sub screen can be temporarily changed by
pressing the or buttons. 30 seconds after changing, the display will automatically
return to the screen set in [F10] of Function selection mode.
Level meter
ON displayed
Hysteresis
Display OFF
: Display for 2 outputs type only.
Key-Lock
(1)In measurement mode press the
displayed on the sub screen.
(2)Press the or button to display [LoC].
large
(3)Key-Lock is confirmed and the product returned to measurement mode by pressing
Switch point value
(Far)
the button.
Maintenance
How to reset the product after a power cut or forcible de-energizing
The setting of the product will be retained as it was before a power cut or de-energizing.
The output condition is also basically recovered to that before a power cut or de-energizing,
but may change depending on the operating environment.
Therefore, check the safety of the whole installation before operating the product.
Troubleshooting
Error indication
Main display Name
Supply pressure error
Display value is outside the
displayable range
(switch point setting mode)
OUT1 over current error
OUT2 over current error
Zero clear error
System error
Main display Name
Supply pressure error
(When pressure value is
displayed in the sub screen)
: Display for 2 outputs type only.
Specifications / Dimensions
Refer to the product catalogue or operation manual from SMC website
(URL http://www.smcworld.com) for more information about the product specifications and
Function selection mode
dimensions.
∗: The sub screen displays
[ the function name ] and [ set value ] alternately.
URL http://www.smcworld.com
Akihabara UDX 15F, 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021, JAPAN
Phone: +81 3-5207-8249 Fax: +81 3-5298-5362
Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer.
© 2013-2018 SMC Corporation All Rights Reserved
Default setting
[ PA] kPa
ISA3-F: [ 20], ISA3-G: [ 50], ISA3-H: [ 50]
ISA3-F: [ 3], ISA3-G: [ 20], ISA3-H: [ 20]
[ SoG] Green when ON, Orange when OFF
out2 : [ Ewin] OUT port side pressure detection window comparator mode
2ot : [ 2_P] Normal output
EPL : [ 25] kPa
EPH: [ 50] kPa
EH : [ 5] kPa
rES : [ 1000]
[ 0.0] Compensated value: 0.0
[LEvEL] Level meter
[ ON] Normal operation
[ OFF] OFF
[ OFF] OFF
[normAL] Not forced output
[ OFF] Reset OFF
and buttons for 5 seconds or longer.
Display value SUP port side SUP port side
pressure bottom value ∗
OUT1: Switch OUT port side SUP port side
point value pressure peak value ∗
button for 5 seconds or longer, [UnLoc] will be
Description Measures
Displayed when supply pressure is
Supply rated pressure.
not in the range 80 kPa to 220 kPa.
(100 kPa to 200 kPa)
Measurement is not possible.
The workpiece is outside the Move the workpiece closer to the
displayable range. detection nozzle.
Turn the power off and remove
The switch output (OUT1) load
the cause of the over current.
current has exceeded 80 mA.
Then turn the power on again.
Turn the power off and remove
The switch output (OUT2) load
the cause of the over current.
current has exceeded 80 mA.
Then turn the power on again.
Zero clear was performed in
non-atmospheric pressure. Perform zero clear at
(Pressure outside of ±14 kPa was atmospheric pressure.
supplied at factory default settings.)
Turn the power off and turn it on
An internal data error has occurred.
again.
Description Measures
Pressure exceeding 220 kPa is
Keep the supply pressure within
supplied.
the displayable range of -22 kPa
Vacuum pressure (-22 kPa or less) is
to 220 kPa.
supplied.
PS※※-OMQ0004-B
