■Installation
∗: Connect piping before mounting to the DIN rail or bracket.
(1) If the piping is connected while the product is mounted on a bracket or DIN rail, the bracket or DIN rail
might be bent.
(2) If the piping is connected while the display is held with a vice, the display might be damaged.
(3) If a tool comes into contact with the boss, it might be broken. Therefore, connect the piping carefully.

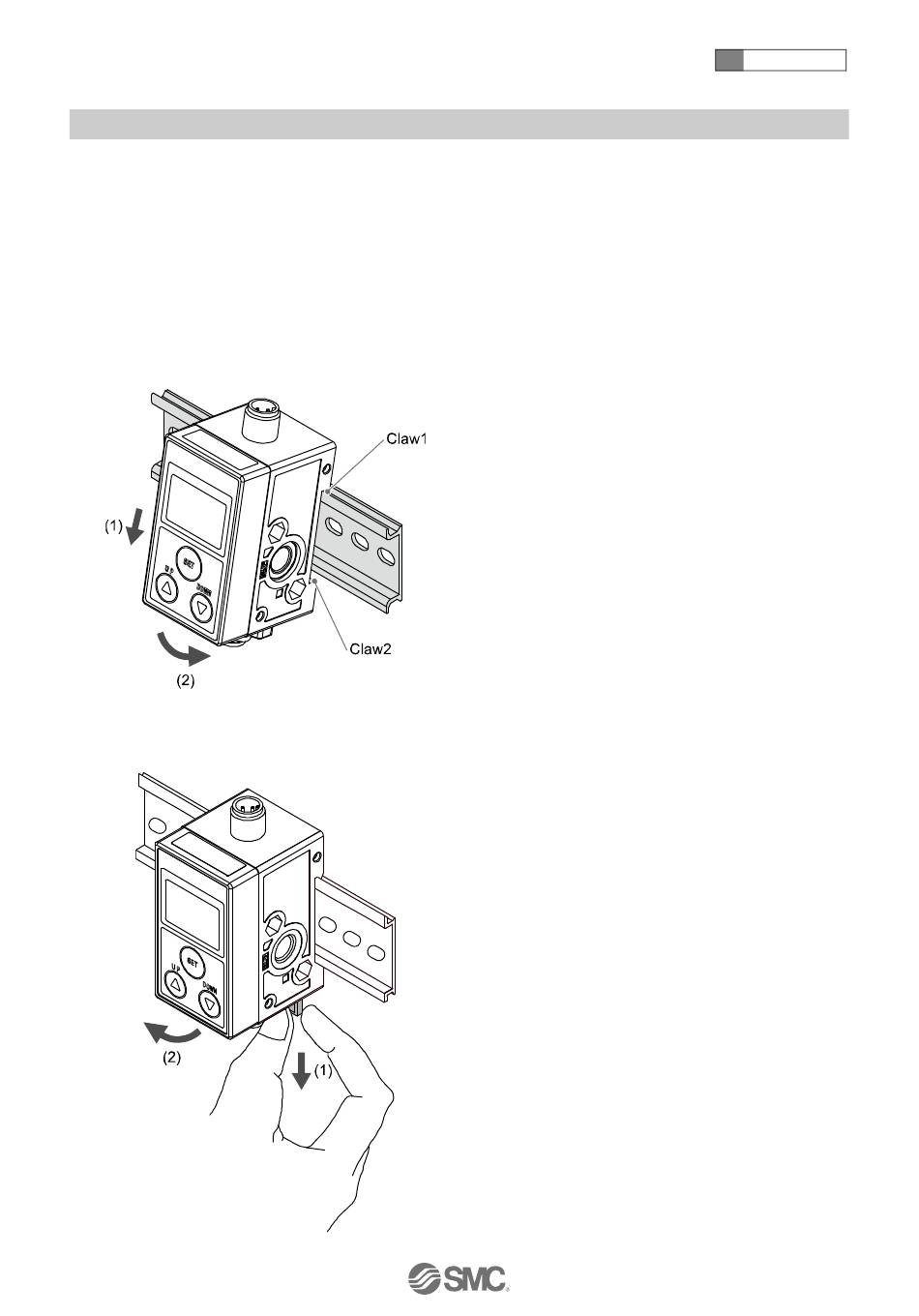

○DIN rail
Mounting
(1) Hook the claw part 1 to the DIN rail.
(2) Push the claw part 2 down until it clicks.
Removal
(1) Pull the DIN rail mounting latch downward for unlocking.
(2) Pull out the OUT port (detection port) side.
