Fastlane Pro Swim Unit Installation
®
ELECTRICAL REQUIREMENTS FOR THE UK (50HZ)
Section 1 1B
IMPORTANT NOTE: The following instructions are intended for Single Phase equipment. If Three
D
W
Phase equipment was ordered, refer to the Three Phase Equipment Supplemental Guide at this time.
A Residual Current Device (RCD) is required for this product. An RCD is a device that shuts off an electri-
cal circuit when it detects that electricity is flowing along an unintended path. The path could be through a
person or water. The RCD must have a rated residual operating current not exceeding 30mA. The purpose
of this device is to reduce the chance of electrical shock. The MCB (breaker) that operates the Hydraulic
Power Unit must be C-type, D-type, or motor rated. The Hydraulic Power Unit requires one single phase
220v 32amp RCD protected service. All connections should be made by a licensed electrician.

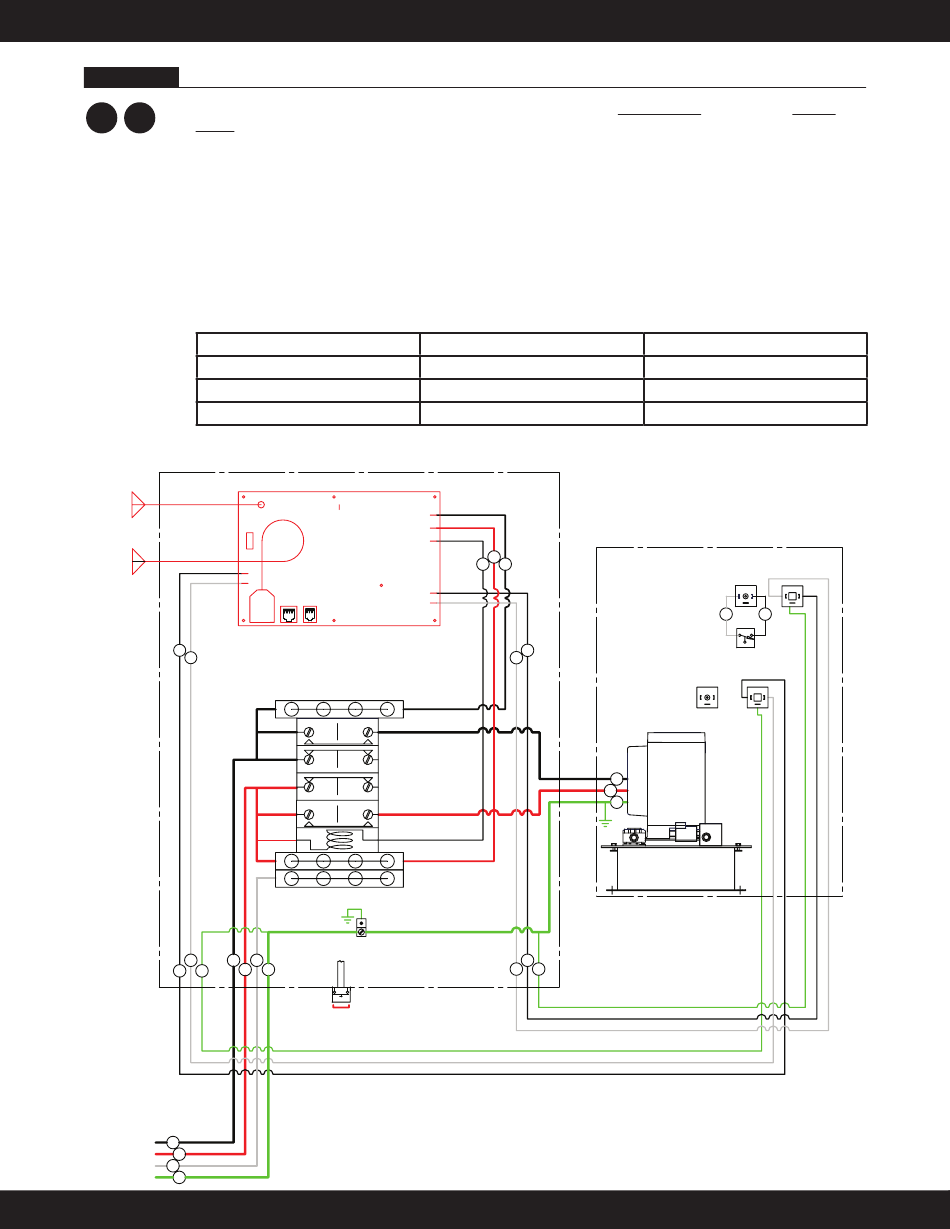

United States wire color-coding is different than international color-coding. The following chart identifies
the color-coding used in the United States as it relates to the wire type. In addition, the wires of the control-
ler have a short, colored sleeve wrapped around them to conform to the international color codes.
RF
Antenna
Wifi
Antenna
B
W
W
B G/Y
Single
Line 1
B
Phase Neutral
R
Spare
Input
W
Ground
G/Y
37
Wire Color
Black with Brown Sleeve
Red with Blue Sleeve
Green with Green/Yellow Sleeve
EP3 CONTROLLER
ANT1
LEARN
AUX
(NEUTRAL) LINE 2 IN
SWITCHED OUT
SOL +
SOL -
KEYPAD
WIFI
DISPLAY
Contactor and
Terminal Blocks
2T1
1L1 NO
4R2 3R1 NC
6R4 5R3 NC
8T3 7L3 NO
A2 A1
GROUND
B W
R G/Y
LEARN SW
(and countries with similar electrical requirements)
US Wire Type (60Hz)
Hot or Live (120v)
Hot or Live (120v)
Ground
LINE 1 IN
R
B B
OIL SIG -
OIL SIG +
B
W
Line 1
Line 2
Ground
B
W G/Y
Int. Wire Type (50Hz)
Hot or Live (220v)
Neutral
Earth
HYDRAULIC POWER UNIT
Float
Level
B
W
Switch
Proportional
Valve
B
R
G/Y
Hydraulic Power
Unit (HPU)
