Fastlane Pro Swim Unit Installation
®
Section 5 JUNCTION BOX AND 1/2" RUN HOSES (OPTIONAL)
The wall mount bracket must be attached on the pool wall as explained in the installation instructions in
W
Section 4. Attached to this bracket are two (2) lengths of 1-1/2" (38mm) PVC flex pipe that run under the
deck and carry two (2) hydraulic sub hoses.
If the hydraulic hose runs to the Power Unit are less than 25' (7,6m), the hydraulic sub hoses from the
Fastlane Pro can run directly to the Power Unit in the protective conduit.
If the hydraulic hose runs are greater than 25' (7,6m), a step up to larger diameter hydraulic run hoses is
necessary to reduce pressure loss and a potential reduction in performance. It is at the junction box where
these hose connections occur. The hydraulic sub hoses from the Fastlane Pro to the junction box are 3/8"
(9,5mm) and the run hoses from the junction box to the Power Unit are 1/2" (13mm). The junction box
MUST be above the pool's water level to avoid drainage of overfull pool water through the PVC conduit.
Access to the junction box MUST be maintained for future maintenance.
Junction Box Kit (optional) includes:
(1) Junction Box
(4) 1-1/2" (38mm) FSlip x 1-1/2" (38mm) MPT Adapters
(4) 1-1/2" (38mm) Conduit Locknuts
(1) Roll of Anti-Corrosion Tape
5.1 The 1-1/2" (38mm) PVC flex pipe will need to be cut to 24' 6" (7,5mm) from the wall mount bracket to
5.2 Glue the 1-1/2" (38mm) FSlip x MPT Adapter fittings on the end of the PVC flex pipe that will
5.3 To get from the junction box to the Power Unit, run 1-1/2" (38mm) PVC flex pipe.
5.4 Measure the length of PVC flex pipe. The run hoses will need to be AT LEAST 4' (1,22m) longer than
5.5 Adapters to connect the run hoses to the sub hoses have been provided. They can be found in the run
5.6 For extra protection, use the provided Anti-Corrosion tape to wrap the adapters and hose fittings.

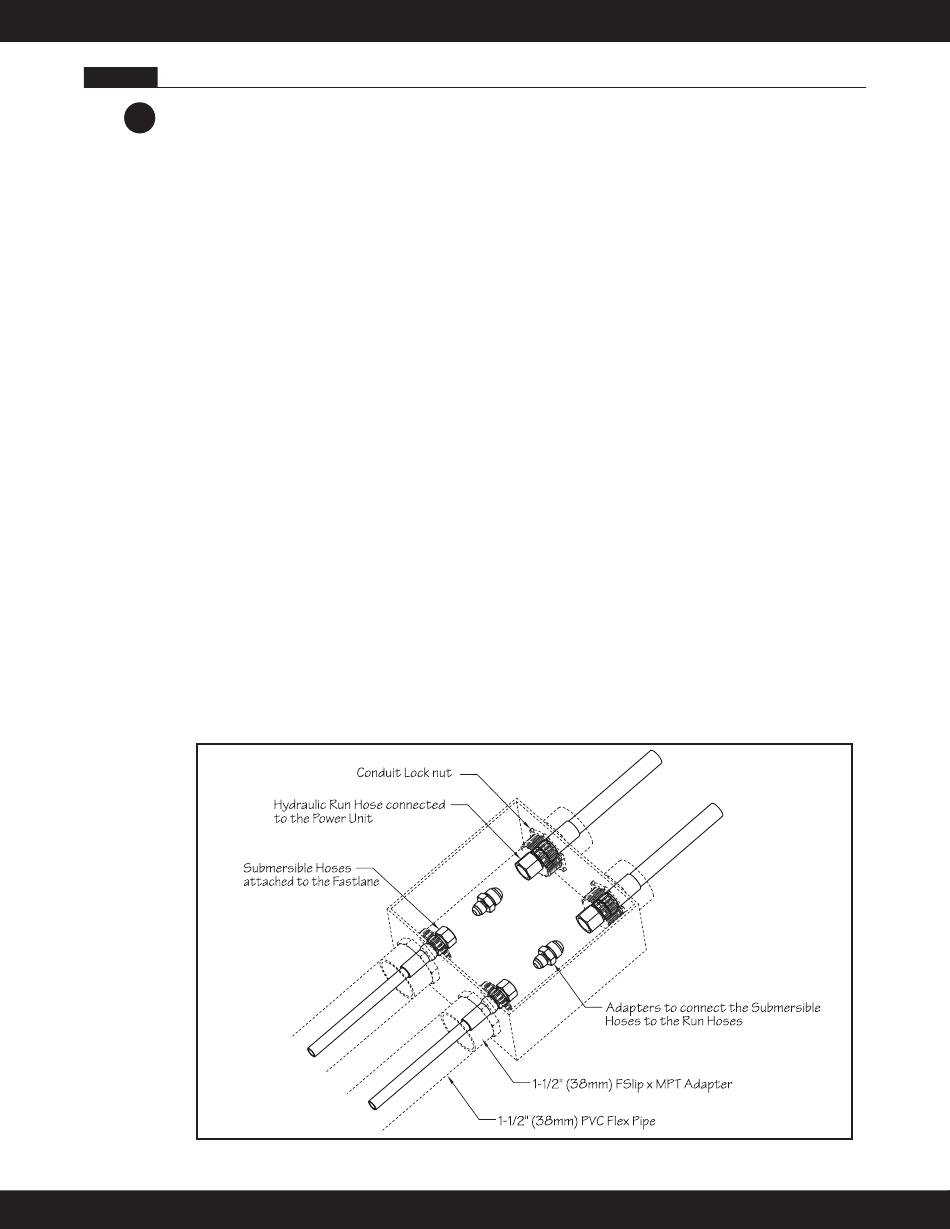

Fig. 5
27
the junction box.
connect to the junction box. Secure the fittings to the junction box with the provided lock nuts.
Unroll the two (2) lengths of PVC flex pipe from the junction box to the Power Unit. The PVC flex pipe
should exit the ground next to the Power Unit.
the length of the PVC flex pipe. Order your 1/2" (13mm) run hoses at this time by calling our Customer
Service Department at 800-910-2714.
hose kit box and will be attached at a later step (see section 7).
