Endless Pools FASTLANE PRO Owner's Manual page 21

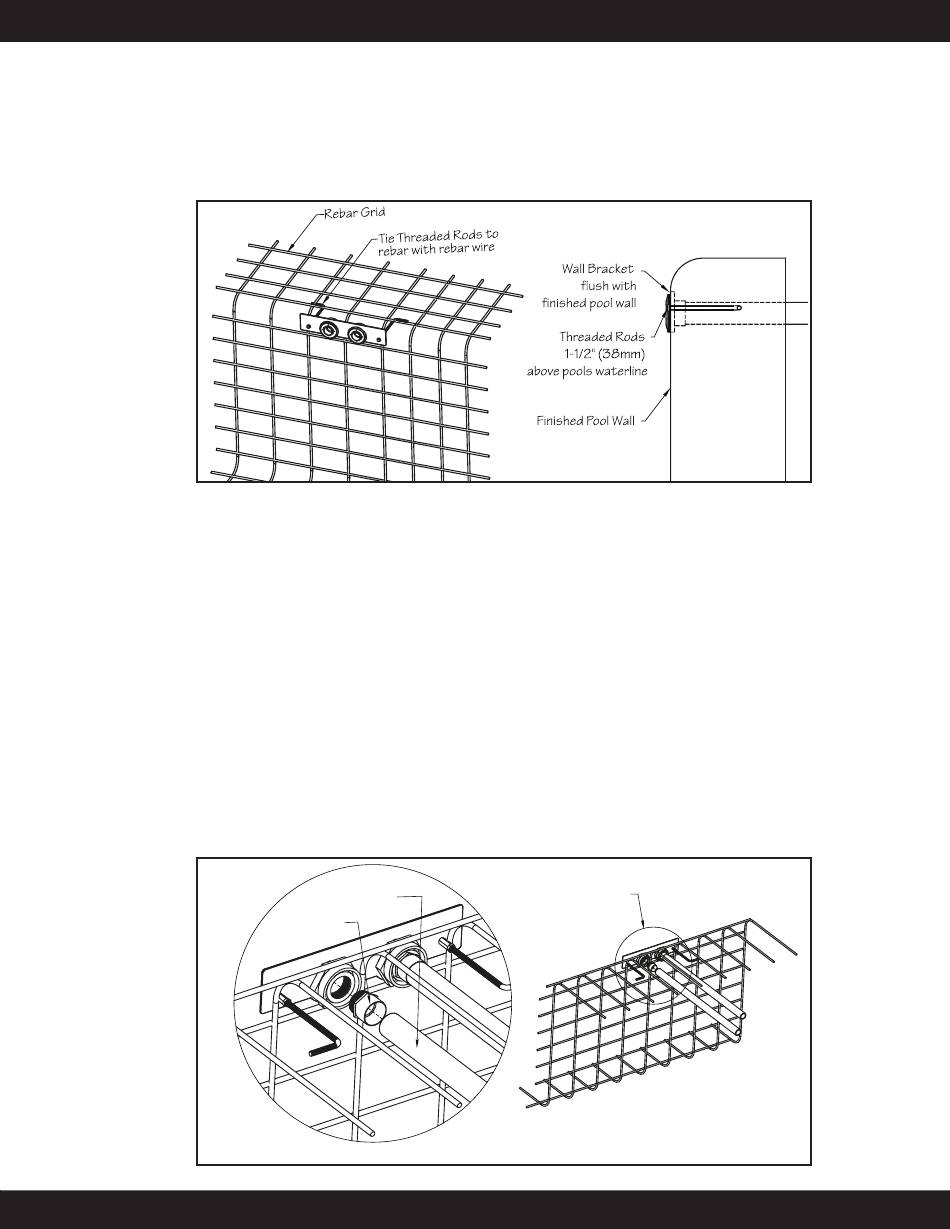

The bracket is to be installed into the pool wall so that the two threaded rods are 1-1/2" (38mm) above the
intended waterline, which is typically halfway up the skimmer. The bottom straight edge of the bracket should
be aligned with the expected waterline. Level and position the bracket so that the PVC surface of the bracket
will be flush with the finished surface of the pool wall. The threaded rods attached to the bracket must be tied
back to the rebar of the pool with rebar wire. Once encased in concrete, these rods will serve as a suitable
hanger. The threaded rods must penetrate 1-1/4" to 1-1/2" (31,8mm x 38mm) into the finished pool and will be
used to hang the Fastlane Pro (Fig 4.18).
Fig. 4.18
The location of the Hydraulic Power Unit should be determined at this point in the installation. Unroll lengths of
1-1/2" (38mm) flexible PVC pipe from the back of the wall mount bracket to the Power Unit. Any bends in the
flexible pipe MUST be gradual sweeps and not sharp to allow the hydraulic hoses to easily be fed through each
conduit.
If the Hydraulic Power Unit is within 25' (7,6m) of the pool: Each length of flexible pipe should exit the
ground within 4' (1,2m) of the Power Unit. Approximately 4' (1,2m) of hydraulic hose is required to make the
hydraulic connections at the Power Unit.
If the Hydraulic Power Unit is more than 25' (7,6m) away from pool: 25' (7,6m) of flexible pipe, a junction
box, and an additional length of flexible pipe MUST be employed. It is at the junction box where a step up to a
larger diameter hydraulic hose occurs to reduce pressure loss and a potential reduction in performance. In this
case, the length of flexible pipe between the wall mount bracket and junction box MUST be 24' 6" (7,5m). This
will allow the hydraulic hoses to terminate just inside the junction box. An additional length of flexible pipe
coming out of the junction box should exit the ground within 4' (1,2m) of the Power Unit. See Section 5: Junction
Box for detailed information.
Apply Teflon thread sealant to the threads of the 1-1/2" (38mm) MPT x FSLIP adapters and thread them into the
thru-wall fittings on the backside of the wall mount bracket. Glue the flexible pipe into the adapters (Fig. 4.19).
1-1/2" (38mm)
PVC Flex Pipe
1-1/2" (38mm)
MPT x FSlip
Adapter
DETAIL A
Fig. 4.19
Adapter and Flex Pipe
(See Detail A)
Fastlane Pro Swim Unit Installation
®
20
