DECK MOUNT FASTLANE PRO INSTALLATION

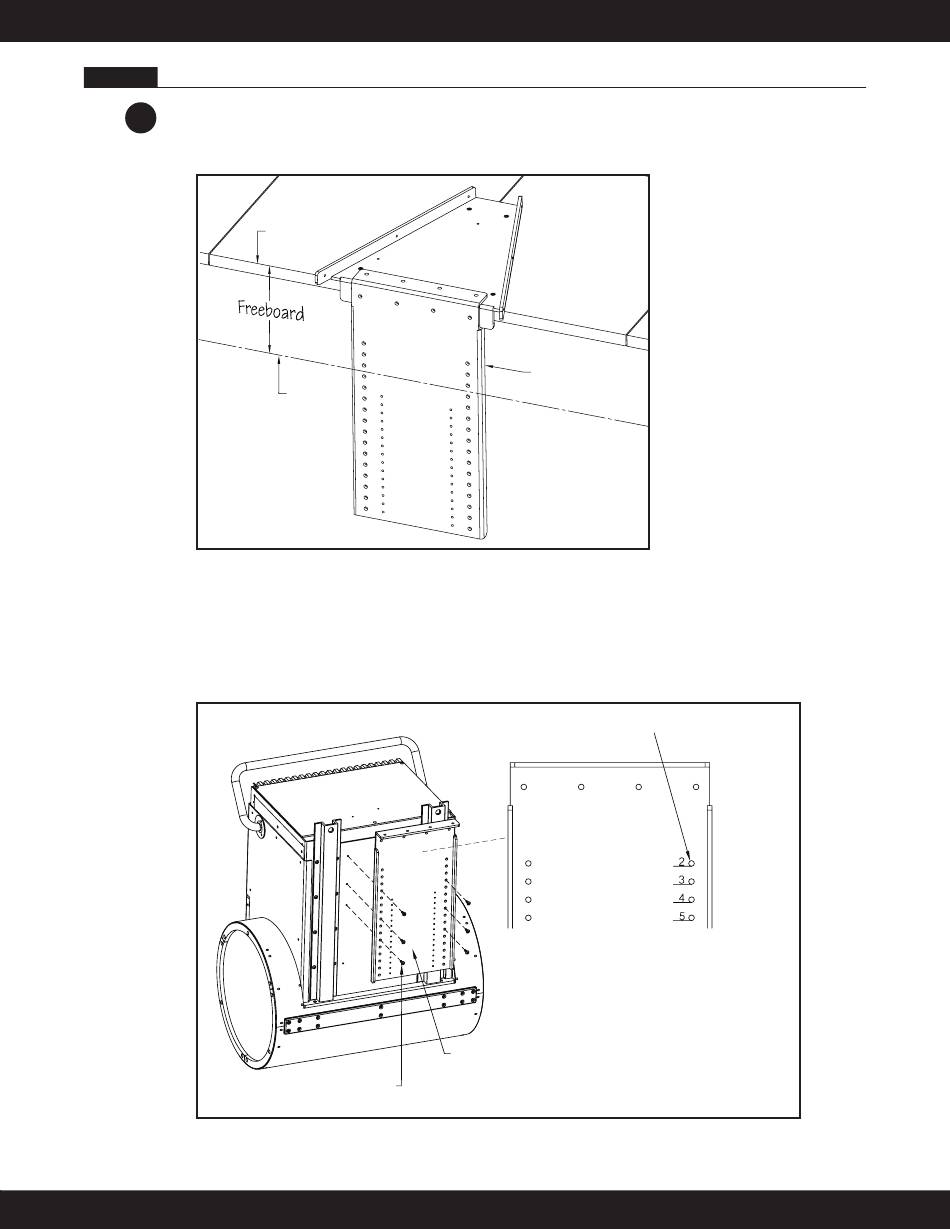

9.1 Loosely secure the hanger bracket to the hose cover tray with one of the provided 1/2" (13mm) screws.

Measure down from the top of the hanger bracket to the water line to capture the freeboard

measurement. Once the measurement has been taken, remove the hanger bracket (Fig. 9.1).

Coping

Fig. 9.1

9.2 Carefully lay the Fastlane Pro down on its front face. There are six pre-drilled holes in the center of the

housing assembly between the hat sections. Align the top set of holes with the appropriate number hole

in the hanger bracket (if the freeboard is 5" (12,7cm) then align the #5 holes with the top holes in the

housing). When the hanger bracket is positioned on the housing, use the provided 3/4" (19mm) screws

to attach (Fig. 9.2).

3/4" (19mm) Phillips

Truss Head Screw x6

Fig. 9.2

Waterline

Hanging Bracket

The numbers etched in

bracket equal freeboard

height in inches

Fastlane

Pro Swim Unit Installation
