Multi Meter
Bonding
Connection
1) A ach stainless steel "Bonding Test Wire" to the bonding lug located on the hydraulic power unit.
2) Run the test wire across the pool deck to the Fastlane Pro bonding connections. For Wall Mount units,
the connections will be at the threaded mounting rods under the top lid (as shown). For Deck Mount
units the connections will be under the deck plate cover.
3A) Set the multimeter to resistance (continuity ). Place one test lead on the test wire and the other
test lead on the bonding connection points (where the #8 solid insulated copper wires from the Fastlane
Pro are a ached). Refer to Test Results Below.
3B) Run test wire to the existing pool equipment (pump, heater, ladder, etc) to test continuity between
the hydraulic power unit and pool equipment. Place one test lead on the test wire and the other
test lead at the bonding connection at the pool equipment. (Refer to Test Results Below)
Test Results:
Continuity = Properly Bonded Unit
No Continuity / Open Line = Improper Bonding OR Disconnected Bonding Circuit. This requires
repair prior to using the FastLane Pro.

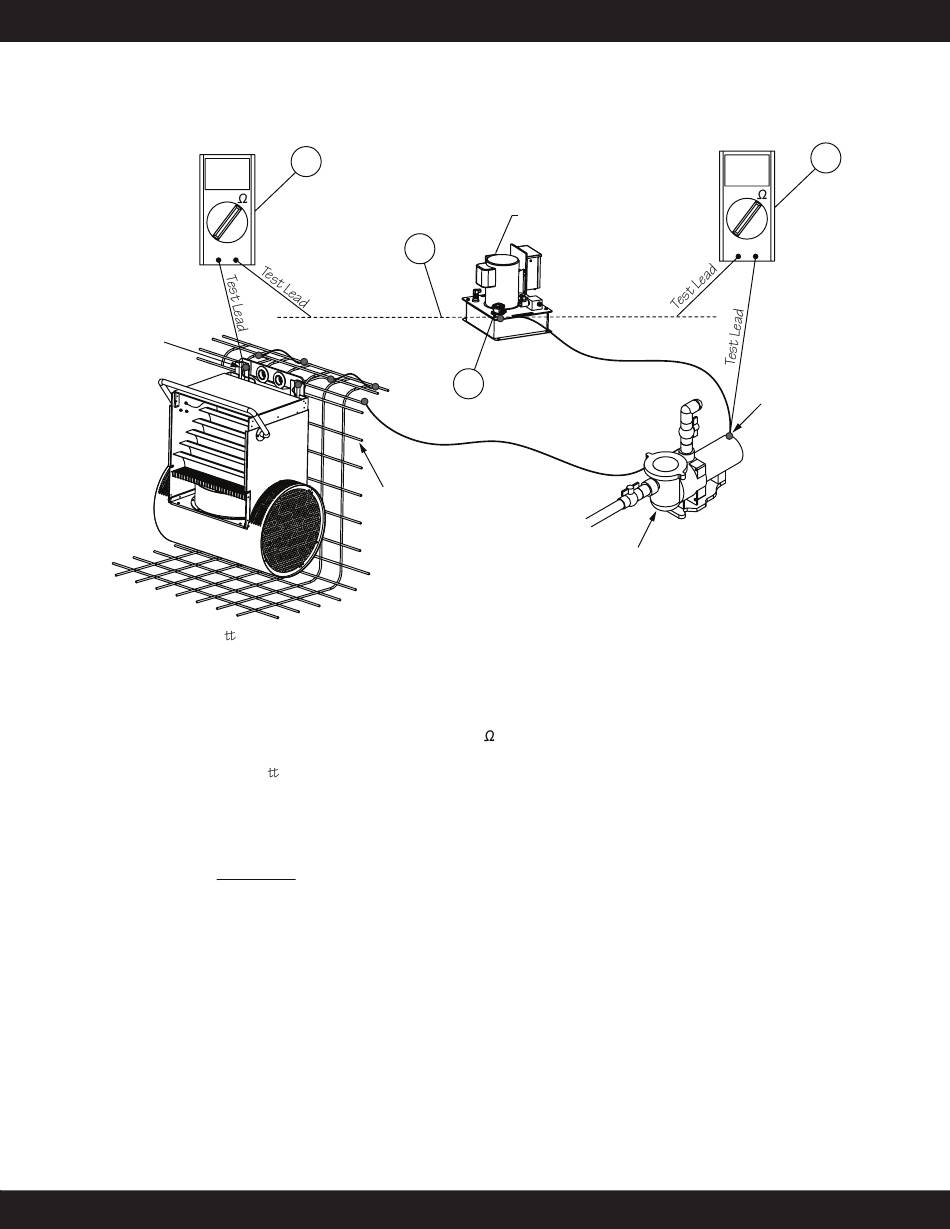

Fig. 13.3
Testing Fastlane Pro Bonding
3A
2
Bonding Test Wire
1
Metal Reinforcement /
Pool Bonding Grid
Hydraulic Power Unit
Bonding Test Wire
Pool Equipment
Fastlane
Pro Swim Unit Installation
®
Multi Meter
3B
Bonding
Connection
42
