Section 11B ELECTRICAL REQUIREMENTS FOR THE UK (50HZ)
The unique design of the Fastlane Pro facilitates sales to UK and international customers. The Fastlane
Pro is shipped in kit form for easy assembly and installation into any new conventional pool following the
detailed instructions provided.
The Fastlane Pro is ETL marked and CE listed.
A Residual Current Device (RCD) is required for this product. An RCD is a device that shuts off an electri-
cal circuit when it detects that electricity is flowing along an unintended path. The path could be through a
person or water. The purpose of this device is to reduce the chance of electrical shock. The RCD must have
a rated residual operating current not exceeding 30mA. The MCB (breaker) that operates the Hydraulic
Power Unit must be C-type, D-type, or motor rated. The Hydraulic Power Unit requires one single phase
220v 32amp RCD protected service. All connections should be made by a licensed electrician.

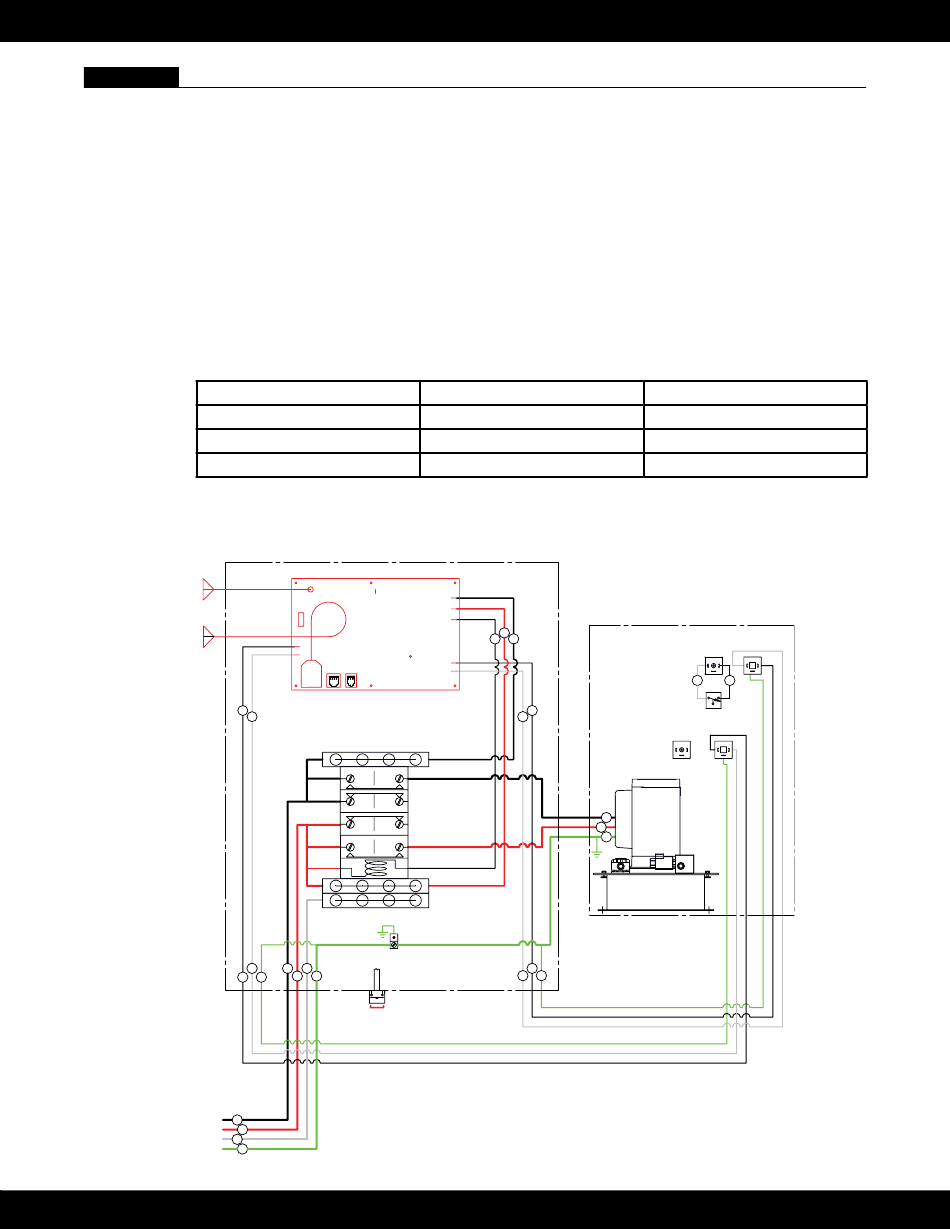

United States wire color-coding is different than international color-coding. The following chart identifies
the color-coding used in the United States as it relates to the wire type. In addition, the wires of the control-
ler have a short, colored sleeve wrapped around them to conform to the international color codes.
Black with Brown Sleeve
Red with Blue Sleeve
Green with Green/Yellow Sleeve
Should you have any questions, please call the Customer Service Department at 800-910-2714 (US), 0800-
520-0196 (UK) or 610-497-4538 (Direct), or email us at poolhelp@endlesspools.com.
