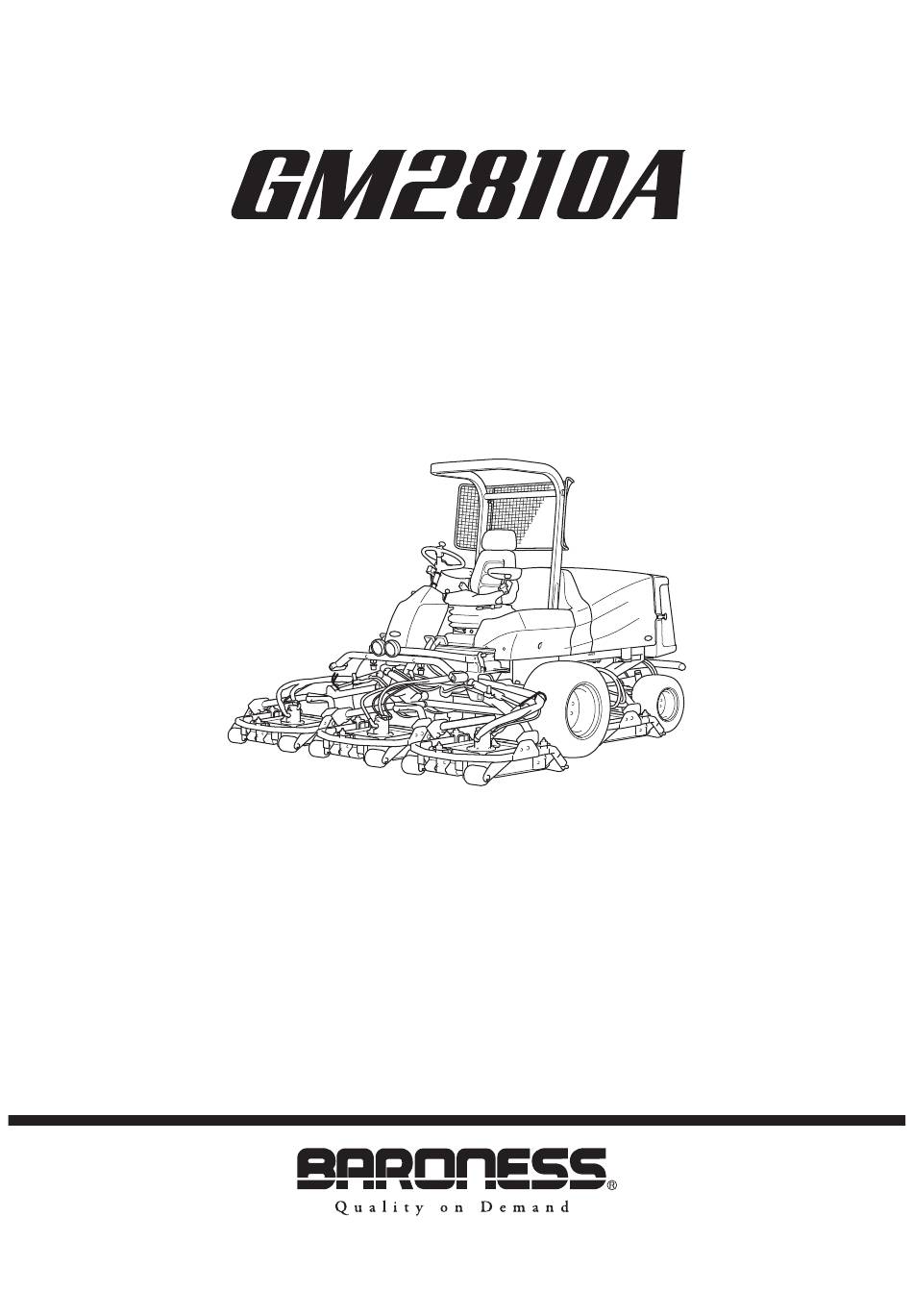

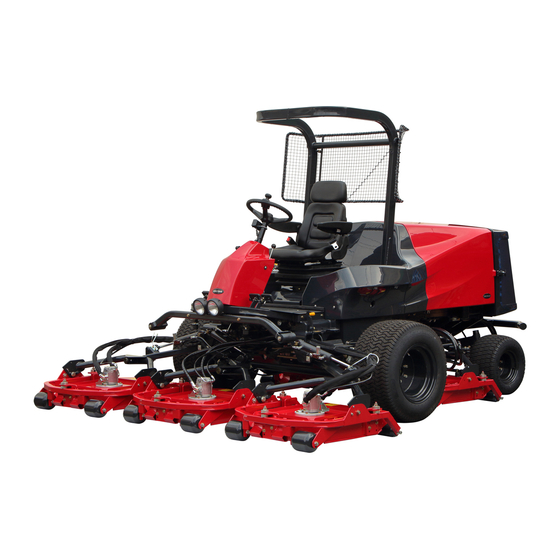

5-Unit Rotary Mower
Owner's Operating Manual
Serial No.
GM2810A：11248-
"Required reading"
Read this manual before using the machine.
Original Instructions Ver.1.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GM2810A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baroness GM2810A

Summary of Contents for Baroness GM2810A

  • Page 1 5-Unit Rotary Mower Owner's Operating Manual Serial No. GM2810A：11248- "Required reading" Read this manual before using the machine. Original Instructions Ver.1.5...
  • Page 2 GM2810A Regulations California Proposition 65 EU Emission Control (StageⅤ) (For California, USA) (For Europe) Important WARNING: No deliberate tampering with or misuse of the Operating, servicing and maintaining engine emissions control system should take a passenger vehicle or off-road place.
  • Page 3 GM2810A Greeting Thank you for purchasing the Baroness product. QR Code This manual describes the proper handling, adjustment, and inspection of your product. A QR code label is affixed on the machine. We hope you will use the product safely, and take advantage of its best performance.
  • Page 4 The operator is responsible for operating the product properly and safely. Maintenance service for this machine should be performed by a mechanic with expertise. If you have any questions concerning maintenance or genuine parts, please contact a Baroness dealer or Kyoeisha.
  • Page 5 When replacing parts, be sure to use genuine Baroness parts or parts designated by Kyoeisha. Note that the Baroness product warranty may not apply to defects caused by the use of parts from other companies. Prior to use, carefully read the following manuals to thoroughly understand the contents for safe and correct operation.
  • Page 6 GM2810A Introduction...

  • Page 7: Table Of Contents

    GM2810A Contents Safety .............. Page 1-1 Transporting ..........Page 5-22 Maintenance ........... Page 6-1 Safe Operating Practices .......Page 1-2 Disposal ............Page 2-1 Precautions for Maintenance ......Page 6-2 Jacking Up The Machine ....... Page 6-2 Recycle and Waste Disposal ......Page 2-2 Greasing ............
  • Page 8 GM2810A Contents...

  • Page 9: Safety

    GM2810A Safety Safe Operating Practices ...... Page 1-2 Training ..........Page 1-2 Preparation ..........Page 1-2 Operation ..........Page 1-3 Maintenance .......... Page 1-4 Storage ..........Page 1-5 Page 1-1...

  • Page 10: Safe Operating Practices

    GM2810A Safety Failure to adequately follow these safety Never allow children or people unfamiliar precautions may cause an accident resulting in with these instructions to use or service the injury or death. machine. Local regulations may restrict the age of the...

  • Page 11: Operation

    GM2810A Safety Add fuel before starting the engine. Never operate the machine with damaged Never remove the cap of the fuel tank or guards, shields, or without safety protective add fuel while the engine is running or devices in place.

  • Page 12: Maintenance

    GM2810A Safety Do the following before leaving the Maintenance operator's position. Never allow untrained personnel to service Stop on level ground. machine. Disengage the all drives. Implement the following work before Set the parking brake. adjusting, cleaning or repairing. Stop the engine.

  • Page 13: Storage

    GM2810A Safety Check whether line connectors in the Swallowing engine coolant can cause injury hydraulic system are properly tightened. or death; keep out of reach from children and Before applying hydraulic pressure, check pets. the connections of the hydraulic pressure lines and the condition of the hoses.
  • Page 14 GM2810A Safety Page 1-6 Safe Operating Practices...

  • Page 15: Disposal

    GM2810A Disposal Recycle and Waste Disposal ....Page 2-2 About Recycle ........Page 2-2 About Waste Disposal ......Page 2-2 Page 2-1...

  • Page 16: Recycle And Waste Disposal

    GM2810A Disposal Recycle and Waste Disposal About Recycle Recycling battery etc. is recommended for environmental conservation and economical use of resources. It may be required by local laws. About Waste Disposal Make sure that waste generated when servicing or repairing the machine is disposed of in accordance with local regulations.

  • Page 17: Product Overview

    GM2810A Product Overview Specifications ........Page 3-2 Specifications .........Page 3-2 Sound Pressure Level ......Page 3-3 Sound Power Level ....... Page 3-3 Vibration Level ........Page 3-3 Carbon Dioxide (CO2) Emissions ..Page 3-3 Names of Each Section ......Page 3-4 Regulation Decals ........Page 3-5...

  • Page 18: Specifications

    GM2810A Product Overview Specifications Specifications Model GM2810A Name 5-Unit Rotary Mower Total length 370 cm 145.67 in During 300 cm 118.11 in operation Total width During Dimensions 230 cm 90.55 in transport Roof 230 cm 90.55 in Total height Steering 165 cm 64.96 in...

  • Page 19: Sound Pressure Level

    GM2810A Product Overview The factory default maximum engine rpm is 2,600 rpm. Sound Pressure Level Sound Pressure Level This machine was confirmed to have a continuous A-weighted sound pressure level of 90dB by measuring identical machines in accordance with the procedure specified in ISO 5395-1:2013.

  • Page 20: Names Of Each Section

    GM2810A Product Overview Names of Each Section Seat Steering handle Tilt lever Diff-lock switch Parking brake lever Brake pedal Forward pedal Reverse pedal Mower deck up/down lever Throttle knob Knife rotation switch 2WD/4WD selector switch Fuel tank Hydraulic tank 11,12...

  • Page 21: Regulation Decals

    GM2810A Product Overview Regulation Decals Specification Decal (For Europe) Positions of Regulation Decals CE mark indicates that the machine sold in the EU nations complies with the EU requirements. The Specification decal indicates the CE marking, model , and weight, etc.
  • Page 22 GM2810A Product Overview Noise Emission Decal ROPS Caution Decal (For Europe) ROPS caution decal describes the following The noise emission decal indicates the sound caution messages. power level determined by measuring Replace damaged ROPS. ･ identical machines in accordance with the Do not repair or revise.
  • Page 23 GM2810A Product Overview (For USA) Spark Arrester Warning Decal (For the State of California, USA) Spark arrester warning decal describes the warning messages as required by California Public Resources Code. RECYCLE y7wov5-002 Recycle Decal_002 Battery Danger Decal (For USA) Battery Danger Decal describes handling bfaymx-001 precautions for battery.

  • Page 24: Safety Signs And Instruction Signs

    A0D6B73C Positions of Safety Signs and Instruction Signs_002 Part numbers for decals that need to be replaced are listed in the parts catalog. Order them from a Baroness dealer or Kyoeisha. Positions of Safety Signs and Instruction Signs 6iul4h-183...
  • Page 25 GM2810A Product Overview 6iul4h-055 6iul4h-184 Positions of Safety Signs and Instruction Signs_006 Positions of Safety Signs and Instruction Signs_010 Operation decal Engine start/stop decal Caution to mutilation decal Caution for high temperatures decal Caution to injury decal Caution to rotating object decal...

  • Page 26: Description Of Safety Decals And Instruction Decals

    Turn the key to the "ON (GLOW)" Warning position, and then wait for the logo "BARONESS" to be turned off. Apply the parking brake, stop the engine, Turn the key to the "START" position. remove the ignition key, and then leave the machine.
  • Page 27 GM2810A Product Overview Caution to Mutilation Decal Caution to Injury Decal K4205001600 K4205001580 DECAL, CAUTION TO MUTILATION Decal, caution to injure Warning Caution May cut your hand or leg - Stop the cutter May pinch - There is a risk of being pinched.
  • Page 28 GM2810A Product Overview Hydraulic Oil Icon Fire Prohibited Decal K4209000980 K4205001940 Hydraulic oil icon Decal, fire prohibited Read the Owner's Operating Manual. Warning Keep away from fire. i77xz6-001 Hydraulic Oil Icon_001 Diesel Fuel Icon r653fo-001 K4209001000 Fire Prohibited Decal_001 Diesel fuel icon Caution for Mower Lock Decal Use diesel fuel.
  • Page 29 GM2810A Product Overview Caution for Spouting Coolant Decal Caution to Flying Object Decal K4205001970 K4205001650 Decal, caution for spouting coolant Decal, caution to flying object Caution Caution Caution for spouting coolant - Do not open Caution to flying object - Be sure that people while hot.
  • Page 30 GM2810A Product Overview Caution Exhaust Gas Decal Maintenance Decal K4205001950 K4209001940 Decal, caution exhaust gas Maintenance decal The maintenance decal indicates the Warning necessary inspection and maintenance items for this machine. Caution for exhaust gas kvwx52-001 Caution Exhaust Gas Decal_001...
  • Page 31 GM2810A Product Overview 2WD/4WD Selector Important Decal Indicating Diesel Fuel Decal K4205002330 K4209001530 DECAL, IMPORTANT 2WD/4WD SELECTOR DECAL, INDICATING DIESEL FUEL Indicating diesel fuel decal describes the type Important of fuel to be used. Use Ultra Low Sulfur Diesel Fuel (sulfur-free Be sure to operate the 2WD/4WD selector diesel).

  • Page 32: Operation Decals

    GM2810A Product Overview Operation Decals Key switch decal Knife rotation mark Positions of Operation Decals Traction assist mark 2WD/4WD selector mark DPF regeneration mark (EN) Mower deck up/down mark Light switch mark Engine rotation mark Tilt Steering decal Parking brake decal...

  • Page 33: Description Of Operation Decals

    GM2810A Product Overview Description of Operation Decals Traction Assist Mark Key Switch Decal Traction assist mark It illustrates Activate/ Deactivate of the Decal, key switch traction assist. This indicates the key switch positions. O F F krtths-002 v2e27i-071 Traction Assist Mark_001...
  • Page 34 GM2810A Product Overview DPF Regeneration Mark (EN) Light Switch Mark Note: DPF regeneration mark (EN) Depending on the specifications, this function This indicates the changeover of DPF may not be available. regeneration. Light switch mark It illustrates ON/OFF of the light.
  • Page 35 GM2810A Product Overview Differential Lock Decal Parking Brake Decal K4203001420 K4203001340 Decal, differential lock Parking brake decal This indicates the positions for engaging or This shows how to lock and release the releasing the differential lock. parking brake. 3ujqne-001 kgtxi7-002...
  • Page 36 GM2810A Product Overview BACKWARD Decal K4203001440 Decal, BACKWARD This indicates backward travel. BACKWARD kqca3e-002 BACKWARD Decal_001 BRAKE Decal K4203001450 Decal, BRAKE This indicates brake. BRAKE 7elqr2-001 BRAKE Decal_001 Page 3-20 Operation Decals...

  • Page 37: Description Of Functions

    GM2810A Description of Functions Proximity Sensors ......... Page 4-2 Relays ............. Page 4-2 Knife Rotation Switch ......Page 4-3 2WD/4WD Selector Switch ....Page 4-3 DPF Auto Regeneration Inhibit Switch ............. Page 4-4 DPF Parked Regeneration Switch ..Page 4-5 Light Switch ........... Page 4-5 Traction Assist Switch ......

  • Page 38: Proximity Sensors

    GM2810A Description of Functions Proximity Sensors There are two proximity sensors on mower arm fulcrums #4 and #5. These sensors detect the raised or lowered positions of mower decks #4 and #5. The information is related to controlling rotation and stop of the rotary knives.

  • Page 39: Knife Rotation Switch

    GM2810A Description of Functions Knife Rotation Switch Caution When traveling, be sure to stop the rotation of Caution the rotary knives and raise the mower decks. Set the knife rotation switch to the "Rotation" position immediately before starting cutting Important work.

  • Page 40: Dpf Auto Regeneration Inhibit Switch

    GM2810A Description of Functions In “Auto regeneration inhibit mode" PM DPF Auto Regeneration Inhibit Switch accumulates in the DPF and PM accumulation level increases. Caution Unless the operator implements regeneration on his own will, regeneration is not performed. Normally, set the DPF auto regeneration inhibit switch to "Auto regeneration mode".

  • Page 41: Dpf Parked Regeneration Switch

    GM2810A Description of Functions DPF Parked Regeneration Switch Light Switch Note: Danger Danger Depending on the specifications, this function may not be available. Do not perform DPF regeneration in a location where fires may occur since it will become Caution extremely hot around the exhaust outlet during DPF regeneration.

  • Page 42: Traction Assist Switch

    GM2810A Description of Functions Traction Assist Switch The traction assist switch is located in the operation panel. This switch is effective to increase climbing ability when this machine is in cutting operation (4WD). ･ The cylinders are pressurized even with the switch set to the "OFF"...

  • Page 43: Throttle Knob

    GM2810A Description of Functions Mower deck up/down lever Raise Neutral Lower Throttle Knob The throttle knob is located to the right of the driver's seat and enables you to adjust the engine rpm. k3y8px-002 Move the throttle knob toward the "High speed"...

  • Page 44: Brake Pedal

    GM2810A Description of Functions Change of Braking Method Brake Pedal Follow the procedure below to change the Warning braking method from linked to independent. Swing up the pedal link bar, and then pull it Link the brake pedals, except when operating the machine.

  • Page 45: Parking Brake Lever

    GM2810A Description of Functions Parking Brake Lever Important When you restart the engine after the safety Caution device stops the engine, be sure to return the ignition key to the "OFF" position first, and Never park the machine on a slope.

  • Page 46: Engine Warning Lamp

    GM2810A Description of Functions Engine warning lamp blinks when only DTC Engine Warning Lamp relevant to PCD/NCD come up. Important Make repairs immediately if the fault codes of PCD (Particulate Control Diagnostic) and NCD (NOx Control Diagnostic) appear. Engine warning lamp (LED) lights up or blinks when a failure occurs on the function of engine.

  • Page 47: Monitor

    GM2810A Description of Functions LED (red) LED (red) Lights up when a critical malfunction on the Lights up when a critical malfunction on the engine is detected. engine is detected. Enter key Selects the menu or parameter. Switches between displaying/hiding the current fault code.

  • Page 48: Main Menu Items

    GM2810A Description of Functions Warning mark 1-Up Display / 4-Up Display The warning mark continues to be displayed in the upper right corner of the monitor "GO TO 1-UP DISPLAY" / "GO TO 4-UP display if the warning message ignored and DISPLAY"...

  • Page 49: Engine

    GM2810A Description of Functions Parameter Items ￭ The parameters and corresponding information that appear in the monitor display are listed below. Monitor display L Monitor display S Description ENGINE SPEED ENG RPM Displays the engine rpm. DRIVERS DEMAND DEMAND TQ Displays the torque required by the ECU.
  • Page 50 GM2810A Description of Functions Monitor display L Monitor display S Description EXHAUST FILTER Displays the DPF outlet gas temperature measured by the EF OUT T OUTLET TEMP exhaust temperature sensor. Shows the status of the regeneration icon. PARTICUATE TRAP PT LAMP Icon not displayed="OFF", Icon blinking="ON BLINK", Icon...
  • Page 51 GM2810A Description of Functions Text 2 ･ Language With "LANGUAGES", the language used in the monitor display can be set to either of the following two. 1 of 4 C : 3 SPN 172 FMI 3 ENGLISH ･ CORRECTIVE ACTION: S e e S e r v i c e M a n u a l ･...

  • Page 52: Dpf

    GM2810A Description of Functions Custom Setup Menu key ￭ Arrow keys With "CUSTOM SETUP", the type and Enter key number of parameters as well as their display order can be specified. Highlight "USE DEFAULTS", and then press the Enter key.
  • Page 53 GM2810A Description of Functions Change the parameters. Check that the number at the right of the parameter disappeared. To add a parameter Use the arrow keys to highlight the parameter to be added, and then press the Enter key. ENGINE SPEED...
  • Page 54 GM2810A Description of Functions 4-Up Display Setup With "SETUP 4-UP DISPLAY", the displayed parameters can be reset to the factory GO TO 4-UP DISPLAY defaults, or the monitor display of selected, LANGUAGES STORED CODES necessary parameters can be set up.
  • Page 55 GM2810A Description of Functions "RESTORED TO DEFAULTS" appears in Highlight "CUSTOM SETUP", and then the monitor display, and the parameters press the Enter key. are reset to the factory defaults of the following 8 items. ･ First page ENGINE SPEED...
  • Page 56 GM2810A Description of Functions The parameters appear. Check that a number appeared to the The number at the right of the right of the selected parameter. parameter indicates the location in the 4-up display. 1=Upper left 2=Lower left ENGINE SPEED...
  • Page 57 GM2810A Description of Functions Check that the number at the right of Reset Reminders ￭ the parameter disappeared. With "RESET REMINDER", displayed remaining time can be reset to the time specified with "MODIFY REMINDERS". Press the menu key. ENGINE SPEED...
  • Page 58 GM2810A Description of Functions Use the arrow keys to highlight the item to Modify Reminders ￭ be changed, and then press the Enter key. A plus appears at the right of the currently With "MODIFY REMINDERS", the selected items. replacement time period for consumables can be specified.
  • Page 59 GM2810A Description of Functions Use the arrow keys to highlight the item to "MODIFY SERVICE REMINDER?" be changed, and then press the Enter key. appears. To save the changes, press the Enter key. To cancel the changes, press the menu key.
  • Page 60 GM2810A Description of Functions Reminder Display Select Units ￭ With "SELECT UNITS", the units of parameter Important values can be set to any of the following three formats. If a warning message appears, immediately stop operation, and then perform the ･...
  • Page 61 GM2810A Description of Functions Units Adjust Backlight Monitor display S ENGLIS METRI METRI With "ADJUST BACKLIGHT", the brightness C KPA C BAR of the monitor display can be adjusted. ENG RPM Press the right arrow key to make the display DEMAND TQ ％...
  • Page 62 GM2810A Description of Functions Utilities Important "BACKLIGHT DIMMER" is not supported on With "UTILITIES", the remaining fuel volume this machine. can be specified and the monitor configuration Always select "FUEL LEVEL". can be displayed. If "BACKLIGHT DIMMER" is selected, "NO The following 6 items appear when DATA"...
  • Page 63 GM2810A Description of Functions Highlight "ANALOG INPUT", and then "LOW FUEL" appears. press the Enter key. LOW FUEL GAGE DATA REMOVE ALL GAGES SOFTWARE VERSION FAULT CONVERSION CANCEL ANALOG INPUT 3nw91f-010 3nw91f-007 Fuel Level_005 Press the right arrow key to increase the Fuel Level_002 Highlight "FUEL LEVEL", and then press...
  • Page 64 GM2810A Description of Functions A warning mark appears in the upper- Low Fuel Level Display right corner of the monitor display. Important If a warning message appears, immediately stop operation, and then supply fuel. 0 RPM 83 % When the fuel level falls below the...
  • Page 65 GM2810A Description of Functions Pressing the Enter key changes the screen Fault Code Displays from the fault code to the parameter display. Important Important If the service reminders are configured, the When the fault code (DTC) appears in the notices of the replacement time period for monitor display, contact your dealer.
  • Page 66 GM2810A Description of Functions Text 2 Text 2 ･ ･ The corrective action appears. The corrective action appears. 1 of 1 WARNING 1 of 1 WARNING SPN 916 FMI 17 SPN 110 FMI 3 CORRECTIVE ACTION: CORRECTIVE ACTION: S e e S e r v i c e M a n u a l S e e S e r v i c e M a n u a l <...

  • Page 67: Engine

    GM2810A Description of Functions Engine Important Do not repeat unnecessary regeneration or Handling Tier 4 Emission Control interrupting regeneration. Compliant Engine If repeating them, the measured level of The engine installed in this vehicle meets Tier engine oil may increase since the engine oil is 4 emission control for "non-road emission...
  • Page 68 GM2810A Description of Functions You can operate this machine to perform When the conditions for automatic ･ the regeneration. (The fault diagnostic tool regeneration are met, the automatic is not required.) regeneration starts and the regeneration icon changes from blinking to lighting.
  • Page 69 GM2810A Description of Functions ■In PM accumulation "Level 1" or "Level 2": Parked Regeneration ￭ Important Danger Danger If ignoring the parked regeneration requirement and continuing traveling or cutting Since it will become extremely hot around the work in PM accumulation "Level 1" or "Level exhaust outlet during DPF regeneration, do 2", PM accumulation level enters "Level 2"...
  • Page 70 GM2810A Description of Functions If the DPF auto regeneration inhibit switch set to the "Auto regeneration inhibit mode," set it to the "Auto regeneration mode." 1 of 2 C : 1 Press the DPF parked regeneration SPN 3701 FMI 15 E x c e s s i v e P M 3 switch.
  • Page 71 GM2810A Description of Functions ■In PM accumulation "Level 4": Manual Regeneration ￭ Important Danger Danger If ignoring the manual regeneration requirement and continuing traveling or cutting Since it will become extremely hot around the work in PM accumulation "Level 4", PM exhaust outlet during DPF regeneration, do accumulation level enters "Level 5".
  • Page 72 GM2810A Description of Functions Contact your dealer for manual Stop traveling and cutting work. regeneration. Park this machine in a safe location. Apply the parking brake. Replacement of DPF Stop the engine. When PM accumulates excessively in the Contact your dealer for DPF replacement.
  • Page 73 GM2810A Description of Functions Conditions for DPF Regeneration PM Accumulation Level Level 0 ￭ Danger Danger DPF regeneration is not necessary. Since it will become extremely hot around the exhaust outlet during DPF regeneration, do ￭ Level 1 not perform the regeneration in a location where fires may occur.
  • Page 74 GM2810A Description of Functions <Automatic regeneration> <Parked regeneration> ■When the DPF auto regeneration inhibit These are the conditions for activating ･ switch set to the "Auto regeneration mode": parked regeneration. When the conditions for automatic The parking brake is applied.
  • Page 75 GM2810A Description of Functions Press the DPF parked regeneration <Automatic regeneration> switch. ■When the DPF auto regeneration inhibit Parked regeneration starts and the switch set to the "Auto regeneration mode": regeneration icon changes from blinking to When the conditions for automatic lighting.
  • Page 76 GM2810A Description of Functions <Parked regeneration> Press the DPF parked regeneration switch. These are the conditions for activating ･ Parked regeneration starts and the parked regeneration. regeneration icon changes from blinking to The parking brake is applied. lighting. The traveling pedal is in neutral.
  • Page 77 GM2810A Description of Functions These are the statuses in PM When the regeneration completed, the accumulation "Level 3". regeneration icon disappears. ￭ Level 4 Danger Danger 1 of 2 C : 1 Since it will become extremely hot around the...
  • Page 78 GM2810A Description of Functions These are the statuses in PM The regeneration is impossible. ･ accumulation "Level 4". These are the statuses in PM accumulation "Level 5". 1 of 2 C : 1 SPN 3701 FMI 16 1 of 2...

  • Page 79: Handling Instructions

    GM2810A Handling Instructions Operations Before Service ....Page 5-2 Move ............Page 5-21 Opening and Closing of Hood ....Page 5-2 Traveling Procedure ......Page 5-21 Cutting Work ........Page 5-21 Opening and Closing of Underseat Cover ............Page 5-3 Cutting Operation ........ Page 5-21 Inspection and Cleaning .......

  • Page 80: Operations Before Service

    GM2810A Handling Instructions Lift up the hood. Operations Before Service Hook the hood stay on the receiver on the back side of the hood. Opening and Closing of Hood Make sure that the hood is fixed, and then release your hands.

  • Page 81: Opening And Closing Of Underseat Cover

    GM2810A Handling Instructions Opening and Closing of Underseat Inspection and Cleaning Cover Rotary Knife Caution Inspection of Rotary Knife Be careful not to pinch your fingers when you Caution open or close the underseat cover. When touching edged tools, wear gloves, Make sure that the steering wheel is raised since they could cut your hands.

  • Page 82: Radiator Cover

    GM2810A Handling Instructions Radiator Cover Radiator Inspection of Radiator Cover Inspection of Radiator Make sure that there is no damage to the Make sure that there is no damage to the radiator cover. radiator. Make sure that the radiator cover is not Make sure that the radiator is not contaminated.

  • Page 83: Coolant

    GM2810A Handling Instructions Coolant Caution The radiator cap is pressurized. Inspection of Coolant If you remove the radiator cap while the engine is overheated, hot steam will burst out, Caution possibly resulting in burns. Do not touch the radiator or coolant during...

  • Page 84: Oil Cooler

    GM2810A Handling Instructions Open the reserve tank cap, and then Unlock the rubber catches on the left and supply clean water up to the "FULL" right of the oil cooler, and then tilt the oil mark. cooler. ouuoov-014 C30D7599 Coolant Supply_002...

  • Page 85: Hydraulic Hoses

    GM2810A Handling Instructions Start the engine, raise and lower the mower Hydraulic Oil Supply decks, and turn the steering wheel left and right. Important Move forward and reverse repeatedly several times. Do not mix different types of oil. Raise the mower decks and maintain that...

  • Page 86: Air Cleaner

    GM2810A Handling Instructions Attach the outer element to the air Air Cleaner cleaner body. Inspection of Air Cleaner Replace the air cleaner cap, and then fix it securely using the clips. Liners and piston rings so that the engine will always operate smoothly.

  • Page 87: Battery

    GM2810A Handling Instructions Battery Supply of Battery Fluid Inspection of Battery Danger Danger Be careful not to let your skin, eyes or clothes, Danger Danger etc., come into contact with the battery fluid or Keep away from fire while inspecting or accidentally swallow the fluid.

  • Page 88: Electrical Wiring

    GM2810A Handling Instructions Electrical Wiring Belt Inspection of Electrical Wiring Inspection of Belt Important Warning Electrical short circuit will cause fire, electrical The engine must be stopped when the belt is leakage and malfunction of electrical inspected. equipments. Important Inspect electrical wiring for poor terminal...

  • Page 89: Around The Engine

    GM2810A Handling Instructions Position the machine so that the engine will Around The Engine be level, and then insert the oil level gauge all the way to check the oil level. Inspection of Engine-Associated Parts Caution Implement after the engine and DPF etc. have well cooled down.

  • Page 90: Fuel

    GM2810A Handling Instructions Fuel Supply of Engine Oil Inspection of Fuel Quantity Important With the machine on a level surface, observe Do not supply too much engine oil. Otherwise, the fuel level in the monitor to check the fuel the engine may be damaged.

  • Page 91: Water Separator

    GM2810A Handling Instructions Note: Water Separator The factory default low fuel level is 10%.The level can be changed optionally. Inspection of Water Separator Important If water contaminates the fuel, the supply pump and injector will seize due to heat. The water separator removes water from the...

  • Page 92: Fuel Filter

    GM2810A Handling Instructions Loosen the water drain plug and air- Remove and clean the cup, element and bleeding bolt to drain the water into the float. container. Replace the element with a new one when replacement needed. v1spa6-001 Draining of Water Separator_001...

  • Page 93: Liquid Leakage

    GM2810A Handling Instructions Check the wheel mounting bolts and wheel Liquid Leakage nuts for cracks and damages. Inspection of Liquid Leakage Check the wheel mounting bolts and wheel nuts for rust. Caution Check around the wheel mounting bolts and wheel nuts for traces of rust fluid.

  • Page 94: Adjustment Before Work

    GM2810A Handling Instructions Adjustment of Seat Adjustment before Work Use the adjustment levers to adjust the seat. Adjustment of Steering Wheel Adjust the position to fit the operator. Use the forward/backward adjustment lever Warning to adjust the seat back and forth.

  • Page 95: Adjustment Of Cutting Height

    GM2810A Handling Instructions Adjustment of Cutting Height Adjustment With Adjusting Collars Cutting Height Table Adjusting collars are installed at three locations on each mower deck. The adjustment range for the cutting height is Important 20.0 - 91.5 mm (0.79 - 3.60 in).
  • Page 96 GM2810A Handling Instructions To decrease cutting height: Important Remove a lower adjusting collar and insert it above. Do not cut off more than 1/3 of the grass height. Apply the parking brake, and then lower all mower decks. Stop the engine, and then remove the key.

  • Page 97: Start/Stop Of Engine

    GM2810A Handling Instructions Lower the mower deck to change the Important hole positions, and then temporarily secure it with the two bolts. When restarting the engine after it has been turned off, wait until the electromagnetic pump has fully stopped before restarting the engine.

  • Page 98: Parking And Stopping

    Remove the ignition key. Install the rubber cap to the key switch. After the "BARONESS" logo and the yellow Hook the mower lock levers (latches) for the and red LEDs go off and the parameters mower decks #4 and #5.

  • Page 99: Move

    GM2810A Handling Instructions Move Caution Please note that if you stop operating the Traveling Procedure mower deck up/down lever before the mower decks are raised completely, knife rotation Caution may not stop. Under any circumstances drive the machine at Knife rotation will be turned on or off based on...

  • Page 100: Transporting

    GM2810A Handling Instructions Transporting Transporting Procedure When loading the machine into a trailer or a truck to transport it, drive the machine forward. When unloading, drive the machine in reverse. If the roof is installed on the machine, remove The roof may be damaged by wind pressure.

  • Page 101: Maintenance

    GM2810A Maintenance Precautions for Maintenance ....Page 6-2 Jacking Up The Machine .......Page 6-2 About Jacking Up The Machine .....Page 6-2 Jack-Up Points ........Page 6-2 Greasing ..........Page 6-3 About Greasing ........Page 6-3 Greasing Points ........Page 6-3 Lubrication ..........Page 6-6 About Lubrication ........Page 6-6...

  • Page 102: Precautions For Maintenance

    First, learn well the operations you plan to perform. Important Use tools appropriate for each operation. Important Use Baroness genuine parts for replacement and accessories. Our product warranty may be void if you use non-genuine parts for replacement or accessories.

  • Page 103: Greasing

    GM2810A Maintenance Front right frame Greasing About Greasing Since there may be adhesion or damage due to lack of grease on moving parts, they must be greased. Add urea-based No. 2 grease in accordance with the Maintenance Schedule. Other locations where the specified grease or lubricant is used are indicated in "Greasing...
  • Page 104 GM2810A Maintenance Lift arm fulcrum No. of There is one greasing point on the arm Portion Greasing 　 connected to each mower deck. Points Lower the mower decks before greasing the Mower arm fulcrum lift arm fulcrums. Lift arm fulcrum...
  • Page 105 GM2810A Maintenance Lift arm cylinder fulcrum Rear left wheel This is on each cylinder of the arms connected to each mower deck. Mower decks #1, #4 and #5 There are two greasing points on each cylinder. 8bq62b-033 Greasing Points_010 Rear right wheel...

  • Page 106: Lubrication

    GM2810A Maintenance Traveling pedal shaft fulcrum Lubricating Points There are two locations. Apply lubricant at the following locations every 50 hours of operation. 8bq62b-036 Greasing Points_013 Foot brake 8bq62b-500 There are three locations. Lubricating Points_001 No. of 　 Location lubricating...

  • Page 107: Adjustment And Replacement

    GM2810A Maintenance Fully insert the grip pin into the locking hole Adjustment and Replacement for maintenance, and then install the clip pin in the grip pin. Swiveling Mower Decks #2 and #3 Caution The rotary knife is an edged tool.

  • Page 108: Change Of Rotary Knife

    GM2810A Maintenance If the edge of the rotary knife becomes chipped Change of Rotary Knife or thin, replace it with a new one. The criteria for replacing the rotary knife are Caution described below. The rotary knife is an edged tool.
  • Page 109 GM2810A Maintenance Mower Deck #1 Start the engine, and then raise the mower decks. Stop the engine, and then remove the key. Lift the mower deck at the front. to41g1-007 Mower Deck #1_003 Square pipe Rotary knife Bolt Spring washer...
  • Page 110 GM2810A Maintenance Remove the cotter pin and hardened Important roundhead pin inserted at a, and then insert them at b. The tightening torque for the knife mounting bolt is 104 - 134 N-m (1,060.49 - 1,366.40 kgf- cm). Install the rotary knife.

  • Page 111: Grinding Of Rotary Knife

    GM2810A Maintenance Follow the steps below to remove the rotary Grinding of Rotary Knife knife. Use the square pipe from the included Caution tools to secure the rotary knife so that it The rotary knife is an edged tool. does not turn.
  • Page 112 GM2810A Maintenance When, after grinding, the blade base of the Important rotary knife does not reach the sail Grind only the top surface of the edge, and be sure to maintain the original angle. By equally grinding the left and right ends of the rotary knife, it can be sharpened without becoming imbalanced.

  • Page 113: Balancing Of Rotary Knife

    GM2810A Maintenance Balancing of Rotary Knife Replacement of Tires Replacement of Front Tires Caution Removing front tires The rotary knife is an edged tool. Follow the steps below to remove the front Take extra care in handling since they could tires: cut your hands or legs.

  • Page 114: Adjustment Of Belt Tension

    GM2810A Maintenance Adjustment of Belt Tension Replacement of Rear Tire Removing rear tires Warning Follow the steps below to remove the rear tire. Be sure to stop the engine before adjusting the belts. Loosen the bolts. Important Before making sure of belt tension, rotate the belt several times.

  • Page 115: Change Of Coolant

    GM2810A Maintenance Change of Coolant LLC concentration Freezing temperature (volume %) Caution Down to -10 °C (14 °F) 20 % Down to -15 °C (5 °F) 30 % Do not touch the radiator or coolant during Down to -20 °C (-4 °F)

  • Page 116: Change Of Hydraulic Oil

    GM2810A Maintenance Remove the reserve tank. Important When you change the hydraulic oil, be sure to drain it into a bowl and discard it in accordance with local laws and regulations. Important If the oil emulsifies or if it becomes even slightly less transparent, change the oil immediately.

  • Page 117: Change Of Hydraulic Oil Filter

    GM2810A Maintenance Wind new sealing tape on the drain plug, Change of Hydraulic Oil Filter and then attach it to the hydraulic tank. Change of Hydraulic Oil Line Filter Caution Be careful with hot oil, which could cause burns if it contacts your skin.
  • Page 118 GM2810A Maintenance Firmly tighten the filter cartridge by hand Important until the packing contacts the mounting surface. Replace the intake port packing with a new And then tighten it with a half more turn. one. On a level surface, lower the mower decks, and then stop the engine.

  • Page 119: Change Of Air Cleaner

    GM2810A Maintenance Check underneath the machine for Change the engine oil more frequently if the hydraulic oil leakage. engine oil is contaminated, or if you use the machine in dusty areas or operate the engine Install the left tank cover.

  • Page 120: Replacement Of Engine Oil Filter

    GM2810A Maintenance Make sure that there is no oil leakage at the Replacement of Engine Oil Filter sealing surface of the filter cartridge. Check the engine oil level. Caution If it is low, supply engine oil until it reaches Be careful with hot oil, which could cause the specified level.

  • Page 121: Storage

    GM2810A Maintenance Lightly coat the packing of the new Storage location cartridge with fuel, and then firmly hand- Cover the machine and store it in a dry ･ tighten the cartridge, without using the place where it will not be exposed to rain.
  • Page 122 GM2810A Maintenance Page 6-22 Storage...

  • Page 123: Repair

    GM2810A Repair Precautions for Repair ......Page 7-2 Adjustment and Replacement ....Page 7-2 Adjustment of Brake ......Page 7-2 Adjusting the Neutral Position of the Piston Pump .......... Page 7-4 Change of Fuse ........Page 7-4 Towing ............ Page 7-5 Towing The Machine in An Emergency ..........Page 7-5...

  • Page 124: Precautions For Repair

    (neutral). For each wheel, fully tighten the adjustment Important bolt on the brake disc side. Use Baroness genuine parts for replacement and accessories. Our product warranty may be void if you use non-genuine parts for replacement or accessories.
  • Page 125 GM2810A Repair Reduce the clearance by loosening the lock Inner wire nut, then tightening the adjustment nut. Adjustment bolt Tighten the adjustment nut until the friction Lock nut material contacts the friction surface of the Connection disc. 1.0 mm (0.039 in)

  • Page 126: Adjusting The Neutral Position Of The Piston Pump

    GM2810A Repair Adjusting the Neutral Position of the Piston Lock nut A (Left-hand thread) Pump Neutral adjustment rod Lock nut B (Right-hand thread) Caution Find the position where the front wheels Make sure not to touch rotating tires. stop, and then tighten the lock nuts.

  • Page 127: Towing

    GM2810A Repair Towing Towing The Machine in An Emergency If the machine does not travel due to engine A B C D E trouble, etc., you can move it by towing it. H I J Caution Before towing, check that the brake is applied effectively.
  • Page 128 GM2810A Repair Front right side Depress the brake pedal to release the parking brake. Warning While towing, always keep your foot on the brake pedal and depress the brake pedal at any time to stop. Tow the machine slowly. gay3t1-025...

  • Page 129: Appended Table

    GM2810A Appended Table Tightening Torques ....... Page 8-2 Standard Tightening Torques ....Page 8-2 Principal Tightening Torques ....Page 8-5 Maintenance Schedule ......Page 8-7 List of Adjusted Value ......Page 8-11 List of Fault Codes ......Page 8-12 Page 8-1...

  • Page 130: Tightening Torques

    GM2810A Appended Table Tightening Torques Important Refer to the Tightening Torque table. Note that the Baroness product warranty may not apply to defects caused by incorrect or overtorque tightening, etc. Standard Tightening Torques Bolts and Nuts Important A number of bolts are used in each part of this machine.
  • Page 131 GM2810A Appended Table General bolt Strength classification 4.8 Nominal diameter tib3yb-001 kgf-cm lb-in 3 - 5 30.59 - 50.99 26.55 - 44.26 7 - 9 71.38 - 91.77 61.96 - 79.66 14 - 19 142.76 - 193.74 123.91 - 168.17 29 - 38 295.71 - 387.49...
  • Page 132 GM2810A Appended Table Hydraulic Hose The tightening torques for union joints and union adaptors with parallel pipe threads (G, PF) are shown in the table below. A union joint or adaptor will not become loose or leak as long as it is tightened by the specified torque.

  • Page 133: Principal Tightening Torques

    GM2810A Appended Table Principal Tightening Torques Tightening Torque by Model GM2810A Tighten the following bolts and nuts at the torque specified in the table. For thread locking adhesive, apply a middle strength thread locker (ThreeBond 1322 or equivalent anaerobic sealant).
  • Page 134 GM2810A Appended Table Tightening torque Thread locking Location Code Part name adhesive kgf-cm lb-in Bolt, w/hexagon hole, K001A100401 815.76 708.08 ○ M10-40 Joint 458.87 - 398.30 - K0013100352 Bolt, heat-treated M10-35 45 - 76 － 774.97 672.68 530.24 - 460.25 -...

  • Page 135: Maintenance Schedule

    GM2810A Appended Table Maintenance Schedule GM2810A ●・・・Inspect, adjust, supply, clean (first time) ○・・・Inspect, adjust, supply, clean ▲・・・Replace (first time) △・・・Replace Maintenance Item Remarks Check engine oil level ○ 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　...
  • Page 136 GM2810A Appended Table Maintenance Item Remarks Replace every 6 cleanings or every year whichever Clean air cleaner outer comes earlier element (Replace the 　 　 　 　 ○ 　 　 　 　 　 　 　 △ 　 　 　 Air cleaner should...
  • Page 137 GM2810A Appended Table Maintenance Item Remarks Initial 50 hours, thereafter every Replace oil filter 400 hours or every 　 　 　 ▲ 　 　 △ 　 　 　 　 　 △ 　 　 　 cartridge year whichever comes earlier Replace fuel filter *1.*4...
  • Page 138 *1: When biodiesel fuel is used, change the fuel filter cartridge, fuel hose and clamp bands with new ･ ones at intervals half of the usual ones. *2: Consult your local Baroness Dealer or local KUBOTA Dealer for this service. ･ Page 8-10...

  • Page 139: List Of Adjusted Value

    GM2810A Appended Table The items above (*3 marked) are registered as emission related critical parts by KUBOTA in the ･ U.S. EPA nonroad emission regulation. As the engine owner, you are responsible for the performance of the required maintenance on the engine according to the above instruction.

  • Page 140: List Of Fault Codes

    GM2810A Appended Table List of Fault Codes Important When the fault code appears in the monitor display, refer to "Kubota DIAGNOSIS MANUAL COMMON RAIL SYSTEM" or contact your dealer. The fault codes (DTC) and corresponding information that appear in the monitor display are listed below.
  • Page 141 GM2810A Appended Table Corrective J1939-73 DTC name ISO 14229 Behavior During Recovery from action Detection item Remark Malfunction error Text 1 P-Code Text 2 - Insufficient output Stop ENG Fuel leak (in - Worsening consumption is To minimize PM Key switch turn...
  • Page 142 GM2810A Appended Table Corrective J1939-73 DTC name ISO 14229 Behavior During Recovery from action Detection item Remark Malfunction error Text 1 P-Code Text 2 - Insufficient output - Worsening exhaust gas Open circuit or +B Stop ENG emissions short circuit of...
  • Page 143 GM2810A Appended Table Corrective J1939-73 DTC name ISO 14229 Behavior During Recovery from action Detection item Remark Malfunction error Text 1 P-Code Text 2 Engine speed See Service Diagnostic Engine overrun P0219 exceeds - Overrun 　 Manual counter = zero...
  • Page 144 GM2810A Appended Table Corrective J1939-73 DTC name ISO 14229 Behavior During Recovery from action Detection item Remark Malfunction error Text 1 P-Code Text 2 (At low temperature) Ground short of Ground short of See Service Key switch turn glow relay...
  • Page 145 GM2810A Appended Table Corrective J1939-73 DTC name ISO 14229 Behavior During Recovery from action Detection item Remark Malfunction error Text 1 P-Code Text 2 - Insufficient output Injector charge Stop ENG voltage: Low Injector charge - Worsening Key switch turn...
  • Page 146 GM2810A Appended Table Corrective J1939-73 DTC name ISO 14229 Behavior During Recovery from action Detection item Remark Malfunction error Text 1 P-Code Text 2 - Faulty starting - Insufficient output Sensor supply Sensor supply See Service Key switch turn - Worsening...
  • Page 147 GM2810A Appended Table Corrective J1939-73 DTC name ISO 14229 Behavior During Recovery from action Detection item Remark Malfunction error Text 1 P-Code Text 2 Accelerator position sensor Diagnostic Accelerator signal error counter = zero See Service - Insufficient Position Sensor...
  • Page 148 GM2810A Appended Table Corrective J1939-73 DTC name ISO 14229 Behavior During Recovery from action Detection item Remark Malfunction error Text 1 P-Code Text 2 - Insufficient output CAN2 +B or GND See Service Key switch turn CAN2 Bus off U0075...
  • Page 149 GM2810A Appended Table Corrective J1939-73 DTC name ISO 14229 Behavior During Recovery from action Detection item Remark Malfunction error Text 1 P-Code Text 2 Exhaust gas Open circuit or +B See Service Key switch turn temperature P0544 3242 short circuit of None 　...
  • Page 150 GM2810A Appended Table Corrective J1939-73 DTC name ISO 14229 Behavior During Recovery from action Detection item Remark Malfunction error Text 1 P-Code Text 2 Differential Ground short See Service Key switch turn pressure P2454 3251 circuit of sensor None 　...
  • Page 151 GM2810A Appended Table Corrective J1939-73 DTC name ISO 14229 Behavior During Recovery from action Detection item Remark Malfunction error Text 1 P-Code Text 2 Stop engine!! PM accumulation To minimize PM - Insufficient Diagnostic Excessive PM4 Contact dealer P3007 3701...
  • Page 152 GM2810A Appended Table Corrective J1939-73 DTC name ISO 14229 Behavior During Recovery from action Detection item Remark Malfunction error Text 1 P-Code Text 2 - Worsening exhaust gas Over heat pre- See Service Diagnostic P3025 523603 15 Coolant temp. 　...
  • Page 153 GM2810A Appended Table Corrective J1939-73 DTC name ISO 14229 Behavior During Recovery from action Detection item Remark Malfunction error Text 1 P-Code Text 2 Loss of DPF See Service Loss of functon of P3015 3936 Function Manual Open Circuit of...
  • Page 154 GM2810A Appended Table Page 8-26 List of Fault Codes...
  • Page 155 1-26, Miyuki-cho, Toyokawa-city, Tel : +81 - 533 - 84 - 1390 Head Office Fax : +81 - 533 - 84 - 1220 Aichi-pref, 442-8530 JAPAN GM2810A-UM--GBZ/23C-00-S.K...

Table of Contents
