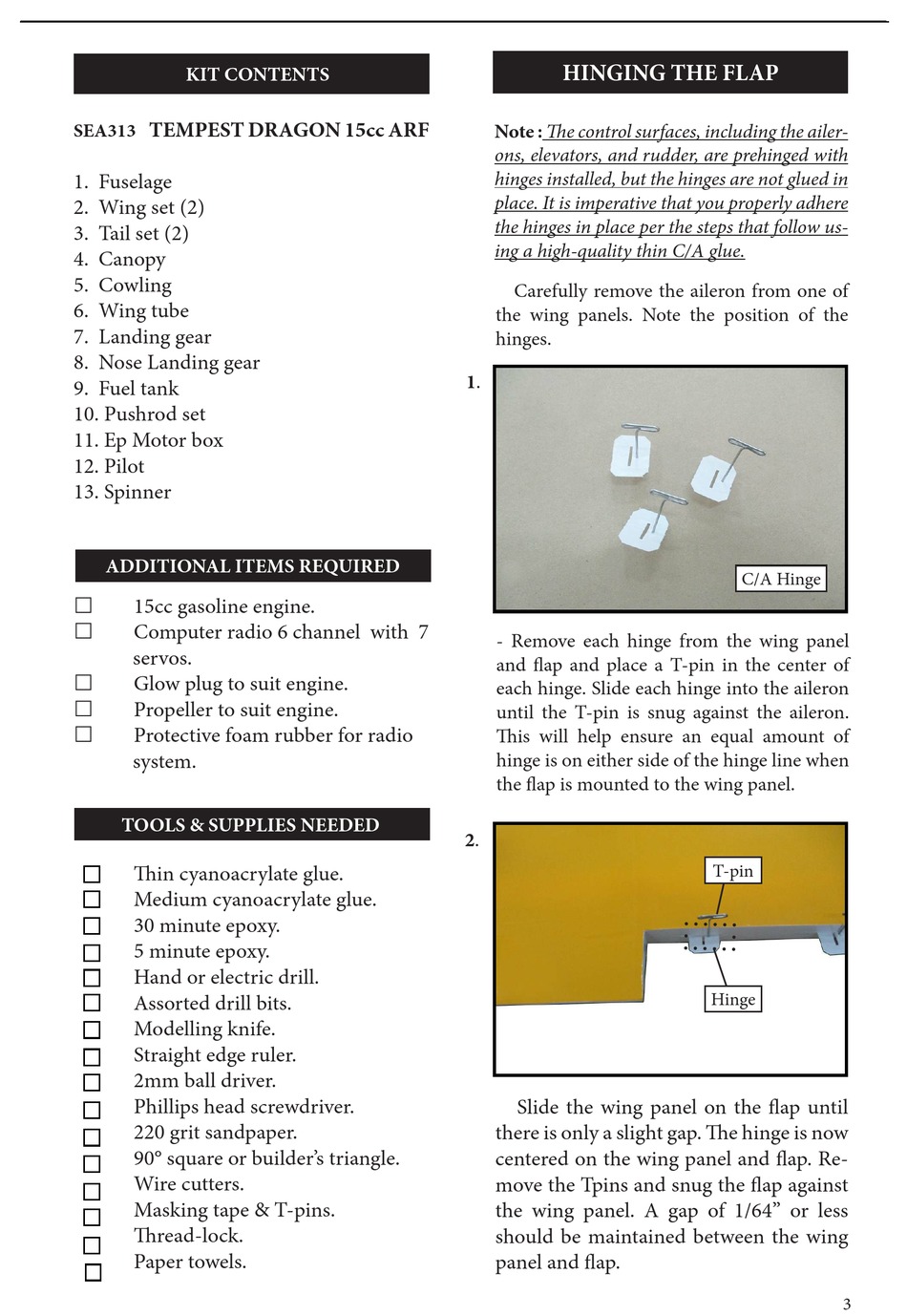

Additional Items Required; Tools And Supplies Needed - Seagull Models TEMPEST DRAGON 15cc ARF Assembly Manual

KIT CONTENTS
TEMPEST DRAGON 15cc ARF
SEA313
1. Fuselage
2. Wing set (2)
3. Tail set (2)
4. Canopy
5. Cowling
6. Wing tube
7. Landing gear
8. Nose Landing gear
9. Fuel tank
10. Pushrod set
11. Ep Motor box
12. Pilot
13. Spinner

ADDITIONAL ITEMS REQUIRED

�
15cc gasoline engine.
�
Computer radio 6 channel with 7
servos.
�
Glow plug to suit engine.
�
Propeller to suit engine.
�
Protective foam rubber for radio
system.
TOOLS & SUPPLIES NEEDED
hin cyanoacrylate glue.
Medium cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modelling knife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder's triangle.
Wire cutters.
Masking tape & T-pins.
hread-lock.
Paper towels.
HINGING THE FLAP
Note : he control surfaces, including the ailer-
ons, elevators, and rudder, are prehinged with
hinges installed, but the hinges are not glued in
place. It is imperative that you properly adhere
the hinges in place per the steps that follow us-
ing a high-quality thin C/A glue.
Carefully remove the aileron from one of
the wing panels. Note the position of the
hinges.
1.
- Remove each hinge from the wing panel
and lap and place a T-pin in the center of
each hinge. Slide each hinge into the aileron
until the T-pin is snug against the aileron.
his will help ensure an equal amount of
hinge is on either side of the hinge line when
the lap is mounted to the wing panel.
2.
Slide the wing panel on the lap until
there is only a slight gap. he hinge is now
centered on the wing panel and lap. Re-
move the Tpins and snug the lap against
the wing panel. A gap of 1/64" or less
should be maintained between the wing
panel and lap.
C/A Hinge
T-pin
Hinge
3
