KIT CONTENTS.
SEA207 P47 SNAFU
SEA20701 Fuselage
SEA20702 Wing set
SEA20703 Tail set
SEA20704 Canopy
SEA20705 Pilot
SEA20706 Cowling
SEA20707 Wheels
ADDITIONAL ITEMS REQUIRED.
61- 91
91-100
15cc gasoline engine.
Computer radio with 9 servos.
Glow plug to suit engine.
Propeller to suit engine.
Protective foam rubber for radio
system.
TOOLS & SUPPLIES NEEDED.
hick cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modelling knife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder's triangle.
Wire cutters.
Masking tape & T-pins.
hread-lock.
Paper towels.
2-stroke.
4-stroke.

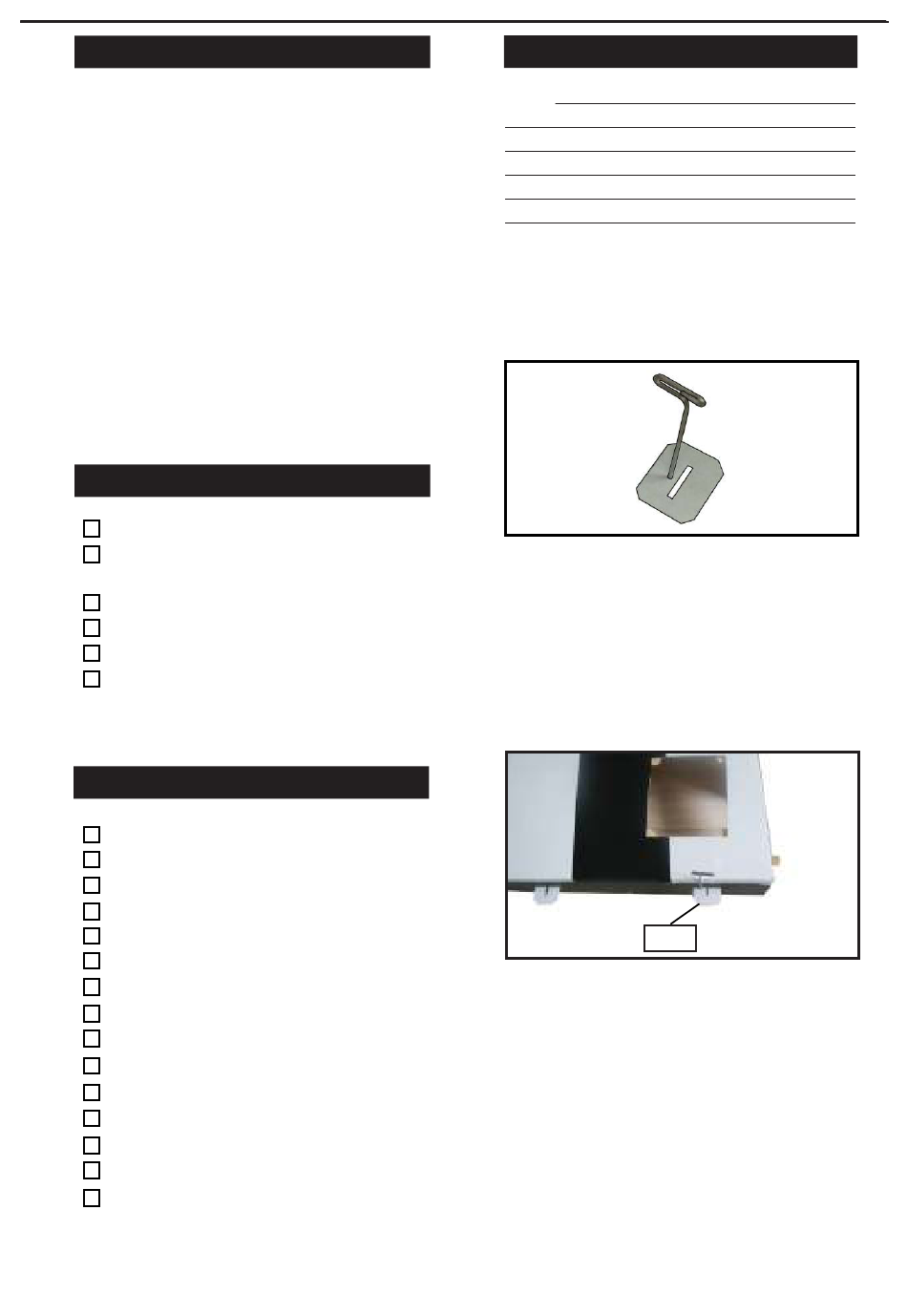

HINGING THE FLAP.
Note : he control surfaces, including the ai-
lerons, elevators, and rudder, are prehinged
with hinges installed, but the hinges are not
glued in place. It is imperative that you prop-
erly adhere the hinges in place per the steps
that follow using a high-quality thin C/A glue.
1) Carefully remove the lap from one of the
wing panels. Note the position of the hinges.
2) Remove each hinge from the wing panel
and lap and place a T-pin in the center of
each hinge. Slide each hinge into the wing
panel until the T-pin is snug against the wing
panel. his will help ensure an equal amount
of hinge is on either side of the hinge line
when the lap is mounted to the aileron.
Hinge.
.
3) Slide the wing panel on the lap until there
is only a slight gap. he hinge is now cen-
tered on the wing panel and lap. Remove
the T-pins and snug the lap against the wing
panel. A gap of 1/64" or less should be main-
tained between the wing panel and lap.
3
