7 Wiring Configuration Examples
The examples in this section are intended as a quick
reference for common applications.
•
Parameter settings are the regional default values
unless otherwise indicated (selected in
parameter 0-03 Regional Settings).
•
Parameters associated with the terminals and
their settings are shown next to the drawings.
•
Required switch settings for analog terminals A53
or A54 are also shown.
NOTICE
When not using the optional STO feature, a jumper wire
is required between terminal 12 (or 13) and terminal 37
for the drive to operate with factory default
programming values.

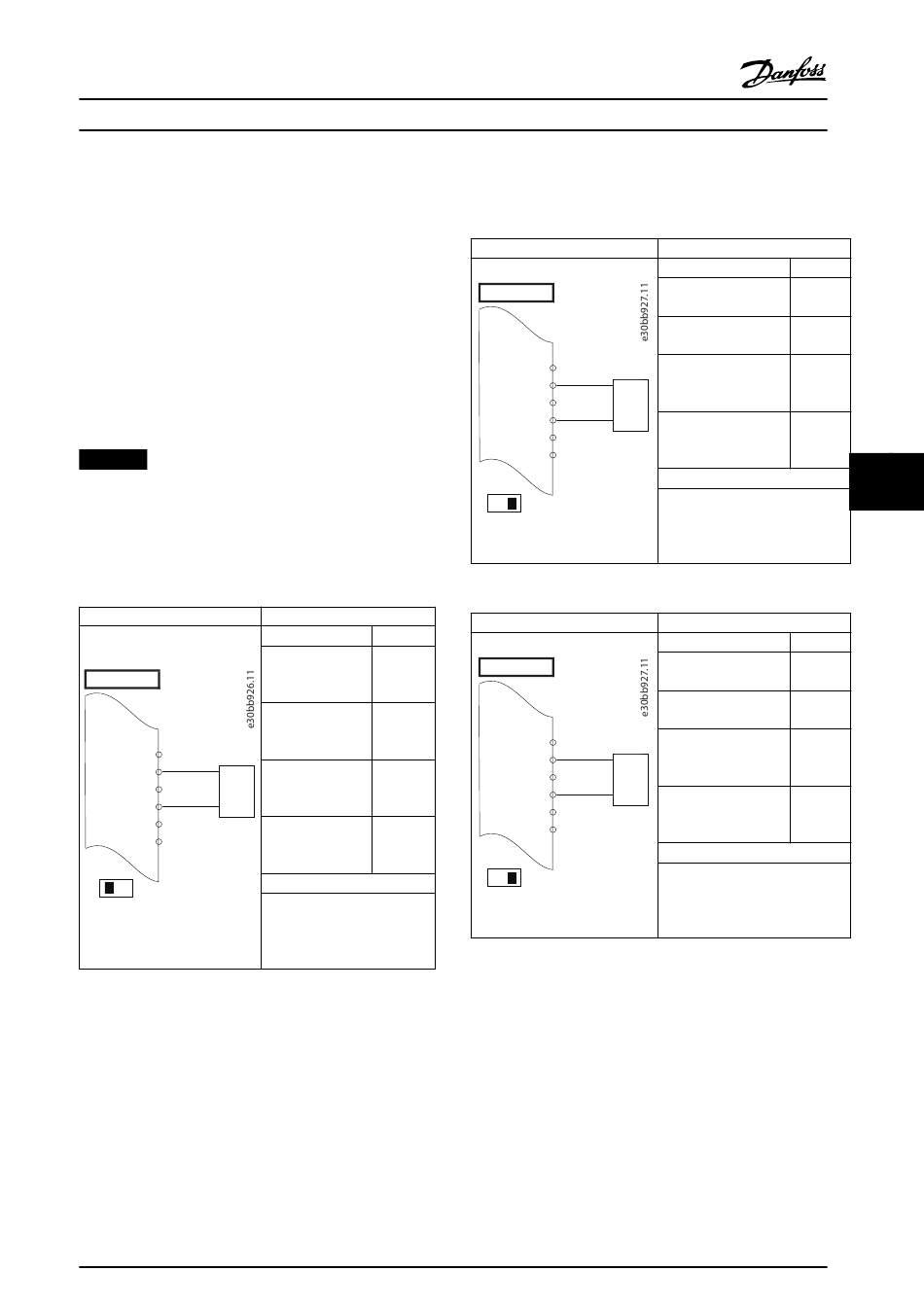

7.1 Wiring for Open-loop Speed Control
FC
+10 V
50
+
A IN
53
A IN
54
COM
55
-
A OUT
42
0 – 10 V
COM
39
U - I
A53
Table 7.1 Analog Speed Reference (Voltage)
MG16P222
Operating Guide
Parameters
Function
Setting
Parameter 6-10 Ter
0.07 V*
minal 53 Low
Voltage
Parameter 6-11 Ter
10 V*
minal 53 High
Voltage
Parameter 6-14 Ter
0 RPM
minal 53 Low Ref./
Feedb. Value
Parameter 6-15 Ter
1500 RPM
minal 53 High Ref./
Feedb. Value
* = Default value
Notes/comments:
Assumptions are 0 V DC input
= 0 Hz speed and 10 V DC
input = 50 Hz speed.
Danfoss A/S © 04/2018 All rights reserved.
FC
+10 V
50
+
A IN
53
A IN
54
COM
55
-
A OUT
42
4 - 20mA
COM
39
U - I
A53
Table 7.2 Analog Speed Reference (Current)
FC
+10 V
50
+
A IN
53
A IN
54
COM
55
-
A OUT
42
4 - 20mA
COM
39
U - I
A53
Table 7.3 Speed Reference (Using a Manual Potentiometer)
Parameters
Function
Setting
Parameter 6-12 Terminal
4 mA*
53 Low Current
Parameter 6-13 Terminal
20 mA*
53 High Current
Parameter 6-14 Terminal
0 RPM
53 Low Ref./Feedb.
Value
Parameter 6-15 Terminal
1500 RPM
53 High Ref./Feedb.
Value
* = Default value
Notes/comments:
Assumptions are 4 mA input =
0 Hz speed and 20 mA input =
50 Hz speed.
Parameters
Function
Setting
Parameter 6-12 Terminal
4 mA*
53 Low Current
Parameter 6-13 Terminal
20 mA*
53 High Current
Parameter 6-14 Terminal
0 RPM
53 Low Ref./Feedb.
Value
Parameter 6-15 Terminal
1500 RPM
53 High Ref./Feedb.
Value
* = Default value
Notes/comments:
Assumptions are 0 V DC input =
0 RPM speed and 10 V DC input =
1500 RPM speed.
57
7
7
