Outputs 7 and 8
3.6
Connecting the Card Reader
3.6.1
Card Reader Requirements
Version 2.2
LT-980
Outputs 7 and 8 are programmable and provide a combined output of 1 A. Each
individual output is capable of providing:
•
12 VDC
•
500mA of current (700 mA maximum)
Note:
Outputs 7 and 8 are capable of providing a maximum output of
700 mA each, for a combined output of 1 A. For example, if output
7 provides 700 mA, then output 8 provides 300 mA.

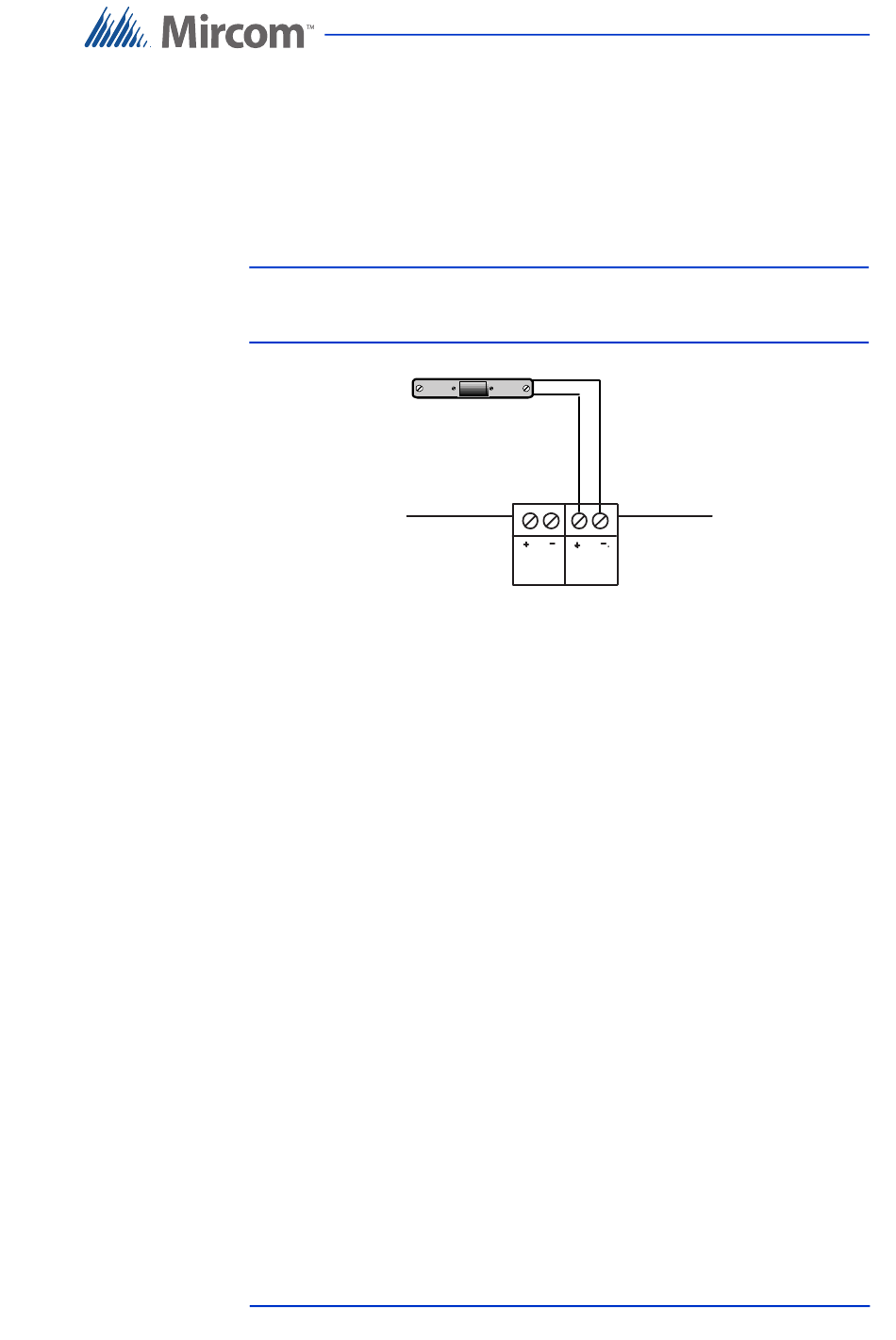

Figure 19. Outputs 7 and 8 Sample Connections
Figure 19 shows a door strike activated and powered by output 8.
The card readers are manufactured by AWID and are part of the Mircom Card
Access package. The cards are produced by Mircom. The controller supports
two card readers.
Mircom provides the SR-2400MI-GR-MP multi protocol proximity card reader.
TX3-CX Card Access System Installation and Operation Manual
Copyright 2015
Door Strike
12V
12V
OUTPUT 7
OUTPUT 8
Installation and Setup
45 (61)
