3.4.7

Alarm Delay

3.5

Connecting the Outputs

3.5.1

Specific functions

Version 2.2
LT-980

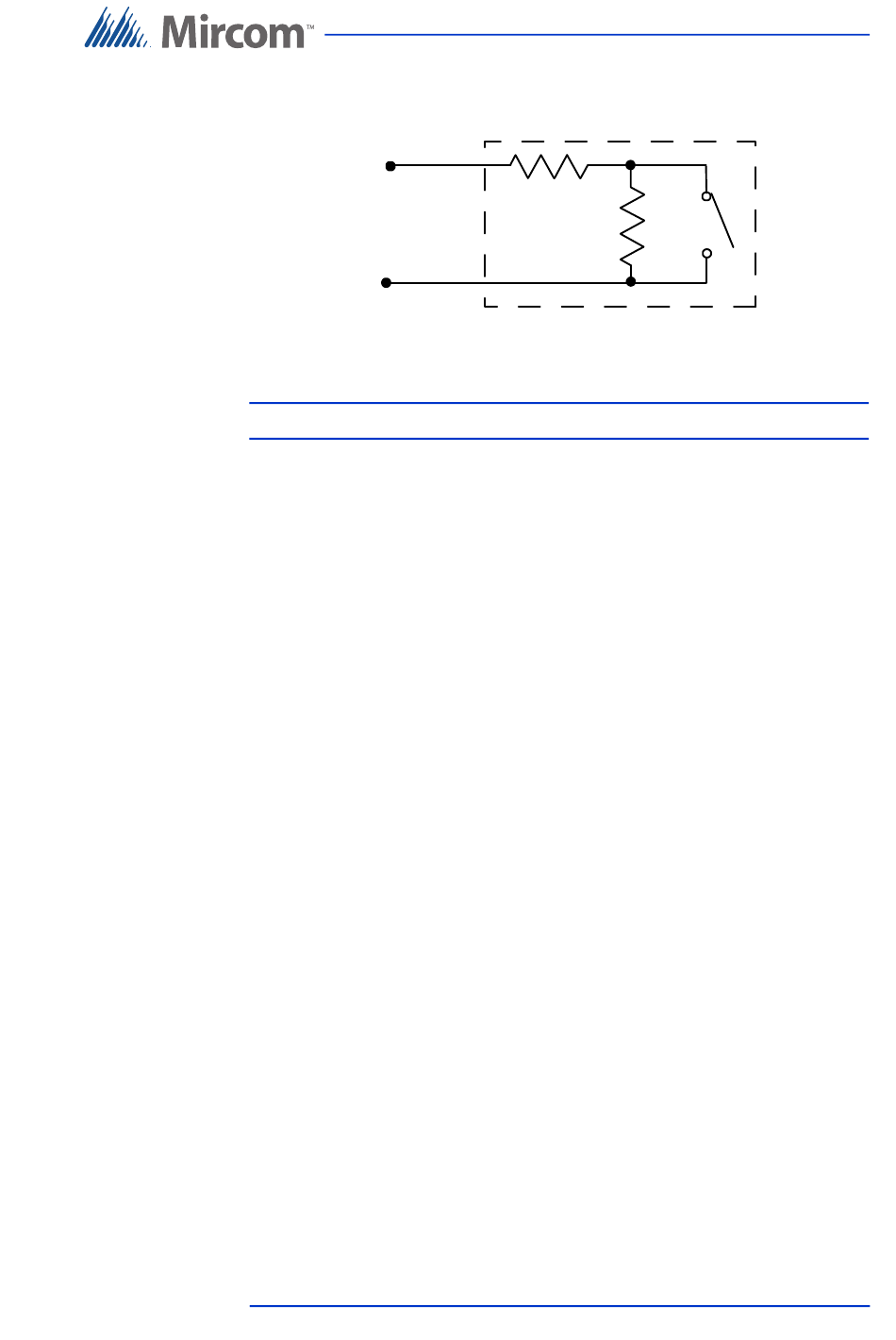

Two 22K ohm resistors are required for supervision.
Active when short
Figure 17. Input - Supervised for Open and Short
Note: The active state cannot be an open state.
Alarm delay is a configurator defined parameter that specifies the amount of time
before an input raises an alarm condition. For more information see Chapter 2
Configurable Features.
There are 8 outputs located on the top right hand corner of the Card Access
Controller as shown in Figure 9.
Each output is wired for a specific function or for an active state. Determine the
functional requirements for the device and connect the outputs accordingly. For
additional details and a complete description of the different types of
configurable functions see Chapter 2 Configurable Features.
After the installation and setup is complete, the functional state of all outputs
must be configured using the configurator software.
Each output is wired for the following specific functions:
• Lock for Reader A or B
• Handicap lock for Reader A or B
• General purpose output
Lock for reader A or B. This output assigns the main access door to either
reader A or reader B. When access is granted at the designated reader, this output
unlocks the door.
Handicap lock for reader A or B. This output controls the handicap access
door. Access is granted to cards with handicap privileges.
TX3-CX Card Access System Installation and Operation Manual
Copyright 2015
22 K ohms
22 K ohms
Installation and Setup
43 (61)
