Figure 9 Controller Board Connection Locations - Mircom TX3 Series Installation And Operation Manual

Card access system
Table of Contents

Advertisement

Version 2.2
LT-980
8 inputs
8 outputs (6 relay contact outputs and 2 outputs providing 12 Vdc)
connections for two card readers (noted as Reader A and Reader B)
power supply
RS-485 connector
USB, IP Module, and Modem board connectors

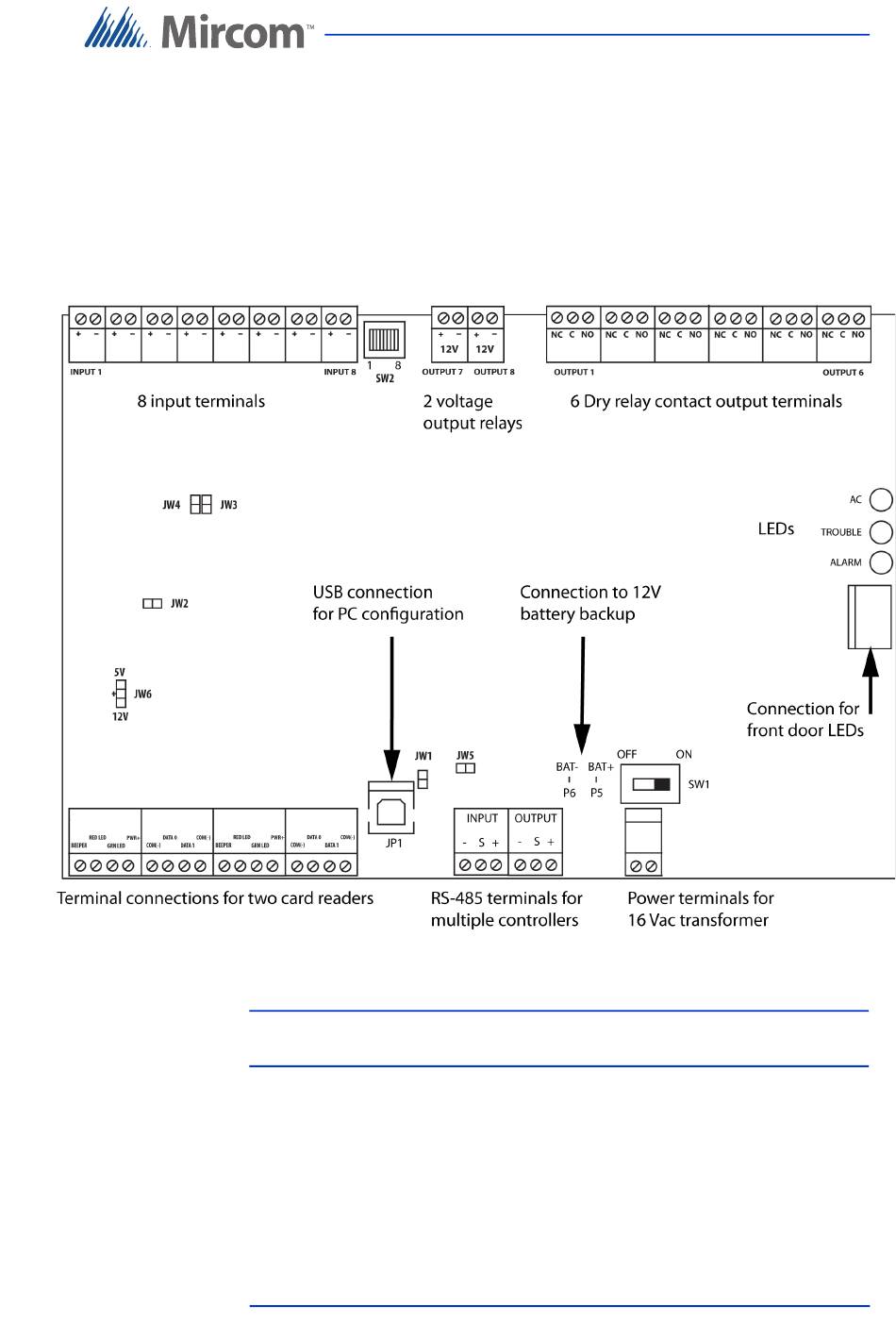

Figure 9.
Controller Board Connection Locations
Note:
See Figure 20 and Figure 21 for the terminal connections for the
two card readers.
TX3-CX Card Access System Installation and Operation Manual
Copyright 2015
Installation and Setup
37 (61)
