Installing the IP Module

34 (61)

LT-980

For additional documentation see the TX3 MDM Modem Module Installation

Instructions LT-971.

TX3-MDM Modem

Board and MD-993

Module location

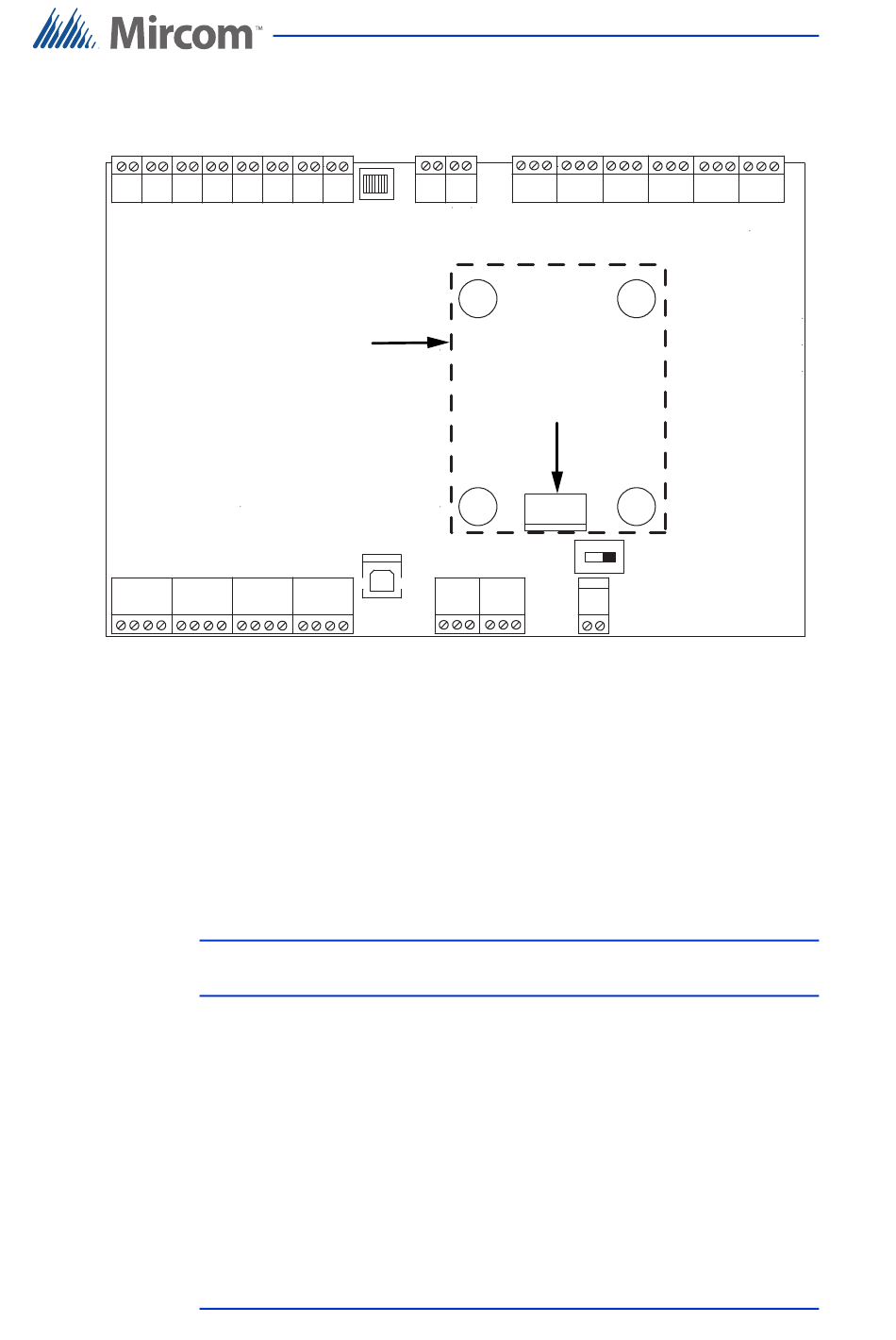

Figure 6.

Modem Board Location

The optional TX3-IP IP Module kit comes with the MD-921 IP Module which

allows a Card Access Controller to connect to an ethernet TCP/IP network as a

Master Node. Install the MD-921 in the location shown in Figure 7. Secure the IP

Module into the location using the supplied four screws.

For additional documentation see the MD-921 IP Module Installation

Instructions LT-1161.

Note:

The MD-921 IP Module can only be installed on the TX3-CX-2-A

or TX3-CX-2K-A models.

TX3-CX Card Access System Installation and Operation Manual

Interface connection

OFF

Installation and Setup

SW1

Version 2.2
