Active state

3.5.3

Outputs 1 to 6

44 (61)
LT-980
General purpose output. The general purpose output is for all other types of
outputs, such as turning on a light.
Outputs require active states. Each output is configured for the active state to
indicate one of the following:
• energized
• de-energized
Outputs 1 to 6 are relay contact programmable outputs with the following
characteristics. Figure 18 shows a sample connection.
• normally open (NO)
• normally closed (NC) available
• 125 VAC / 2 A
• 30 VDC / 1 A
Door Strike 1
Maglock 1
NC C NO NC C NO NC C NO NC C NO NC C NO NC C NO
OUTPUT 1 OUTPUT 2

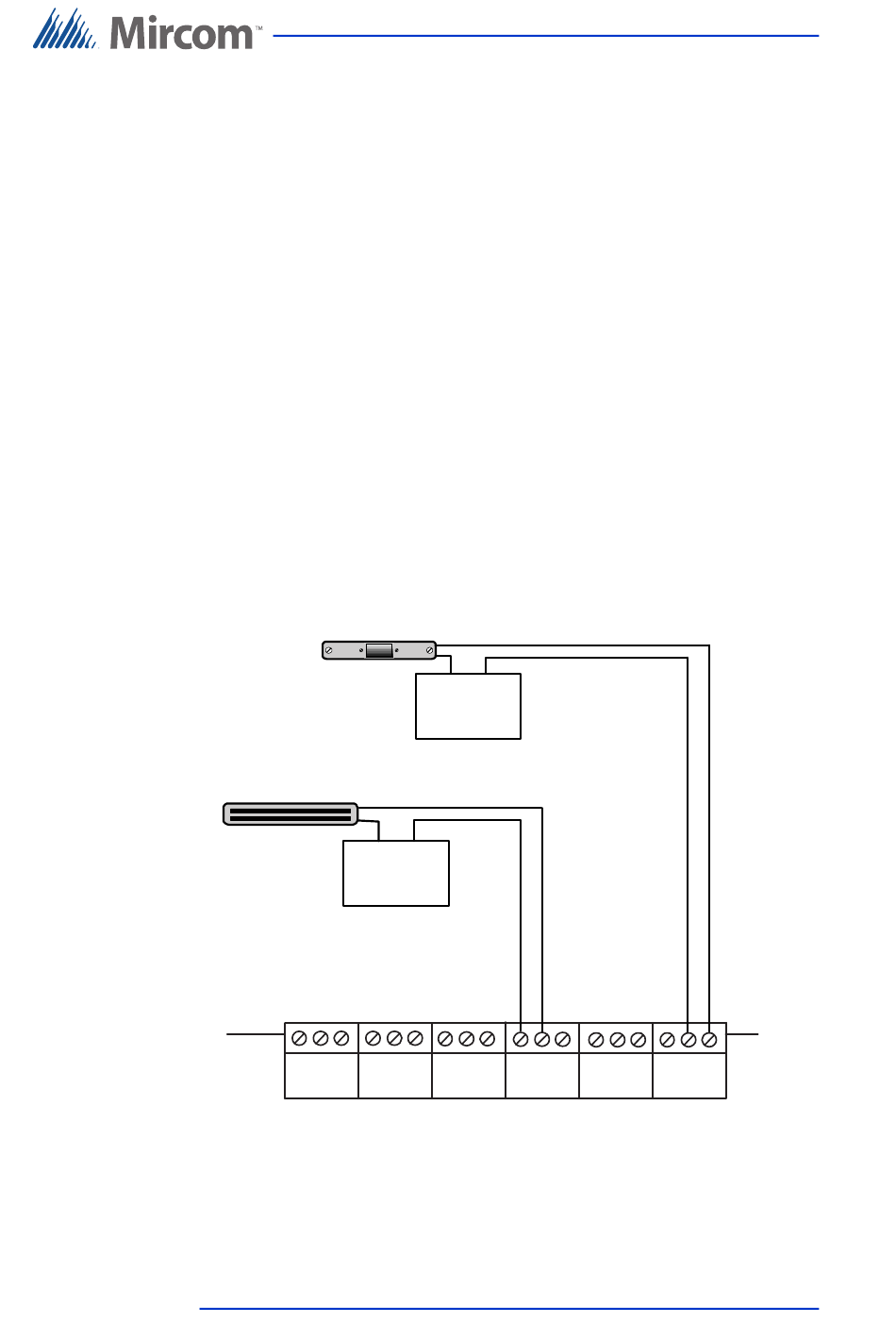

Figure 18. Controller Output Terminal Sample Connections
