One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the
FEATURES
Self contained board, including
synthesizer with integrated voltage controlled oscillator
(VCO), differential 122.88 MHz temperature controlled
crystal oscillator (TCXO), loop filter (5 kHz), USB interface,
and voltage regulators
Windows-based software allows control of synthesizer
functions from a PC
Externally powered by 6 V
EQUIPMENT NEEDED
Windows-based PC with USB port for evaluation software
System demonstration platform, serial only (SDP-S)
EVAL-SDP-CS1Z
controller board
Power supply (6 V)
Spectrum analyzer
50 Ω terminators
EVALUATION KIT CONTENTS
EV-ADF5355SD1Z
USB cable
ONLINE RESOURCES
Documents Needed
ADF5355
data sheet
EV-ADF5355SD1Z
user guide
PLL Software Installation Guide
Required Software
Analog Devices, Inc.,
ADF5355
higher (available for download at
www.analog.com/ADF5355)
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
ADF5355
Frequency Synthesizer for Phase-Locked Loops
ADF5355
frequency
software, Version 0.46.1 or

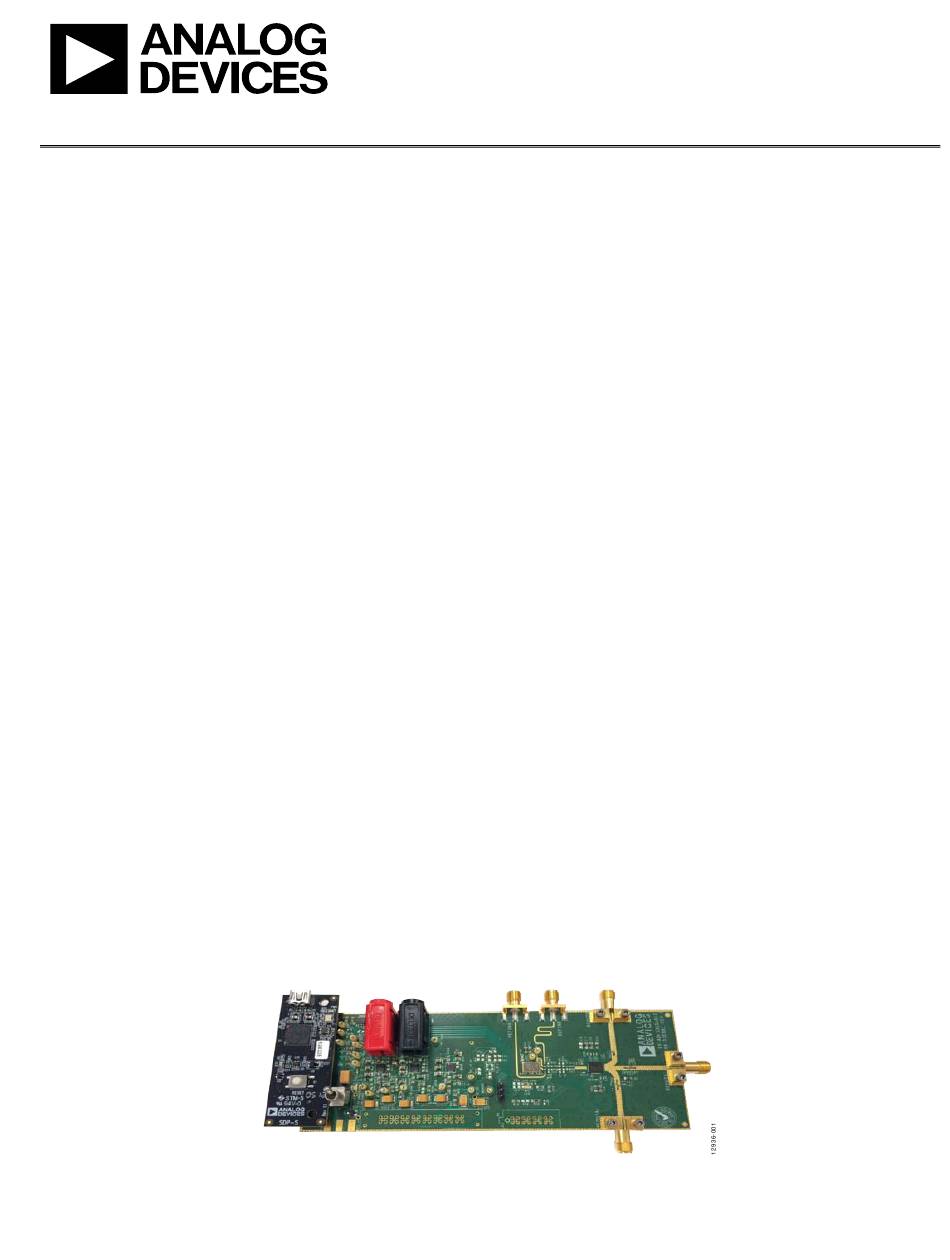

EVALUATION BOARD PHOTOGRAPH
Figure 1.
Rev. B | Page 1 of 19
EV-ADF5355SD1Z User Guide
GENERAL DESCRIPTION
The
EV-ADF5355SD1Z
frequency synthesizer with integrated VCO for phase-locked

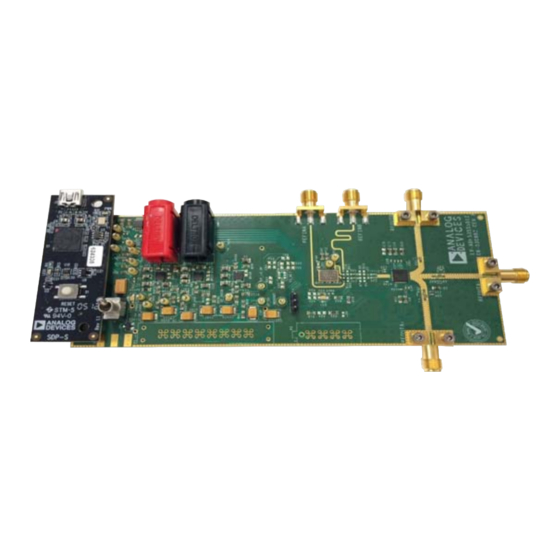

loops (PLLs). A photograph of the evaluation board is shown in
Figure 1. The evaluation board contains the
with integrated VCO, a differential 122.88 MHz reference TCXO, a
loop filter, a USB interface, power supply connectors, and sub-
miniature Version A (SMA) connectors. A USB cable is included to
connect the board to a PC USB port.
For easy programming of the synthesizer, download the
Windows®-based software from www.analog.com/ADF5355.
This board requires an
with the kit). The
SDP-S
ADF5355
device.
EV-ADF5355SD1Z
evaluates the performance of the
ADF5355
SDP-S
(shown in Figure 1, but not supplied
allows software programming of the
UG-802
ADF5355
synthesizer
Advertisement
Table of Contents
Related Manuals for Analog Devices EV-ADF5355SD1Z
Summary of Contents for Analog Devices EV-ADF5355SD1Z
-
Page 1: Features
EV-ADF5355SD1Z User Guide UG-802 One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com Evaluating the ADF5355 Frequency Synthesizer for Phase-Locked Loops FEATURES GENERAL DESCRIPTION EV-ADF5355SD1Z evaluates the performance of the... -
Page 2: Table Of Contents
UG-802 EV-ADF5355SD1Z User Guide TABLE OF CONTENTS Features ....................1 RF Output ..................4 Equipment Needed ................1 Loop Filter ..................4 Evaluation Kit Contents ..............1 Reference Source ................4 Online Resources ................1 Default Configuration ..............4 General Description ................. 1 Evaluation Board Setup ..............5 Evaluation Board Photograph ............ -
Page 3: Getting Started
EV-ADF5355SD1Z User Guide UG-802 GETTING STARTED SOFTWARE INSTALLATION PROCEDURES EVALUATION BOARD SETUP PROCEDURES See the ADF5355 product page for the EV-ADF5355SD1Z control To run the software, software. For the software installation procedure, see the Click the ADF5355 file on the desktop or from the Start Software Installation Guide. -
Page 4: Evaluation Board Hardware
UG-802 EV-ADF5355SD1Z User Guide EVALUATION BOARD HARDWARE EV-ADF5355SD1Z requires an SDP-S platform that uses the C60 = 22 nF, C59 = 0.47 μF, C61 = 10 nF, C73 = 10 pF EVAL-SDP-CS1Z (SDP-B is not recommended). R14 = 220 Ω, R1 = 470 Ω... -
Page 5: Evaluation Board Setup
EV-ADF5355SD1Z User Guide UG-802 EVALUATION BOARD SETUP SDP-S BOARD VSUPPLY EXTERNAL POWER SWITCH EXTERNAL DC SUPPLY POWER EXTERNAL DC SPECTRUM ANALYZER SIGNAL GENERATOR LOCK REFERENCE DETECT IN/OUT REFINB TCXO REFERENCE LOOP FILTER (OPTIONAL) REFINA ADF5355 (UNDERNEATH BOARD) RFOUTA+ RFOUTB RFOUTA–... -
Page 6: Evaluation Board Software
UG-802 EV-ADF5355SD1Z User Guide EVALUATION BOARD SOFTWARE MAIN CONTROLS Ensure that Reference freq equals the applied reference signal. The PFD frequency is calculated from the reference frequency, the R The Main Controls tab (see Figure 5) selects the RF and user counter, the reference doubler, and the reference divide by 2. -
Page 7: Evaluation And Test
EV-ADF5355SD1Z User Guide UG-802 EVALUATION AND TEST To evaluate and test the performance of the ADF5355, use the Figure 6 shows a phase noise plot of the SMA RFOUTA+ following procedure: equal to 6.8 GHz. Install the ADF5355 software (see the PLL Software –60... -
Page 8: Evaluation Board Schematics And Artwork
UG-802 EV-ADF5355SD1Z User Guide EVALUATION BOARD SCHEMATICS AND ARTWORK Figure 7. Evaluation Board Schematic—Page 1 Rev. B | Page 8 of 19... - Page 9 EV-ADF5355SD1Z User Guide UG-802 Figure 8. Evaluation Board Schematic—Page 2 Rev. B | Page 9 of 19...
- Page 10 UG-802 EV-ADF5355SD1Z User Guide 1.5kΩ RDATA 1.5kΩ DATA RMUXOUT 0Ω MUXOUT RCLK 1.5kΩ VIO_+3.3V TBD0603 SDA_0 100kΩ 100kΩ 24LC32A-I/MS SCL_0 0Ω PDRF 0Ω 0Ω 0Ω Figure 9. Evaluation Board Schematic—Page 3 Rev. B | Page 10 of 19...
- Page 11 EV-ADF5355SD1Z User Guide UG-802 Figure 10. Evaluation Board Silkscreen—Top Side Rev. B | Page 11 of 19...
- Page 12 UG-802 EV-ADF5355SD1Z User Guide Figure 11. Evaluation Board Silkscreen—Reverse Side Rev. B | Page 12 of 19...
- Page 13 EV-ADF5355SD1Z User Guide UG-802 Figure 12. Evaluation Board Layer 1—Primary Rev. B | Page 13 of 19...
- Page 14 UG-802 EV-ADF5355SD1Z User Guide Figure 13. Evaluation Board Layer 2—Ground Rev. B | Page 14 of 19...
- Page 15 EV-ADF5355SD1Z User Guide UG-802 Figure 14. Evaluation Board Layer 3—Power Rev. B | Page 15 of 19...
- Page 16 UG-802 EV-ADF5355SD1Z User Guide Figure 15. Evaluation Board Layer 4—Secondary Rev. B | Page 16 of 19...
-
Page 17: Ordering Information
EV-ADF5355SD1Z User Guide UG-802 ORDERING INFORMATION BILL OF MATERIALS Table 1. Reference Designator Description Value Manufacturer Part Number C1, C2, C7, C8, C10, C11, Ceramic multilayer capacitor, X5R 10 μF C2012X5R1E106K085AC C16, C20, C22 C9, C12, C21, C47 Ceramic capacitor, X7R 1 μF... - Page 18 PCB, SMA right angle jack connector Rosenberger 32K243-40ML5 RFOUTA− Momentary single pole single throw Alcoswitch TT11AGPC-1 switch IC, Analog Devices microwave wideband Analog Devices ADF5355BCPZ synthesizer with integrated VCO IC, 32 kB serial EEPROM Microchip 24LC32A-I/MS Technology, Inc. IC, 800 mA, ultralow noise/high power Analog Devices ADM7150ACPZ-5.0...
- Page 19 (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”) and Analog Devices, Inc.
