EVAL-ADGS1208SDZ/EVAL-ADGS1209SDZ
EVALUATION BOARD SOFTWARE QUICK START PROCEDURES
INSTALLING THE SOFTWARE
The EVAL-ADGS1208SDZ/EVAL-ADGS1209SDZ evaluation
boards use the Analog Devices analysis control evaluation
(ACE) software. ACE is a desktop software application that
facilitates the control and evaluation of multiple evaluation
systems.
ACE installs the required SDP drivers and .NET Framework 4
by default. Install ACE before connecting the SDP. Find ACE
software and comprehensive instructions on its installation and
use at www.analog.com/ACE.
After the installation finishes, the EVAL-ADGS1208SDZ/
EVAL-ADGS1209SDZ evaluation boards plugins appear when
opening ACE.
INITIAL SETUP
To set up the EVAL-ADGS1208SDZ/EVAL-ADGS1209SDZ
evaluation boards, complete the following steps:
1.
Connect the EVAL-ADGS1208SDZ/EVAL-ADGS1209SDZ
evaluation boards to the SDP board and connect the SDP
board to the PC via a USB cable.
2.
Turn on the evaluation board as described in the Power
Supplies section.
User Guide
3.
Run the ACE application. The EVAL-ADGS1208SDZ/
EVAL-ADGS1209SDZ boards plugins appear in the
attached hardware section of the Start tab.
4.
Double click the ADGS1208/ADGS1209SDZ plugin to open
the evaluation board view shown in Figure 3. This figure
shows the basic functionality and main functions of the
EVAL-ADGS1208SDZ/EVAL-ADGS1209SDZ evaluation
boards.

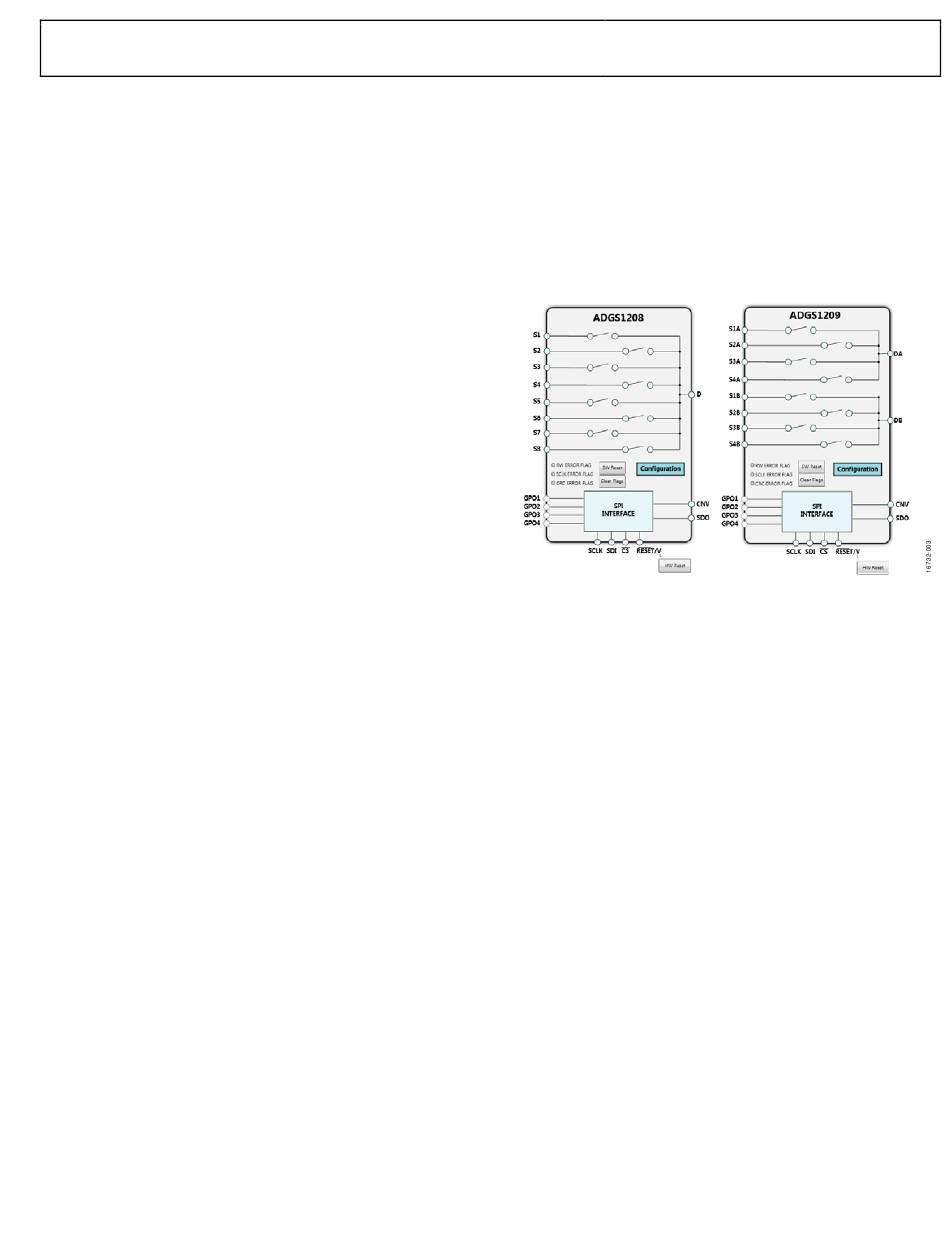

Figure 3. Evaluation Board View of the EVAL-ADGS1208SDZ/
Rev. 0 | Page 5 of 17
UG-1271
EVAL-ADGS1209SDZ
