Evaluation Board for the Integer-N and Fractional-N PLL Frequency Synthesizer
FEATURES
General-purpose PLL evaluation board, excluding the
frequency synthesizer, VCO, and loop filter
Compatible with integer-N PLLs in a 16-lead TSSOP package
ADF4110, ADF4111, ADF4112, ADF4113, ADF4116,
ADF4117, ADF4118, ADF4106,
Compatible with fractional-N PLLs in a 16-lead TSSOP package
ADF4153, ADF4154, ADF4156,
Accompanying software allows complete control of synthesizer
functions from a PC
EVALUATION KIT CONTENTS
EV-ADF411XSD1Z board
CD that includes
Self-installing software that allows users to control the
board and exercise all functions of the device
Electronic version of the frequency synthesizer data sheet
Electronic version of the
ADDITIONAL EQUIPMENT
PC running Windows XP or more recent version
SDP-S
board (system demonstration platform-serial)
ADF41XXBRUZ (see the Features section for applicable parts)
T-package VCO, loop filter components
Spectrum analyzer, oscilloscope (optional)
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
ADF4107
ADF4157
UG-161
user guide
EVALUATION BOARD
SDP-S
(TO BE PURCHASED
SEPARATELY)

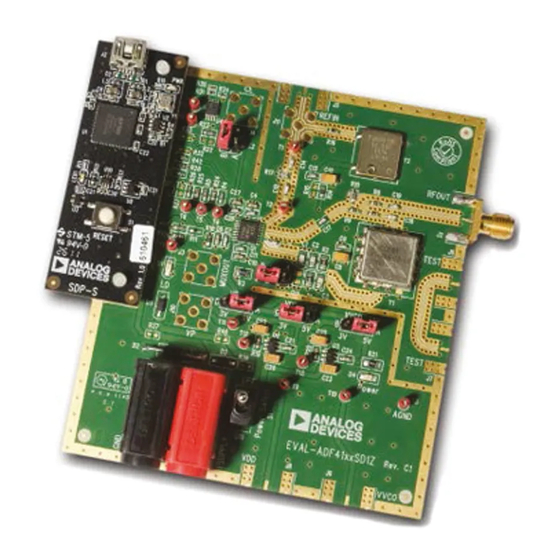

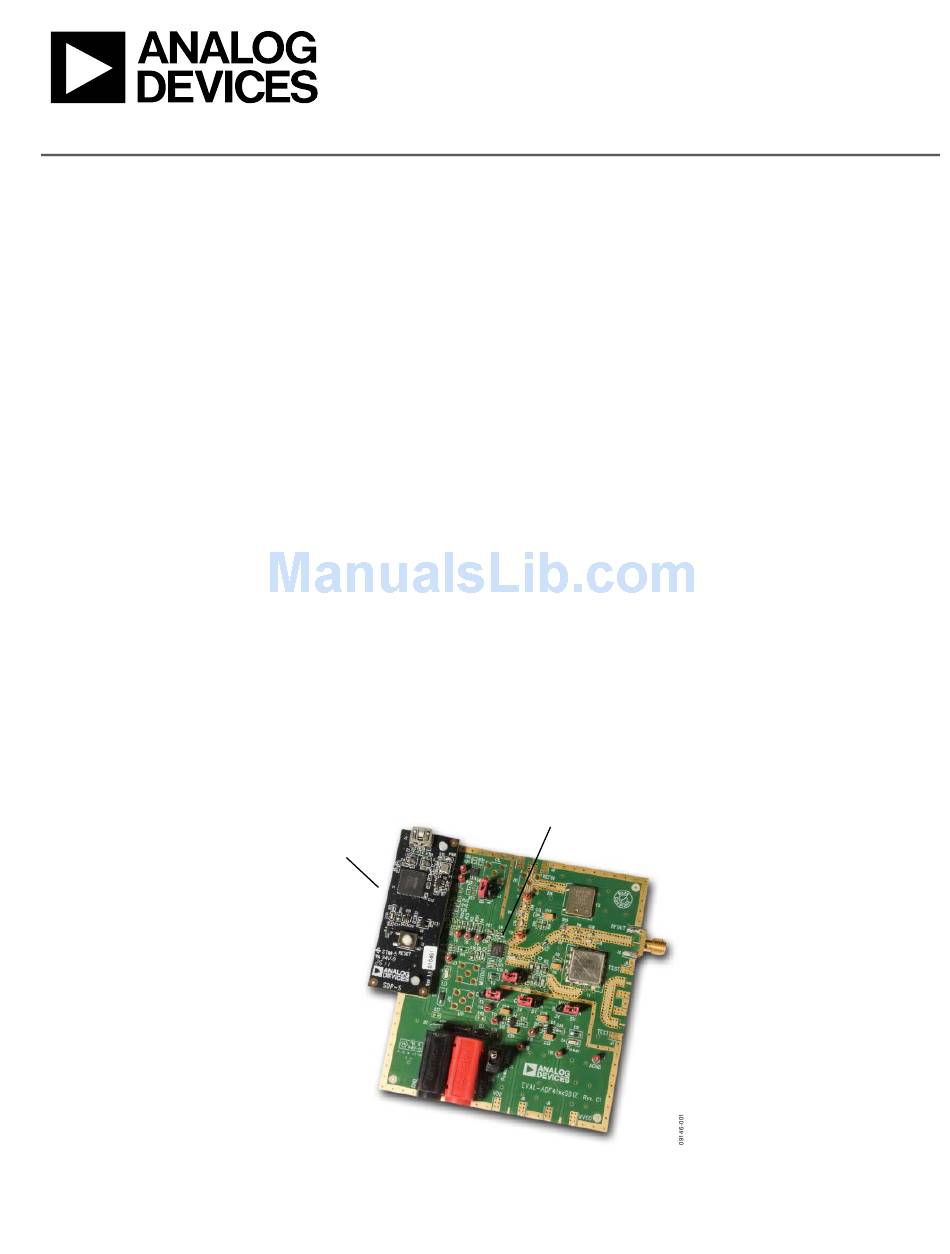

Figure 1. EV-ADF411XSD1Z with
EV-ADF411XSD1Z User Guide
DOCUMENTS NEEDED
Frequency synthesizer data sheet
UG-161
user guide
REQUIRED SOFTWARE
Analog Devices Int-N PLL software (Version 7 or higher)
Analog Devices Frac-N PLL software (Version 4 or higher)
ADIsimPLL
GENERAL DESCRIPTION
This evaluation board allows the user to evaluate the performance
of the ADF41XXBRUZ frequency synthesizers, which are available
in 16-lead TSSOP packages. The
software programming of the frequency synthesizer. Figure 1
shows the board, which contains footprints for a frequency
synthesizer, the power supplies, a TCXO reference, and an RF
output. There are also footprints for the passive PLL loop filter
components, a VCO, and an external reference SMA input.
The PLL loop filter values can be generated from the Analog
Devices, Inc.,
ADIsimPLL
setup, the ADF41XXBRUZ, T-package VCO, and loop filter
components should be inserted on the board.
Figure 1
shows the board with all necessary components inserted.
ADF41XXBRUZ
(SAMPLES TO BE PURCHASED SEPARATELY)
SDP-S
Rev. A | Page 1 of 28
UG-161
controller board allows
SDP-S
software tool. Prior to evaluation
