Evaluation Board for the
FEATURES
Self-contained board for generating RF frequencies
Flexibility for reference input, PFD frequency, and loop
bandwidth
Accompanying software allows complete control of
synthesizer functions from a PC
Flexibility for changing external inductor to allow different
VCO output frequency ranges
USB-/battery-operated 9 V supplies
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Arrow.com.
Downloaded from
ADF4360-8
Integrated PLL and VCO Frequency Synthesizer

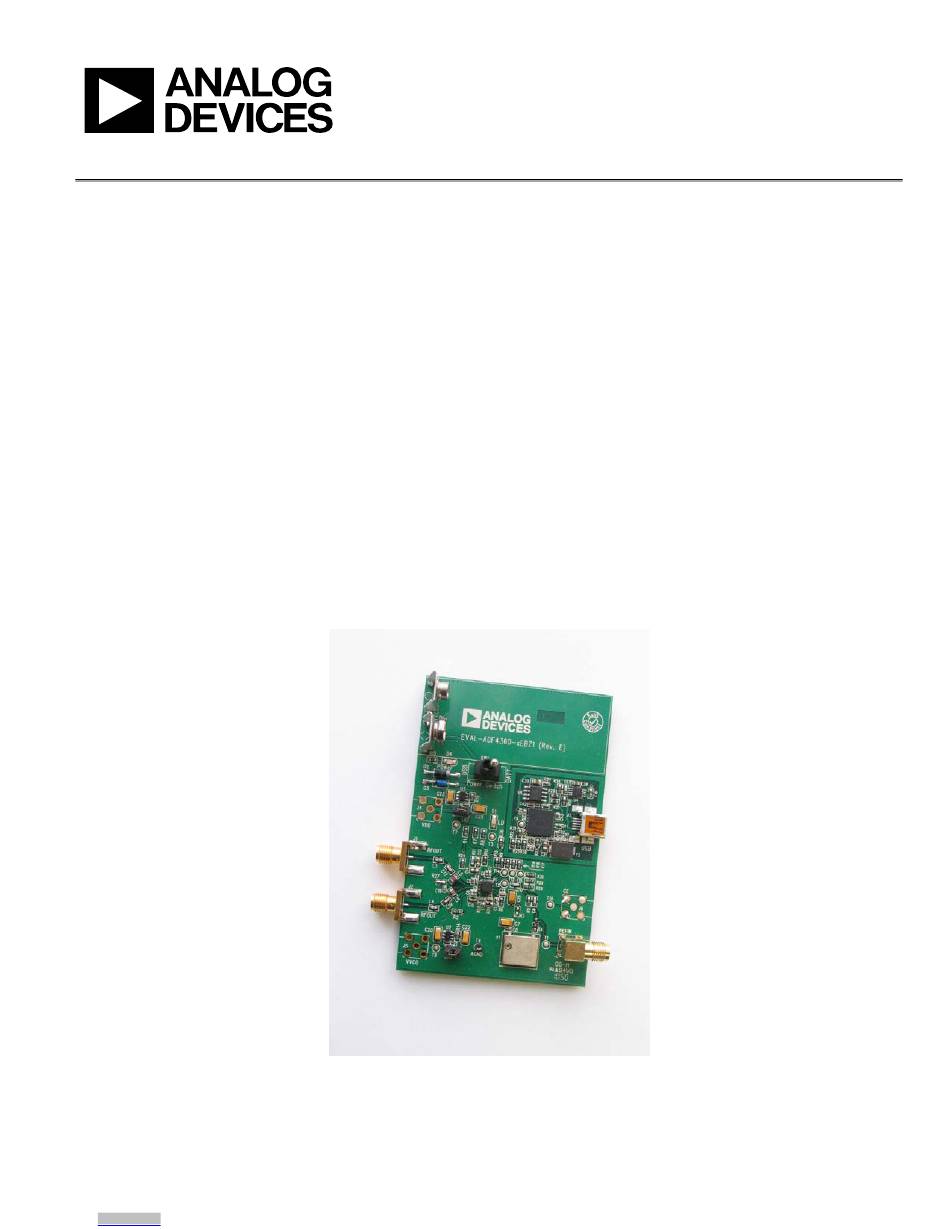

EVALUATION BOARD PHOTOGRAPH
Figure 1.
Rev. B | Page 1 of 16
Evaluation Board User Guide
GENERAL DESCRIPTION
The
EV-ADF4360-8EB1Z
board is designed to allow the user to
evaluate the performance of the ADF4360-8 frequency

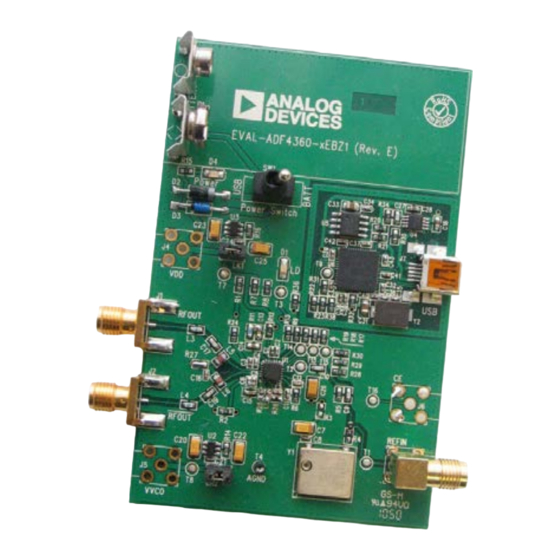

synthesizer consisting of an integrated PLL and VCO (see Figure 1).
It contains the ADF4360-8BCPZ, a USB connector, and SMA
connectors for the RF outputs. Unpopulated SMA footprints are
available for the power supplies, the chip enable (CE), and the
external reference input. The evaluation board also contains the
loop filter to complete the PLL. It can be modified as necessary for
the user's PLL requirements. A USB cable is included with the
board to allow software programmability.
The package also contains a CD with Windows® software to allow
quick, user-friendly programming of the synthesizer. The CD
contains numerous other PLL data sheets, technical notes, articles,
and ADIsimPLL™ V3.4, Analog Devices, Inc., PLL simulation
software. More information is available at www.analog.com/pll.
UG-105
Advertisement
Table of Contents
Related Manuals for Analog Devices EV-ADF4360-8EB1Z
Summary of Contents for Analog Devices EV-ADF4360-8EB1Z
-
Page 1: Features
The package also contains a CD with Windows® software to allow quick, user-friendly programming of the synthesizer. The CD contains numerous other PLL data sheets, technical notes, articles, and ADIsimPLL™ V3.4, Analog Devices, Inc., PLL simulation software. More information is available at www.analog.com/pll. EVALUATION BOARD PHOTOGRAPH Figure 1. -
Page 2: Table Of Contents
Related Links ................... 13 REVISION HISTORY 2/12—Rev. A to Rev. B Added Figure 5, Figure 6, and Figure 7; Renumbered Changed EVAL-ADF4360-8EBZ1 to EV-ADF4360-8EB1Z Sequentially ..................5 Throughout ..................1 Added Figure 8 and Figure 9 ............6 Replaced Programmable Software Settings Section with Using 11/11—Rev. -
Page 3: Evaluation Board Hardware
Evaluation Board User Guide UG-105 EVALUATION BOARD HARDWARE The evaluation board comes with a cable to connect to the USB RF OUTPUT STAGE port of a PC. The silkscreen for the evaluation board is shown The RF output stage of the board allows the user to insert a in Figure 2. - Page 4 UG-105 Evaluation Board User Guide To find the optimum frequency range for a given inductor, see Figure 4. Ensure that the desired frequency is between the two lines and determine the appropriate inductance needed. INDUCTANCE (nH) Figure 4. Output Center Frequency vs. External Inductor Value Rev.
-
Page 5: Evaluation Board Software Quick Start Procedures
The install wizard guides you through the installation process. The software is installed in a default directory called C:/Program Files/Analog Devices/ADF4360. The software requires Microsoft’s .NET Framework Version 3.5 or later to be installed on your machine. The installer automati- cally downloads the framework from the Microsoft website if you do not have this installed. -
Page 6: Windows 7 (64-Bit) Os
Browse my computer for driver software. Note that installing this driver package disables older versions Browse to C:\Program Files\Analog Devices\ADF4360. of Analog Devices PLL software; therefore, only install if needed. Click OK or Next. If prompted by Windows security, choose Install this driver software anyway. -
Page 7: Using The Evaluation Board Software
The main interface window opens (see Figure 10). Confirm that range of frequencies or hop between two set frequencies. Analog Devices RFG.L Eval Board connected is displayed at the top of the window. Otherwise, the software has no connection In the Latches to write section at the bottom of the window, to the evaluation board. -
Page 8: Changes To Figure 10
UG-105 Evaluation Board User Guide Figure 10. Software Front Panel Display Rev. B | Page 8 of 16 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from... -
Page 9: Evaluation Board Schematics
Evaluation Board User Guide UG-105 EVALUATION BOARD SCHEMATICS Figure 11. EV-ADF4360-8EB1Z Schematic Rev. B | Page 9 of 16 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from... -
Page 10: Changes To Figure 12
UG-105 Evaluation Board User Guide Figure 12. EV-ADF4360-8EB1Z Schematic (Continued) Rev. B | Page 10 of 16 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from... -
Page 11: Changes To Figure 13
Evaluation Board User Guide UG-105 Figure 13. EV-ADF4360-8EB1Z Schematic (Continued) Rev. B | Page 11 of 16 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from... -
Page 12: Ordering Information
UG-105 Evaluation Board User Guide ORDERING INFORMATION BILL OF MATERIALS Table 1. Reference Designator Part Description Manufacturer/Part No. C1, C3, C5, C29, C30, C32, C37, Capacitor, 0402, 0.1 µF, 16 V Kemet C0402C104K4RAC C38, C39, C40, C41, C42, C43 C2, C4, C6, C8 Capacitor, 0402, 10 pF, 50 V Kemet C0402C100J5GACTU Capacitor, Case A, 22 µF, 6.3 V... -
Page 13: Related Links
Evaluation Board User Guide UG-105 Reference Designator Part Description Manufacturer/Part No. Integrated integer-N synthesizer Analog Devices ADF4360-8BCPZ U2, U3 High accuracy low dropout linear 3 V regulator Analog Devices ADP3300ARTZ-3 ADP3334 adjustable LDO regulator Analog Devices ADP3334ARMZ IC serial EEPROM 8-SOIC... - Page 14 UG-105 Evaluation Board User Guide NOTES Rev. B | Page 14 of 16 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
- Page 15 Evaluation Board User Guide UG-105 NOTES Rev. B | Page 15 of 16 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
