One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for ADF4360-7 Integrated PLL and VCO Frequency Synthesizer
FEATURES
Self-contained board for generating RF frequencies
Flexibility for reference input, PFD frequency, and loop
bandwidth
Accompanying software allows complete control of
synthesizer functions from a PC
Flexibility for changing the external inductor to allow
different VCO output frequency ranges
USB/battery-operated 9 V supplies
Typical phase noise performance of −143 dBc/Hz at 3 MHz offset
Typical spurious performance of −70 dBc at 200 kHz offset
(900 MHz output)
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Arrow.com.
Downloaded from
Evaluation Board User Guide
GENERAL DESCRIPTION
The EV-ADF4360-7EB1Z evaluation board is designed to allow
the user to evaluate the performance of the
synthesizer consisting of an integrated PLL and VCO (see Figure 1).
It contains the ADF4360-7BCPZ, a USB connector, and SMA
connectors for the RF outputs. Unpopulated SMA footprints are
available for the power supplies, the chip enable (CE), and the
external reference input. The evaluation board also contains
the loop filter to complete the PLL. It can be modified as necessary
for the PLL requirements of the user. A cable is included with
the board to connect a PC parallel port to allow software pro-
grammability.
The package also contains a CD with Windows® software to allow
quick, user-friendly programming of the synthesizer. The CD
contains additional PLL data sheets, technical notes, articles, and
ADIsimPLL™ V3.4 (Analog Devices, Inc., PLL simulation
software). More information is available at www.analog.com/pll.

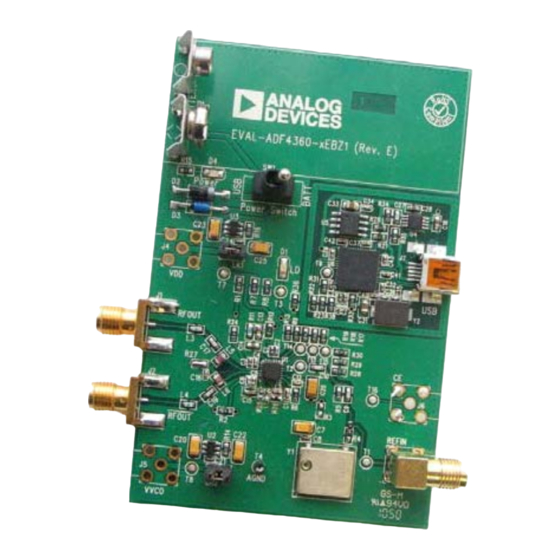

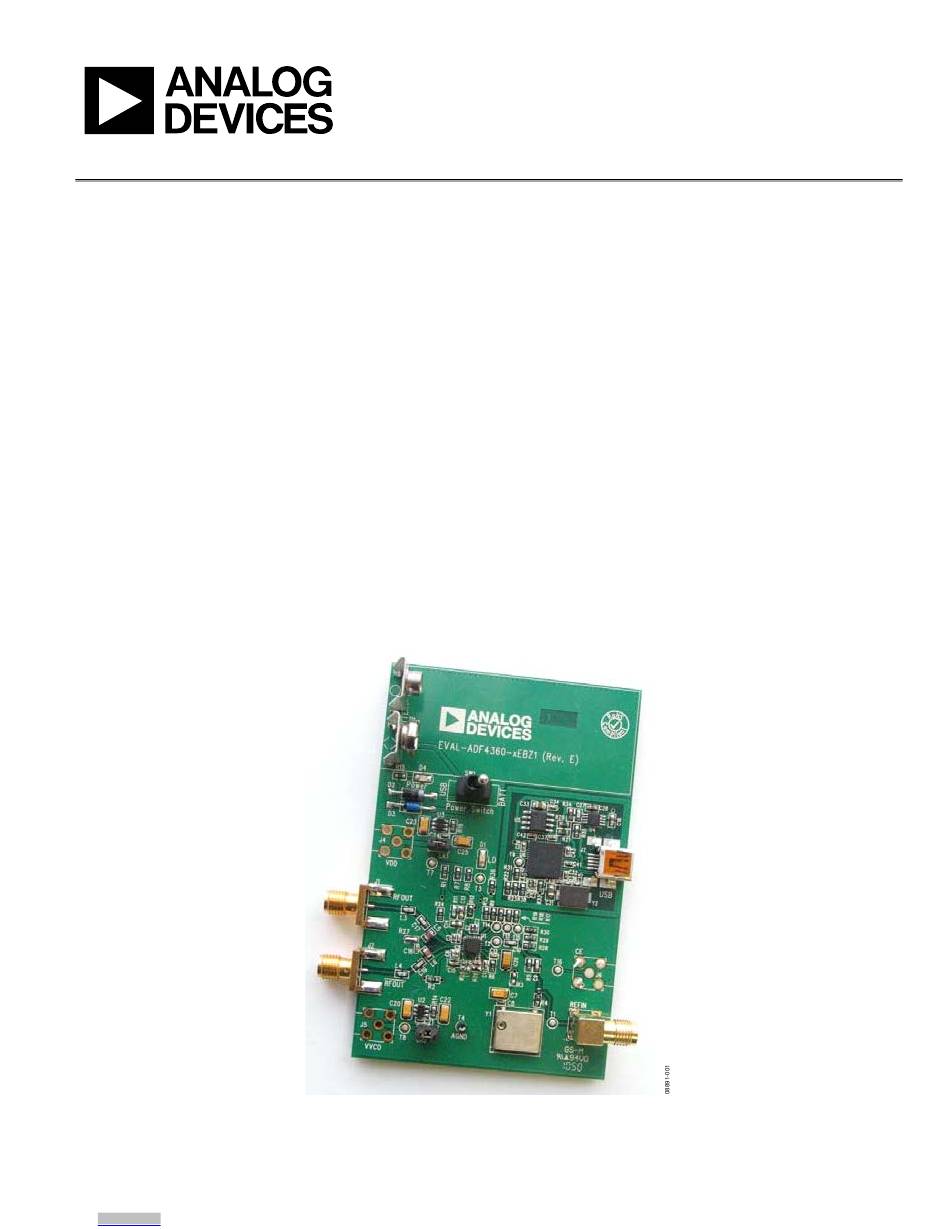

EVALUATION BOARD PHOTOGRAPH
Figure 1.
Rev. B | Page 1 of 16
UG-104
ADF4360-7
frequency
Advertisement
Table of Contents
Related Manuals for Analog Devices EV-ADF4360-7EB1Z
Summary of Contents for Analog Devices EV-ADF4360-7EB1Z
-
Page 1: Features
One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com Evaluation Board for ADF4360-7 Integrated PLL and VCO Frequency Synthesizer FEATURES GENERAL DESCRIPTION The EV-ADF4360-7EB1Z evaluation board is designed to allow Self-contained board for generating RF frequencies the user to evaluate the performance of the ADF4360-7... -
Page 2: Table Of Contents
Added Evaluation Board Software Quick Start Procedures Throughout ..................5 Section ....................5 Changed EVAL-ADF4360-xEBZ1 to EV-ADF4360-7EB1Z ..7 Changes to Using the Evaluation Board Software Section ..7 Changes to Evaluation Board Schematic Section......9 Changes to Bill of Materials Section ..........12 7/10—Revision 0: Initial Version... -
Page 3: Evaluation Board Hardware
Evaluation Board User Guide UG-104 EVALUATION BOARD HARDWARE The evaluation board comes with a cable to connect to the Users may provide their own power supplies using the J4 and J5 USB port of a PC. The silkscreen and cable diagram for the connectors, as shown in Figure 2. -
Page 4: External Inductor Options
UG-104 Evaluation Board User Guide EXTERNAL INDUCTOR OPTIONS ADF4360-7 uses external inductors (L1 and L2) to set up To find the optimum frequency range for a given inductor, see the LC tank circuit of the VCO. The evaluation board has a Figure 4. -
Page 5: Evaluation Board Software Quick Start Procedures
EVALUATION BOARD SOFTWARE QUICK START PROCEDURES The control software and USB drivers for EV-ADF4360-7EB1Z Click Continue Anyway when asked about Windows Logo accompany the EV-ADF4360-7EB1Z on a CD. To install the testing. software, use the following steps: If the install was successful, the message box in Figure 6 appears. -
Page 6: Windows Vista Os And Windows 7 (32-Bit) Os
On the Update Driver Software dialog box, choose Browse my computer for driver software. For Windows Vista or Windows 7 (32-bit), you need to Browse to C:\Program Files\Analog Devices\ADF4360. manually install the drivers. To do so, use the following steps: Click OK or Next. -
Page 7: Changed Eval-Adf4360-Xebz1 To Ev-Adf4360-7Eb1Z
The control software for the EV-ADF4360-7EB1Z accompanies frequency. The user can input the desired output frequency the EV-ADF4360-7EB1Z on a CD. To install the software, see in the RF Output Frequency text box (in megahertz). the Evaluation Board Software Quick Start Procedures section. - Page 8 UG-104 Evaluation Board User Guide Figure 10. Software Front Panel Display Rev. B | Page 8 of 16 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
-
Page 9: Evaluation Board Schematic
Evaluation Board User Guide UG-104 EVALUATION BOARD SCHEMATIC Figure 11. EV-ADF4360-7EB1Z Schematic Rev. B | Page 9 of 16 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from... - Page 10 UG-104 Evaluation Board User Guide Figure 12. EV-ADF4360-7EB1Z Schematic (Continued) Rev. B | Page 10 of 16 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
- Page 11 Evaluation Board User Guide UG-104 Figure 13. EV-ADF4360-7EB1Z Schematic (Continued) Rev. B | Page 11 of 16 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
-
Page 12: Ordering Information
UG-104 Evaluation Board User Guide ORDERING INFORMATION BILL OF MATERIALS Table 1. Reference Designator Part Description Manufacturer/Part No. C1, C3, C5, C29, C30, C32, Capacitor, 0402, 0.1 µF, 16 V Kemet C0402C104K4RAC C37, C38, C39, C40, C41, C42, C43 C2, C4, C6, C8 Capacitor, 0402, 10 pF, 50 V Kemet C0402C100J5GACTU Capacitor, Case A, 22 µF, 6.3 V... - Page 13 Terminal, PCB, red, PK100 Vero Technologies, Ltd. 20-313137 T9 to T12 Test point (not inserted) Integrated integer-N synthesizer Analog Devices, ADF4360-7BCPZ High accuracy low dropout linear 5 V regulator Analog Devices, ADP3300ARTZ-3 High accuracy low dropout linear 3 V regulator Analog Devices, ADP3300ARTZ-3...
- Page 14 UG-104 Evaluation Board User Guide NOTES Rev. B | Page 14 of 16 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
- Page 15 Evaluation Board User Guide UG-104 NOTES Rev. B | Page 15 of 16 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
- Page 16 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
