Evaluating the
FEATURES
Self contained board, including
synthesizer with integrated voltage controlled oscillator
(VCO), differential 122.88 MHz temperature controlled
crystal oscillator (TCXO), loop filter (5 kHz), USB interface,
and voltage regulators
Windows-based software allows control of synthesizer
functions from a PC
Externally powered by 6 V
EQUIPMENT NEEDED
Windows-based PC with USB port for evaluation software
System demonstration platform, serial only (SDP-S)
EVAL-SDP-CS1Z
controller board
Power supply (6 V)
Spectrum analyzer
50 Ω terminators
EVALUATION KIT CONTENTS
EV-ADF5356SD1Z
USB cable
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
ADF5356
Frequency Synthesizer for Phase-Locked Loops
ADF5356
frequency

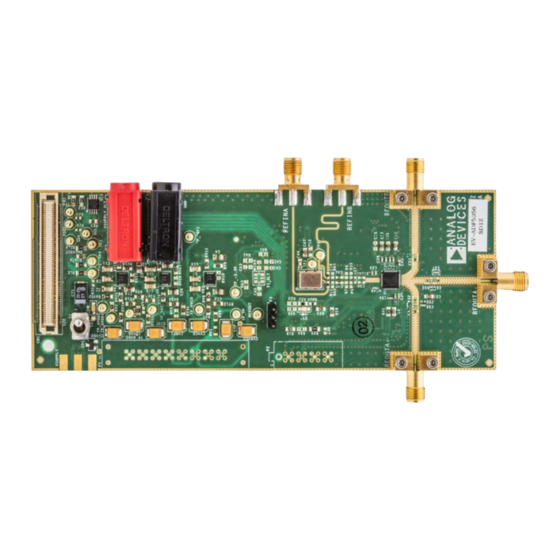

EV-ADF5356SD1Z EVALUATION BOARD PHOTOGRAPH
Rev. 0 | Page 1 of 19
EV-ADF5356SD1Z
ONLINE RESOURCES
Documents Needed
ADF5356
data sheet
EV-ADF5356SD1Z user guide
PLL Software Installation Guide
Required Software
Analog Devices, Inc.,
higher (download at www.analog.com/ADF5356)
GENERAL DESCRIPTION
The EV-ADF5356SD1Z evaluates the performance of the
ADF5356
frequency synthesizer with integrated VCO for phase-
locked loops (PLLs). A photograph of the evaluation board is
shown in Figure 1. The evaluation board contains the
synthesizer with integrated VCO, a differential 122.88 MHz
reference TCXO, a loop filter, a USB interface, power supply
connectors, and subminiature Version A (SMA) connectors. A
USB cable is included to connect the board to a PC USB port.
For easy programming of the synthesizer, download the
Windows®-based software from www.analog.com/ADF5356.
This board requires an
with the kit. The
SDP-S
ming of the
ADF5356
For full details on the ADF5356, see the
which must be consulted in conjunction with this user guide
when using this evaluation board.
Figure 1.
User Guide
ADF5356
software, Version 1.1.6 or
SDP-S
controller board that is not supplied
controller board allows software program-
device.
ADF5356
data sheet,
UG-1087
ADF5356
