One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for the Integer-N PLL Frequency Synthesizer
FEATURES
Self-contained board for generating RF frequencies
Contains
ADF4108
8 GHz frequency synthesizer IC
Accompanying software allows complete control of
synthesizer functions from a PC
EVALUATION KIT CONTENTS
EV-ADF4108EB1Z
board
CD that includes:
Self-installing software that allows users to control the
board and exercise all functions of the device
Electronic version of the
Electronic version of the
ADDITIONAL EQUIPMENT
PC running Windows XP or more recent version
Spectrum analyzer
Oscilloscope (optional)
Power supplies of 5.5 V and 15 V
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
ADF4108
data sheet
UG-160
user guide
EVALUATION BOARD
Evaluation Board User Guide
DOCUMENTS NEEDED
ADF4108
data sheet
REQUIRED SOFTWARE
Analog Devices Int-N software (Version 7 or higher)
ADIsimPLL
GENERAL DESCRIPTION
This board is designed, to let the user evaluate the performance of
the
ADF4108
(PLLs). Figure 1 shows the board, which contains the
synthesizer, an SMA connector for the reference input, power
supplies, a USB interface, and RF outputs. There is also an
active loop filter and a VCO on board. The board has the option
to use an alternate loop filter and VCO by connecting to the
SMA connectors, VTUNE, and CPOUT. The evaluation kit
contains software that is compatible with Windows® XP and
later versions to allow easy programming of the synthesizer.
The USB interface allows software programming of the
device. A USB cable is included with the board to allow software
programmability.

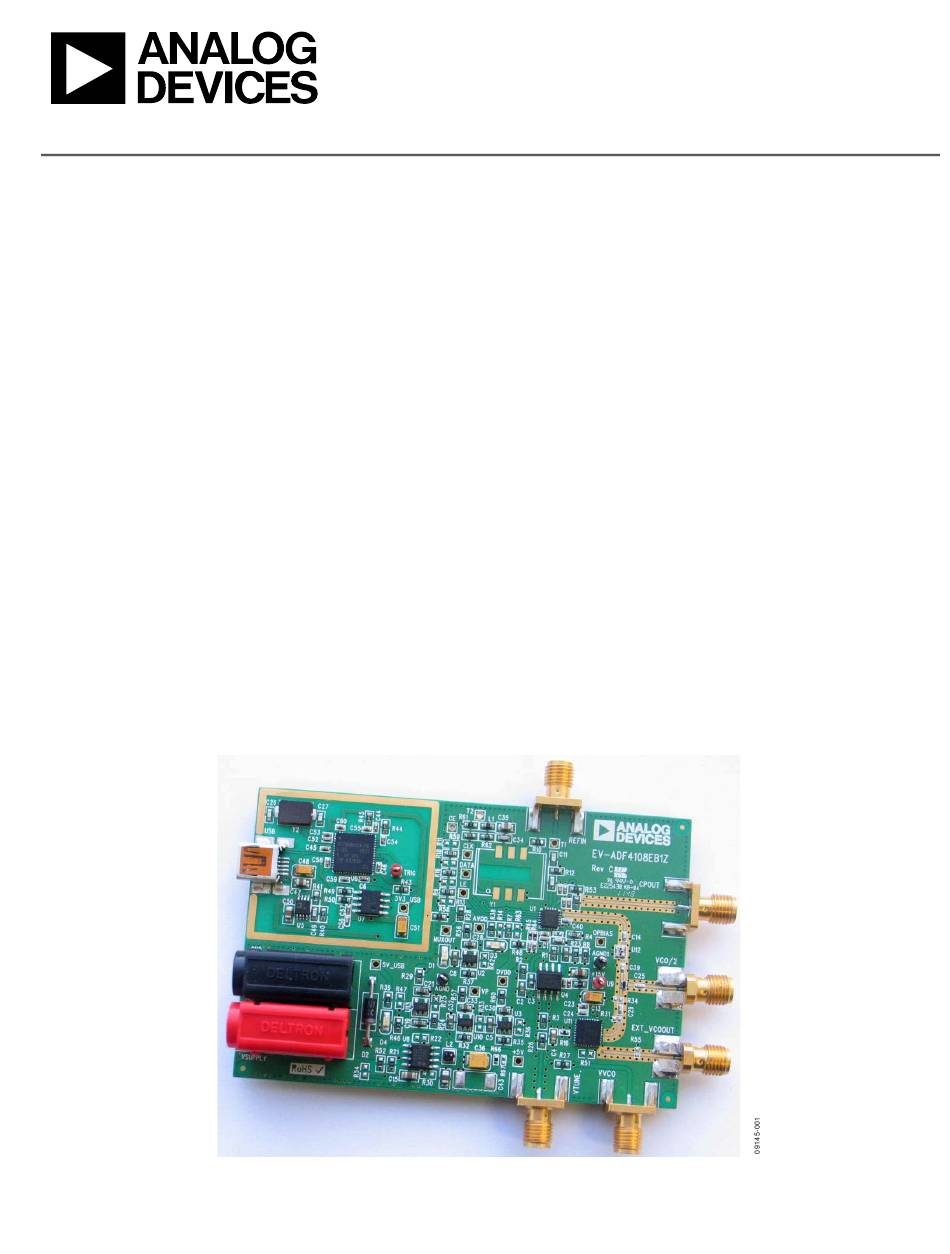

Figure 1.
EV-ADF4108EB1Z
Rev. A | Page 1 of 20
frequency synthesizer for phase-locked loops
UG-160
ADF4108
ADF4108

Advertisement

loading
Need help?

Need help?

Do you have a question about the EV-ADF4108EBIZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Analog Devices EV-ADF4108EBIZ

  • Page 1 ADF4108 data sheet Contains ADF4108 8 GHz frequency synthesizer IC REQUIRED SOFTWARE Accompanying software allows complete control of Analog Devices Int-N software (Version 7 or higher) synthesizer functions from a PC ADIsimPLL EVALUATION KIT CONTENTS GENERAL DESCRIPTION EV-ADF4108EB1Z board This board is designed, to let the user evaluate the performance of...
  • Page 2 UG-160 Evaluation Board User Guide TABLE OF CONTENTS Features ....................1 Input Signals...................4 Evaluation Kit Contents ..............1 Output Signals ................4 Additional Equipment ..............1 Default Operation .................4 Documents Needed ................1 Evaluation Board Setup Procedure ..........5 Required Software ................1 Software Installation ..............5 General Description .................
  • Page 3 Evaluation Board User Guide UG-160 QUICK START GUIDE Use the following steps to evaluate the ADF4108 device: Install the Int-N software. Follow the hardware driver installation procedure. Connect the power supplies to the EV-ADF4108EB1Z: The 5.5 V power supply to the on-board banana connectors. The 15 V power supply to test points labeled +15 V and AGND1.
  • Page 4 UG-160 Evaluation Board User Guide EVALUATION BOARD HARDWARE The evaluation board comes with a mini-USB cable to connect to OUTPUT SIGNALS the USB port of a PC. The evaluation board silkscreen is shown The VCO output is available at EXT_VCOOUT through a in Figure 2.
  • Page 5 SOFTWARE INSTALLATION Use the following steps to install the USB drivers and Int-N software. Install the Analog Devices Int-N software by double- clicking ADI_Int-N_Setup.msi. If you are using Windows XP, follow the instructions in the Windows XP Software Installation Guide section (see Figure 3 to Figure 7).
  • Page 6 UG-160 Evaluation Board User Guide Figure 7. Windows XP Int-N Software Installation, Installation Complete Figure 10. Windows Vista/7 Int-N Software Installation, Confirm Installation Click Close. Click Next. Windows Vista and Windows 7 Software Installation Guide Figure 11. Windows Vista/7 Int-N Software Installation, Start Installation Figure 8.
  • Page 7 Figure 14. Windows XP USB Adapter Board Driver Installation, Installation Click Finish. Options Click Next. Note that the window in Figure 14 may list Analog Devices RFG.L Eval Board instead of ADF4xxx USB Adapter Board. Rev. A | Page 7 of 20...
  • Page 8 EVALUATION BOARD SOFTWARE The control software for the EV-ADF4108EB1Z accompanies Confirm that “Analog Devices RFG.L Eval Board connected” is EV-ADF4108EB1Z on a CD. To install the software, see the displayed at the bottom left of the window (see Figure 17).
  • Page 9 Evaluation Board User Guide UG-160 The Main Controls tab controls the PLL settings (see Figure 18). In the Registers tab, you can manually input the desired value to be written to the registers. Use the RF Settings section to control the output frequency. You can type the desired output frequency in the RF VCO Output In the Sweep and Hop tab, you can make the device sweep a Frequency text box (in MHz).
  • Page 10 Select the USB board and the ADF4108 device in the Select Device and Connection tab of the software front Install the Analog Devices Int-N software panel window. ADIsimPLL to generate the loop filter component 10. On the Main Controls tab, set the VCO center frequency values if a different loop filter is required.
  • Page 11 Evaluation Board User Guide UG-160 SIGNAL GENERATOR POWER SUPPLIES REFERENCE IN (REFERENCE OUT) TCXO CPOUT USB INTERFACE AGND ACTIVE LOOP LOCK +15V FILTER DETECT VCO/2 SPECTRUM ANALYZER EXTERNAL DC POWER POWER EXT_VCOOUT SUPPLIES EXTERNAL DC SUPPLY VTUNE VVCO Figure 20. Typical Evaluation Setup Rev.
  • Page 12 UG-160 Evaluation Board User Guide EVALUATION BOARD SCHEMATICS AND ARTWORK Figure 21. Evaluation Board Schematic (Page 1) Rev. A | Page 12 of 20...
  • Page 13 Evaluation Board User Guide UG-160 Figure 22. Evaluation Board Schematic (Page 2) Rev. A | Page 13 of 20...
  • Page 14 UG-160 Evaluation Board User Guide Figure 23. Evaluation Board Schematic (Page 3) Rev. A | Page 14 of 20...
  • Page 15 Evaluation Board User Guide UG-160 Figure 24. Evaluation Board Schematic (Page 4) Rev. A | Page 15 of 20...
  • Page 16 UG-160 Evaluation Board User Guide Figure 25. Layer 1 (Component Side) Figure 26. Layer 2 (Ground Plane) Rev. A | Page 16 of 20...
  • Page 17 Evaluation Board User Guide UG-160 Figure 27. Layer 3 (Power/Ground Plane) Figure 28. Layer 4 (Solder Side) Rev. A | Page 17 of 20...
  • Page 18 UG-160 Evaluation Board User Guide ORDERING INFORMATION BILL OF MATERIALS Table 1. Reference Designator Part Description +5V, +15V, 3V3_USB, 5V_USB, AVDD, Red test point CLK, DATA, DVDD, MUXOUT, OPBIAS, RIG, VP AGND, AGND1 Black test point Capacitor, 0603, 50 V, 680 pF, COG/NPO Capacitor, 0603, X7R, 50 V, 68 nF Capacitor, 0603, X7R, 50 V, 1.8 nF Capacitor, 0603, X7R, 50 V, 2.7 nF...
  • Page 19 Evaluation Board User Guide UG-160 Reference Designator Part Description Resistor, 0603, 49.9 Ω R16, R64, R65, Resistor, 0402, 0 Ω Resistor, 0603, 10 Ω R39 R49, R50, Resistor, 0603, 2.2 kΩ Resistor, 0603, 140 kΩ Resistor, 0603, 78.7 kΩ R44, R45, Resistor, 0603, 100 kΩ...
  • Page 20 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
