One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for ADF4360-9 Integrated PLL and VCO Frequency Synthesizer

FEATURES

Self-contained board for generating RF frequencies
Flexibility for reference input, PFD frequency, and loop
bandwidth
Accompanying software allows complete control of
synthesizer functions from a PC
Flexibility for changing external inductor to allow different
VCO output frequency ranges
USB-/battery-operated 9 V supplies
Typical DIVOUT jitter performance of 1.4 ps
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.

GENERAL DESCRIPTION

The
user to evaluate the performance of the
synthesizer consisting of an integrated PLL and VCO (see
Figure 1). It contains the ADF4360-9BCPZ, a USB connector,
and SMA connectors for the RF outputs. Unpopulated SMA
footprints are available for the power supplies, lock detect, and
the external reference input. The evaluation board also contains
the loop filter to complete the PLL. It can be modified as necessary
for the user's PLL requirements. A USB cable is included with
the board to allow software programmability.
The package also contains a CD with Windows® software to allow
quick, user-friendly programming of the synthesizer. The CD
contains numerous other PLL data sheets, technical notes, articles,
and ADIsimPLL™ V3.4, Analog Devices, Inc., PLL simulation
software. More information is available at www.analog.com/pll.

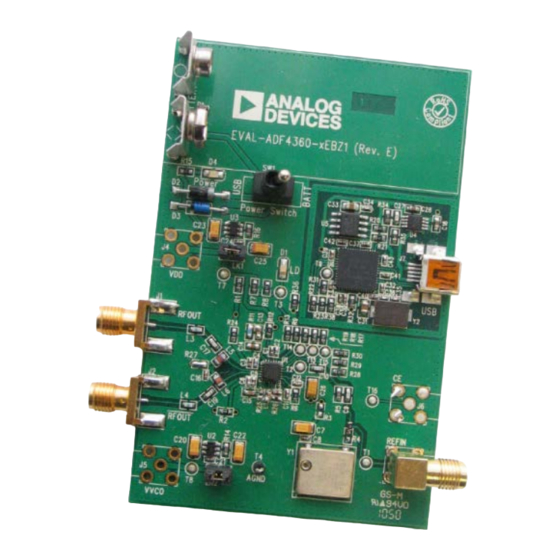

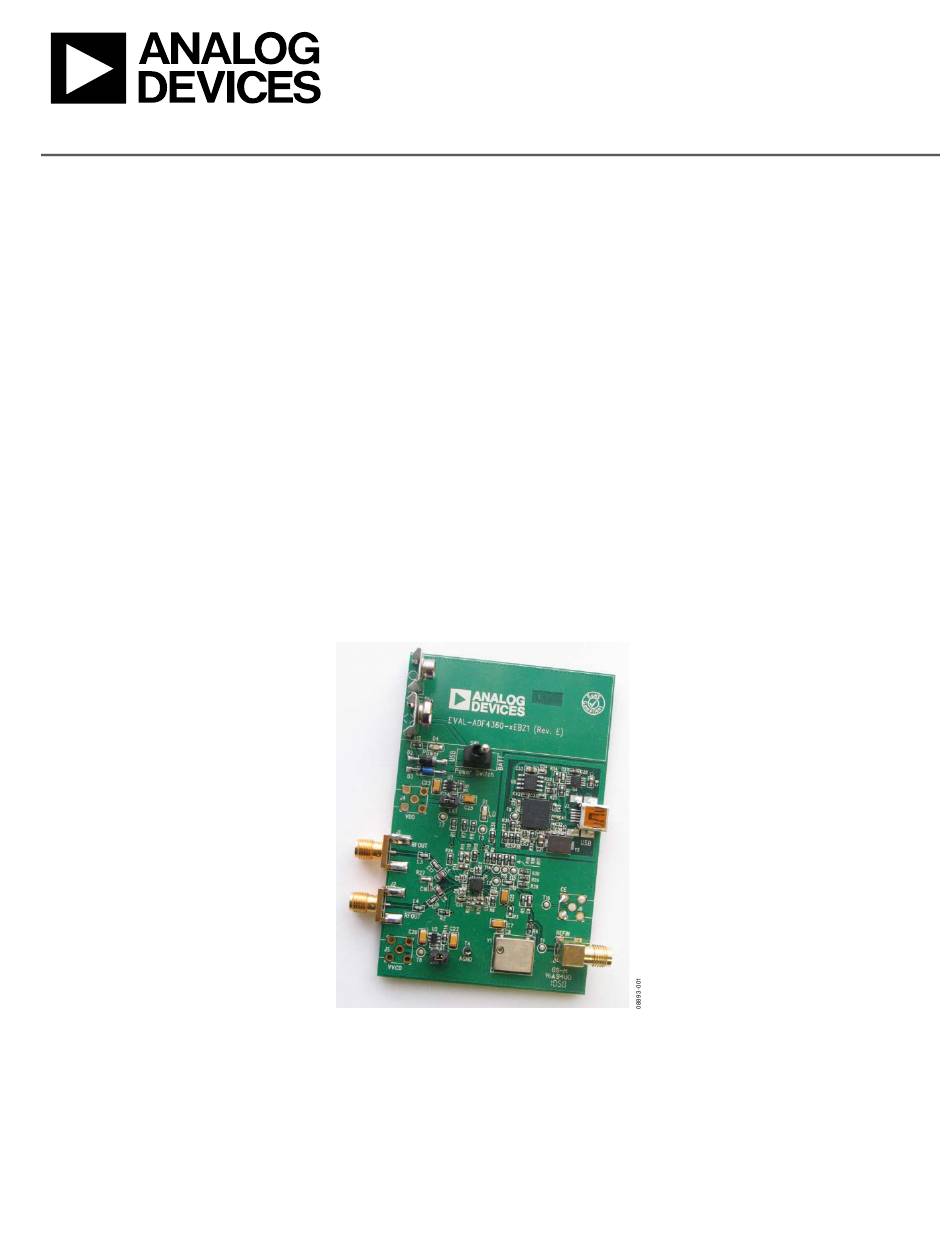

EVALUATION BOARD PHOTOGRAPH

Figure 1.
Rev. C | Page 1 of 16
Evaluation Board User Guide
EV-ADF4360-9EB1Z
board is designed to allow the
UG-106
ADF4360-9
frequency

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV-ADF4360-9EB1Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Analog Devices EV-ADF4360-9EB1Z

  • Page 1: Features

    The package also contains a CD with Windows® software to allow quick, user-friendly programming of the synthesizer. The CD contains numerous other PLL data sheets, technical notes, articles, and ADIsimPLL™ V3.4, Analog Devices, Inc., PLL simulation software. More information is available at www.analog.com/pll. EVALUATION BOARD PHOTOGRAPH Figure 1.
  • Page 2: Table Of Contents

    Evaluation Board Software Quick Start Procedures ....5 Related Links ................... 13 REVISION HISTORY Changes to Figure 11................. 9 2/12—Rev. B to Rev. C Changed EVAL-ADF4360-9EBZ1 to EV-ADF4360-9EB1Z Changes to Figure 12..............10 Throughout ..................1 Changes to Figure 13..............11 Changes to Table 1 ................12 11/11—Rev.
  • Page 3: Evaluation Board Hardware

    Evaluation Board User Guide UG-106 EVALUATION BOARD HARDWARE The evaluation board comes with a mini-USB cable to connect Users can provide their own power supplies using the J4 and J5 to the USB port of a PC. The silkscreen for the evaluation board connectors, as shown in Figure 2.
  • Page 4: Changes To Evaluation Board Hardware Section And Figure 2

    UG-106 Evaluation Board User Guide To find the optimum frequency range for a given inductor, see Figure 4. Ensure that the desired frequency is between the two lines and determine the appropriate inductance needed. INDUCTANCE (nH) Figure 4. Output Center Frequency vs. External Inductor Value Figure 3.
  • Page 5: Evaluation Board Software Quick Start Procedures

    The install wizard guides you through the installation process. The software is installed in a default directory called C:/Program Files/Analog Devices/ADF4360. The software requires Microsoft’s .NET Framework Version 2.0 or later to be installed on your machine. The installer automati- cally downloads the framework from the Microsoft website if you do not have this installed.
  • Page 6: Added Figure 8 And Figure 9

    Click OK or Next. Note that installing this driver package disables older versions If prompted by Windows Security, choose Install this of Analog Devices PLL software; therefore, only install if needed. driver software anyway. Rev. C | Page 6 of 16...
  • Page 7: Replaced Programmable Software Settings Section With Using The Evaluation Board Software Section

    The main interface window opens (see Figure 10). Confirm that to be written to the registers. Analog Devices RFG.L Eval Board connected is displayed at In the Sweep and hop tab, you can make the device sweep a the top of the window. Otherwise, the software has no connection range of frequencies or hop between two set frequencies.
  • Page 8: Changes To Figure 10

    UG-106 Evaluation Board User Guide Figure 10. Software Main Interface Window Rev. C | Page 8 of 16...
  • Page 9: Evaluation Board Schematics

    Evaluation Board User Guide UG-106 EVALUATION BOARD SCHEMATICS Figure 11. EV-ADF4360-9EB1Z Schematic Rev. C | Page 9 of 16...
  • Page 10: Changes To Figure 12

    UG-106 Evaluation Board User Guide Figure 12. EV-ADF4360-9EB1Z Schematic (Continued) Rev. C | Page 10 of 16...
  • Page 11: Changes To Figure 13

    Evaluation Board User Guide UG-106 Figure 13. EV-ADF4360-9EB1Z Schematic (Continued) Rev. C | Page 11 of 16...
  • Page 12: Ordering Information

    UG-106 Evaluation Board User Guide ORDERING INFORMATION BILL OF MATERIALS Table 1. Reference Designator Part Description Manufacturer/Part No. C1, C3, C5, C29, C30, C32, C37, C38, C39, C40, Capacitor, 0402, 0.1 µF, 16 V Kemet C0402C104K4RAC C41, C42, C43 C2, C4, C6, C8 Capacitor, 0402, 10 pF, 50 V Kemet C0402C100J5GACTU Capacitor, Case A, 22 µF, 6.3 V...
  • Page 13: Related Links

    T1 to T8, T13 to T16 Terminal, PCB, red, PK100 Vero Technologies, Ltd. 20-313137 T9 to T12 Test point (not inserted) Integrated integer-N synthesizer Analog Devices ADF4360-9BCPZ U2, U3 High accuracy low dropout linear 3 V Analog Devices ADP3300ARTZ-3 regulator...
  • Page 14 UG-106 Evaluation Board User Guide NOTES Rev. C | Page 14 of 16...
  • Page 15 Evaluation Board User Guide UG-106 NOTES Rev. C | Page 15 of 16...
  • Page 16 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
