Analog Devices EV-ADE9153ASHIELDZ User Manual

Energy measurement shield with msure autocalibration
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
ADE9153A

FEATURES

Arduino-compatible, single-phase energy measurement
shield with the
ADE9153A
Onboard shunt for line current measurement
Nominal current: 5 A
Maximum current: 10 A
Up to 240 V rms nominal line neutral voltage measurement
Arduino software library
mSure autocalibration and example application sketches

ADDITIONAL EQUIPMENT NEEDED

Arduino Uno, Arduino Zero, or equivalent
Voltage quick connect leads
USB micro cable
0.250 inch quick connect female connector

DOCUMENTS

ADE9153A
data sheet
ADE9153A Technical Reference Manual

SOFTWARE

Arduino IDE 1.8.4 or later
ADE9153A
library files
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Energy Measurement Shield with mSure Autocalibration
EV-ADE9153ASHIELDZ

GENERAL DESCRIPTION

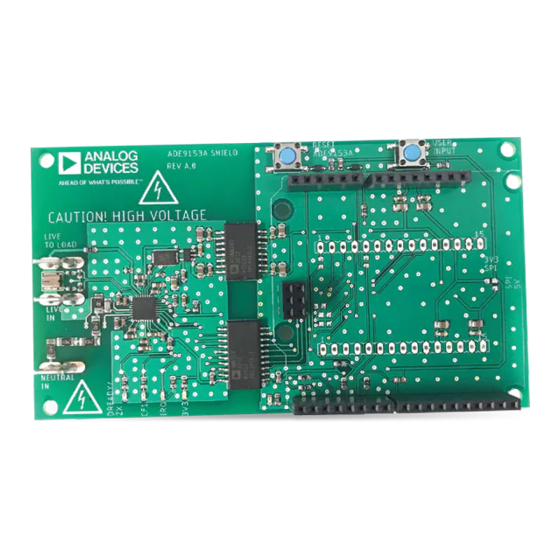

The EV-ADE9153ASHIELDZ is an Arduino shield compatible
with Arduino Uno, Arduino Zero, or ESP8266. The shield has
an on-board shunt resistor for line current measurement and
enables quick evaluation and prototyping of energy measurement
systems that use the ADE9153A. Arduino library and application
examples are provided on the
implementation of larger systems. Using mSure® autocalibration,
the shield can be calibrated to measure energy with 1% accuracy
over the dynamic range without the need for expensive calibration
equipment.

HAZARDOUS HIGH VOLTAGE CAUTION

The equipment described in this user guide is connected to
hazardous line voltages. Use proper caution when connecting the
sensors and voltage leads. Ensure that the system is enclosed in
a protective casing.
Rev. 0 | Page 1 of 8
User Guide
UG-1253
ADE9153A
product page to simplify

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV-ADE9153ASHIELDZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Analog Devices EV-ADE9153ASHIELDZ

Summary of Contents for Analog Devices EV-ADE9153ASHIELDZ

  • Page 1: Features

    One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com ADE9153A Energy Measurement Shield with mSure Autocalibration FEATURES GENERAL DESCRIPTION The EV-ADE9153ASHIELDZ is an Arduino shield compatible Arduino-compatible, single-phase energy measurement shield with the ADE9153A with Arduino Uno, Arduino Zero, or ESP8266. The shield has...

  • Page 2: Table Of Contents

    UG-1253 EV-ADE9153ASHIELDZ User Guide TABLE OF CONTENTS     Features ....................1 ESP8266 WiFi System on Chip (SOC) ........4     Additional Equipment Needed ............1 Current Sensors ................4     Documents ..................1 Voltage Sensors ................4     Software ..................... 1 Libraries ....................5...

  • Page 3: Conection Diagram

    EV-ADE9153ASHIELDZ User Guide UG-1253 CONECTION DIAGRAM ISOLATION BARRIER LIVE LOAD LIVE IN NEUTRAL ADE9153A Figure 1. EV-ADE9153ASHIELDZ Connection Diagram Rev. 0 | Page 3 of 8...

  • Page 4: Module Hardware

    SHIELD ESP8266 WIFI SYSTEM ON CHIP (SOC) The EV-ADE9153ASHIELDZ is powered from 5 V coming from The shield can also be used with the ESP8266 WiFi SOC. The Arduino. By default, the 5 V SPI jumper is connected and the board on-board header makes the shield compatible with the ESP8266 can be directly connected to Arduino Uno.

  • Page 5: Libraries

    EV-ADE9153ASHIELDZ User Guide UG-1253 LIBRARIES The EVAL-ADE9153ASHIELD Arduino libraries provide basic ADE9153A ARDUINO LIBRARY functions to access the ADE9153A. Use the calibration sketch to ADE9153AAPI.cpp calibrate the ADE9153A using an accurate source. The ADE9153AAPI.cpp file contains functions to communicate, INSTALLING THE LIBRARIES initialize, and read calculated parameters from the chip.

  • Page 6: Line Voltage Connections

    UG-1253 EV-ADE9153ASHIELDZ User Guide LINE VOLTAGE CONNECTIONS SINGLE-PHASE LINE AND NEUTRAL CONNECTIONS HAZARDOUS HIGH VOLTAGE The single-phase connection is shown in Figure 4. Do not The equipment described in this user guide is connected to exceed a nominal voltage of 240 V rms (line to neutral) in this hazardous line voltages.

  • Page 7: Evaluation Board Schematic

    EV-ADE9153ASHIELDZ User Guide UG-1253 EVALUATION BOARD SCHEMATIC Figure 4. EV-ADE9153ASHIELDZ Schematic Rev. 0 | Page 7 of 8...
  • Page 8 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
