UG-106

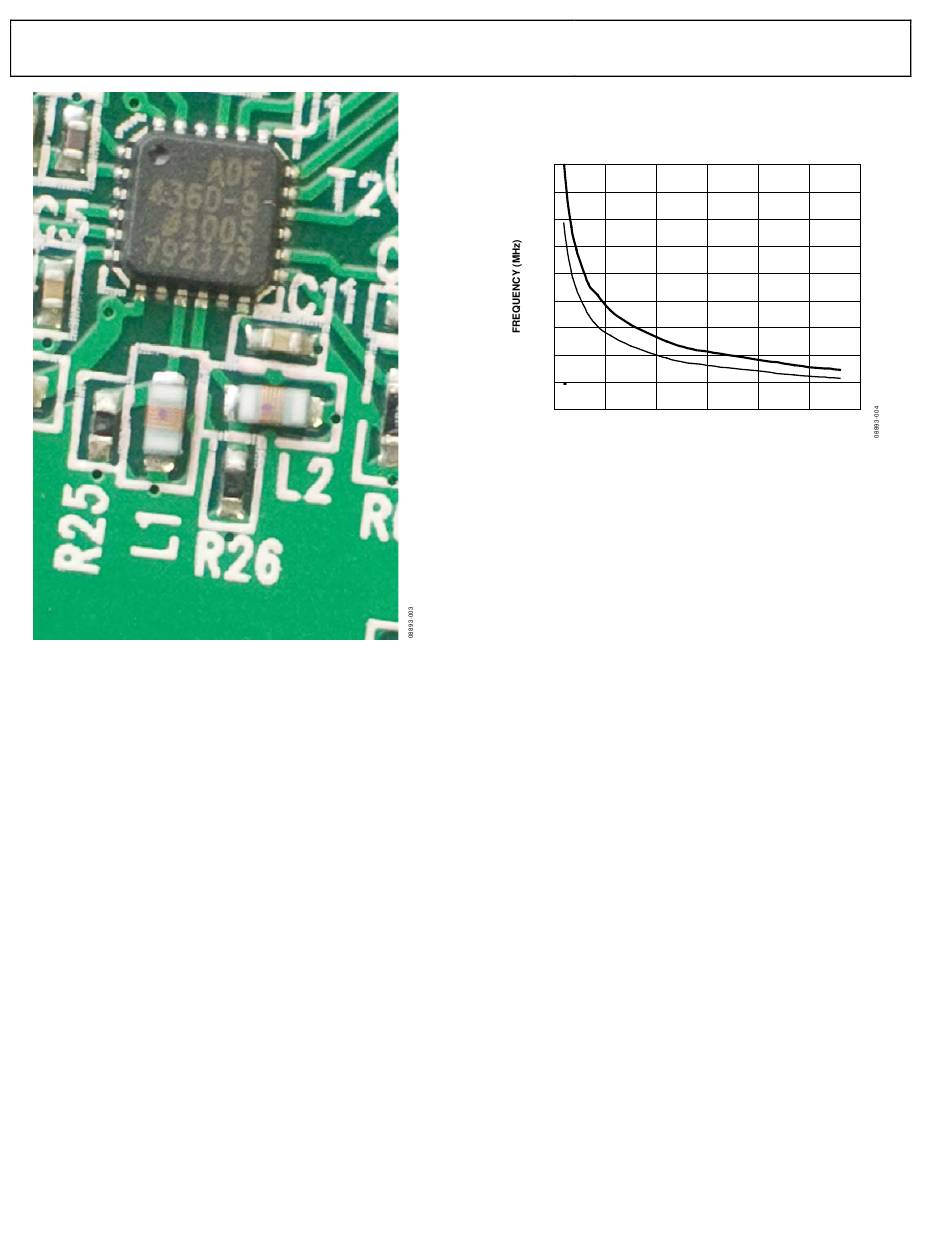

Figure 3. External Inductors and Resistors for the ADF4360-9 Tank Circuit
Rev. C | Page 4 of 16
Evaluation Board User Guide
To find the optimum frequency range for a given inductor, see
Figure 4. Ensure that the desired frequency is between the two
lines and determine the appropriate inductance needed.
450
400
350
300
250
200
150
100
50
0
0 100 200
INDUCTANCE (nH)
Figure 4. Output Center Frequency vs. External Inductor Value
300 400 500 600
