6.4 Assembly

6.4.1 Parts overview

0922.00
0162.00
0515.01
0934.03
0920.22

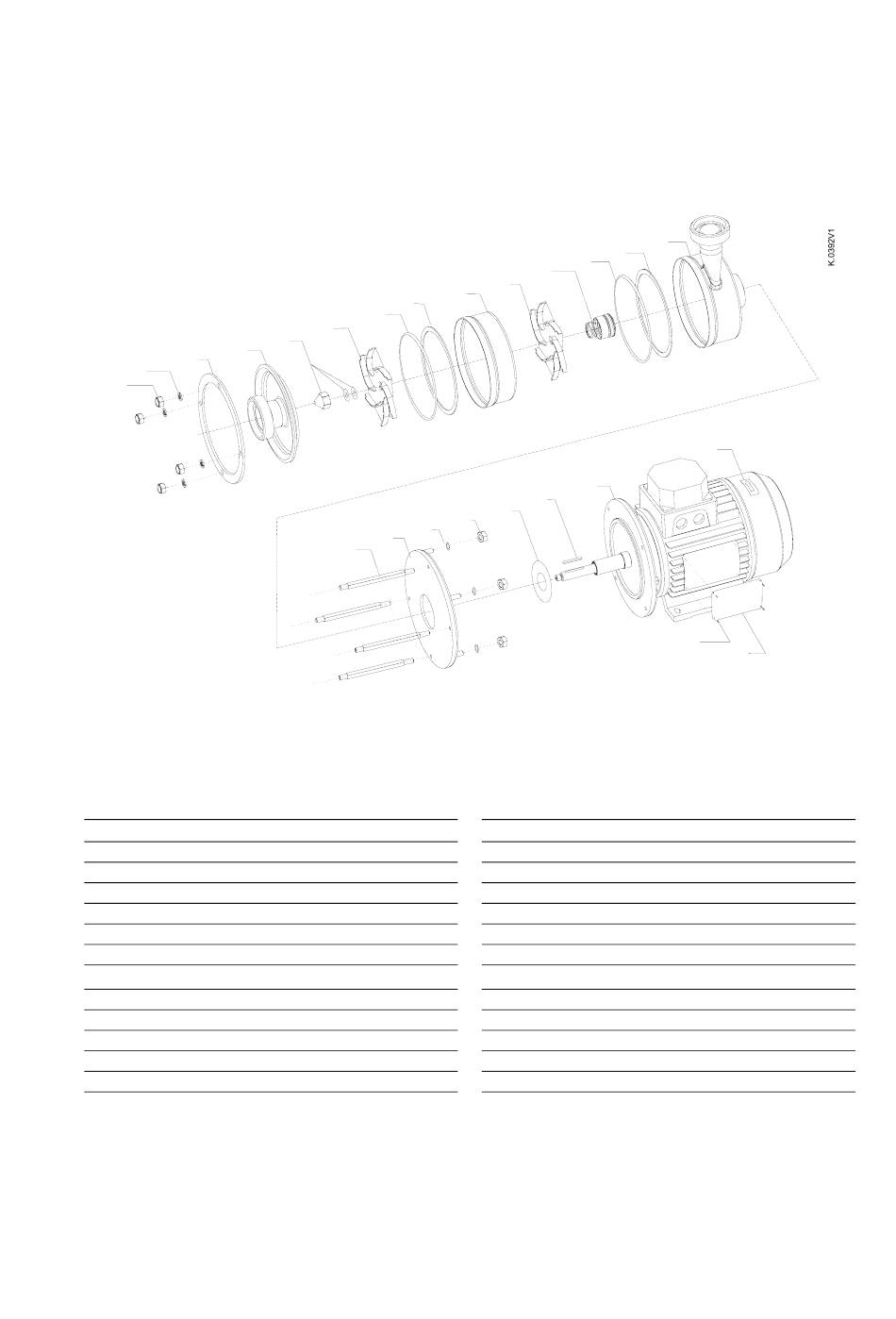

Fig. 10 Parts overview
Pce. Part no. Designation
1 0107.00 discharge casing
1 0112.02 diffusor casing
1 0162.00 suction cover
1 0230.01 impeller
1 0230.02 impeller
1 0340.00 lantern
1 0412.11
O-ring
1 0412.12 O-ring
1 0433.00 mechanical seal
1 0507.00 deflector / V-ring
1 0513.01 insert ring
1 0513.02 insert ring
Table 6 Parts list
a. Parts which are depending on number of stages are partially without figure.
BA.017.BYY.001.01.10.GB
0112.02
0513.02
0412.12
0230.02
0920.09
0934.06
0340.00
0905.00
a
0107.00
0513.01
0412.11
0433.00
0230.01
0802.00
0940.00
0507.00
Pce. Part no. Designation
1 0515.01 clamp ring
4 0560.00 pin
1 0802.00 close coupled motor
4 0905.00 tie bolt
4 0920.09 hexagon nut
4 0920.22 hexagon nut
1 0922.00 impeller nut
4 0934.03 spring washer
4 0934.06 spring washer
1 0940.00 key
1 0970.00 name plate
1 0970.01 sense of rotation arrow
