EVAL-M1-IM523 user guide
iMotionTM modular application design kit
System and functional description

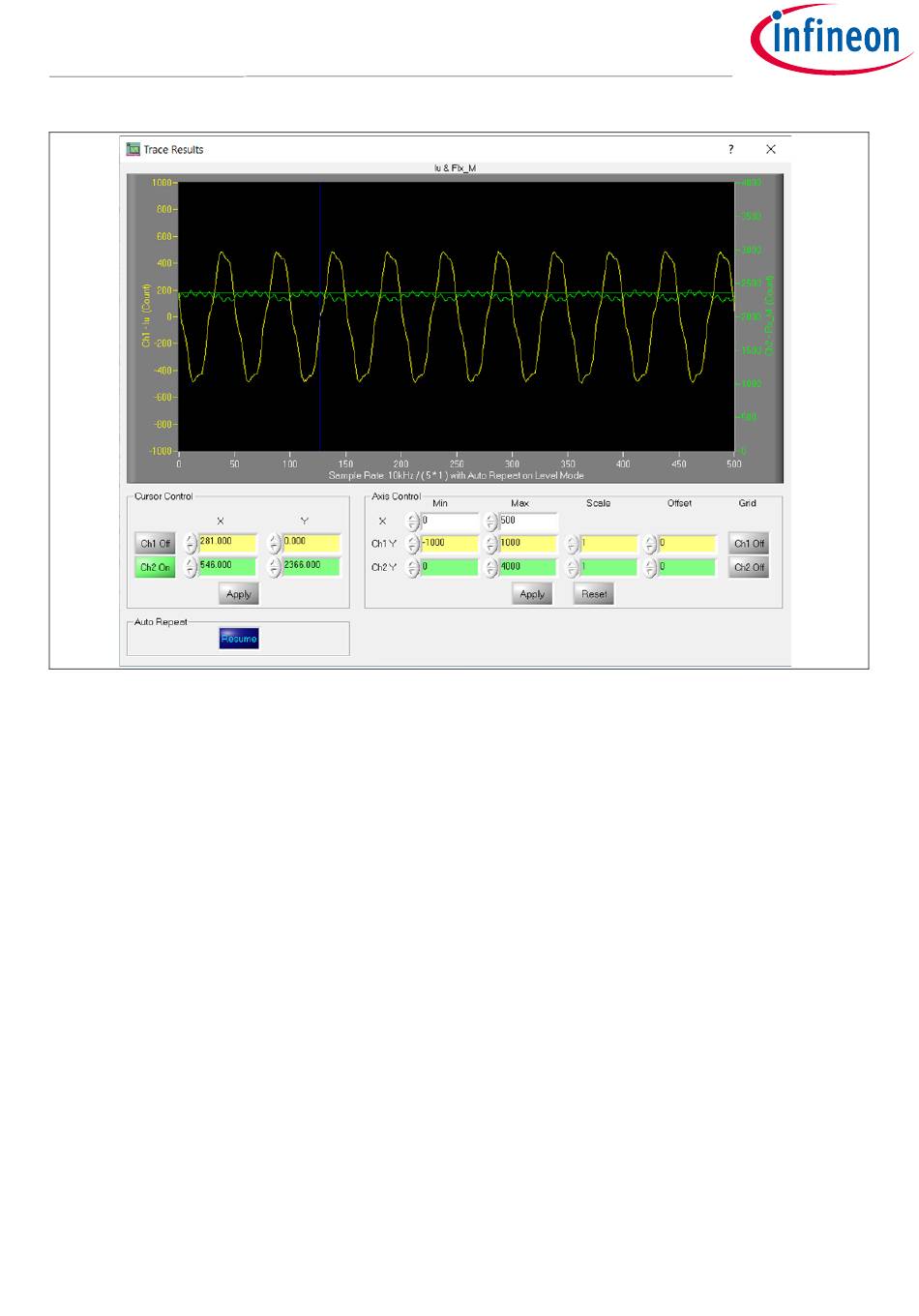

Figure 10 Trace waveform for I
To program a new parameter file after the firmware has been programmed, follow the instructions given in
16.
Step 9. In such cases, firmware programming is not needed.
Note: For detailed information on controller programming, refer to the Application Note AN2018-33
iMOTION™ 2.0 Device Programming, and the documentation for the MCEDesigner and MCEWizard.
2.2

Description of functional blocks

The motor inverter in the EVAL-M1-IM523 evaluation design is implemented using the CIPOS™ Mini IPM IM523-
X6A, and the auxiliary power supply is based on the fixed-frequency CoolSET
The CIPOS Mini IPM IM523 product group enables the integration of various power and control components
TM
to increase reliability, optimize PCB size, and reduce system costs. It is designed to control 3-phase AC motors
and permanent-magnet motors in variable speed drives for applications such as air conditioners and
refrigerators.
The package concept is especially adapted to power applications that need good thermal conduction,
electrical isolation, EMI control, and overload protection. The integrated reverse-conducting IGBTs are
combined with an optimized silicon on insulator (SOI) gate driver for excellent electrical performance.
Figure 11 shows the internal block diagram of the CIPOS™ Mini IPM IM523-X6A.
Its main features include:
A 600 V reverse-conducting RCD2 IGBT
•
& Flx-M at 50% speed
u
13
ICE5GR4780AG.
TM
Revision 1.00
2023-01-16
