EVAL-M1-IM523 user guide
iMotionTM modular application design kit
System performance

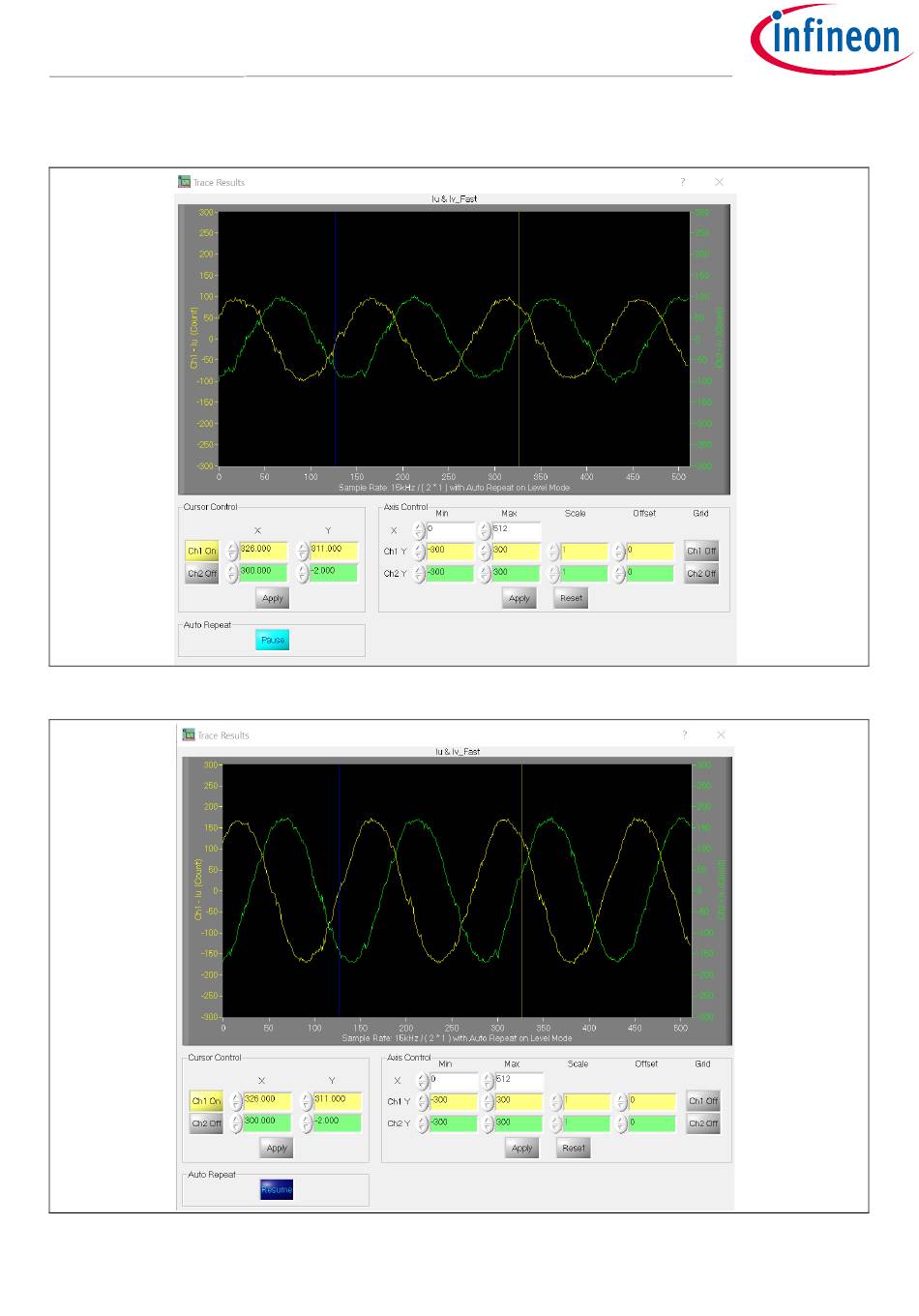

Figure 36 320 W load current feedback, 2 A
Figure 37 500 W load current feedback, 3 A
Figure 38 930 W load, 5.5 A
phase current, 15 kHz PWM, 220 V
rms
phase current, 15 kHz PWM, 220 V
rms
phase current, 15 kHz PWM, 220 V
rms
input
AC
35
input
AC
input
AC
Revision 1.00
2023-01-16
