The VF Diagnostic sub-function can verify whether the:
o Motor is correctly connected
o IGBT/MOS and gate driver work as expected
o Parameters related to current-sensing are correctly configured
o PCB layout and DC bus decoupling have been done correctly
After the VF Diagnostic is complete, click STOP (the red traffic light button) to stop the PWM (Pulse Width
12.
Modulation).

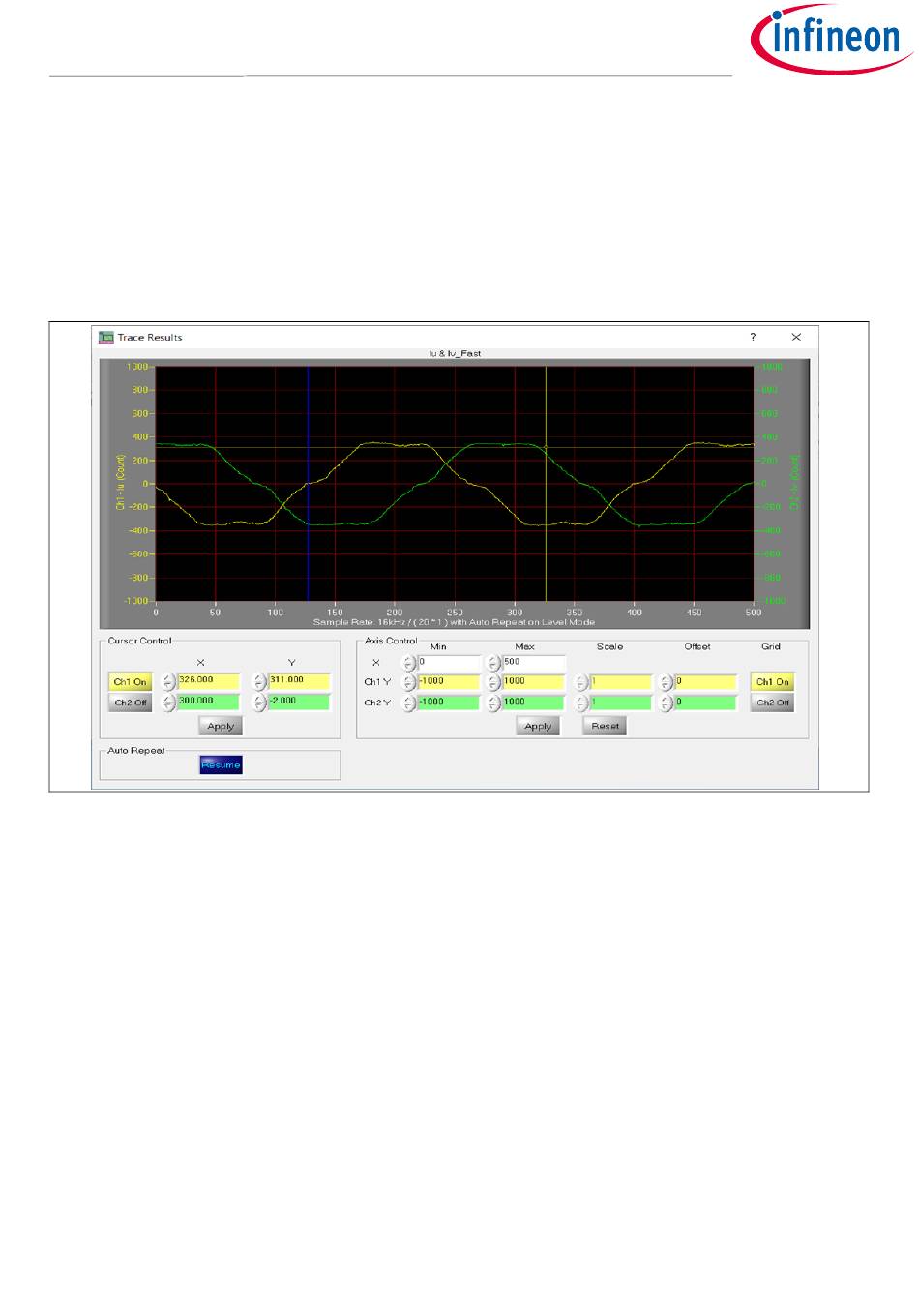

Figure 9 Trace waveform for I
Click the green traffic light button in the control bar to start the motor or double-click Start Motor sub-
13.
function in the Motor1 page "group of User Application Function Definitions." The motor runs when this
step functions properly.
Check the motor-spin direction, adjust the UVW connection order, or set negative target speed in the
14.
MCEDesigner if the direction is wrong.
Set the target speed to about 50% of the maximum speed and start the I
15.
Level Mode (see Figure 10.) Flx_M is better within the range of 2000 to 2500 (rated value is 2048), and must
be steady and DC-like.
Some key tips for better motor-performance tuning are:
If Flx_M is not steady (i.e. swinging or oscillating), double-check the motor parameters, speed loop
•
Propotional-Intergra (PI) gain, flux estimator time constant, and the setup related to the PLL PI
bandwidth (parameters PLLKp and PLLKi).
If Flx_M is noisy, double-check the current feedback, and the hardware and parameters related to V
•
If Flx_M is far from 2048, adjust the Motor Back EMF Constant (Ke) in the MCEWizard.
•
& I open loop diagnostic
u v
12
& Flx_M trace with Auto Repeat on
u
.
DC
