EVAL-M1-IM523 user guide
iMotionTM modular application design kit
System performance

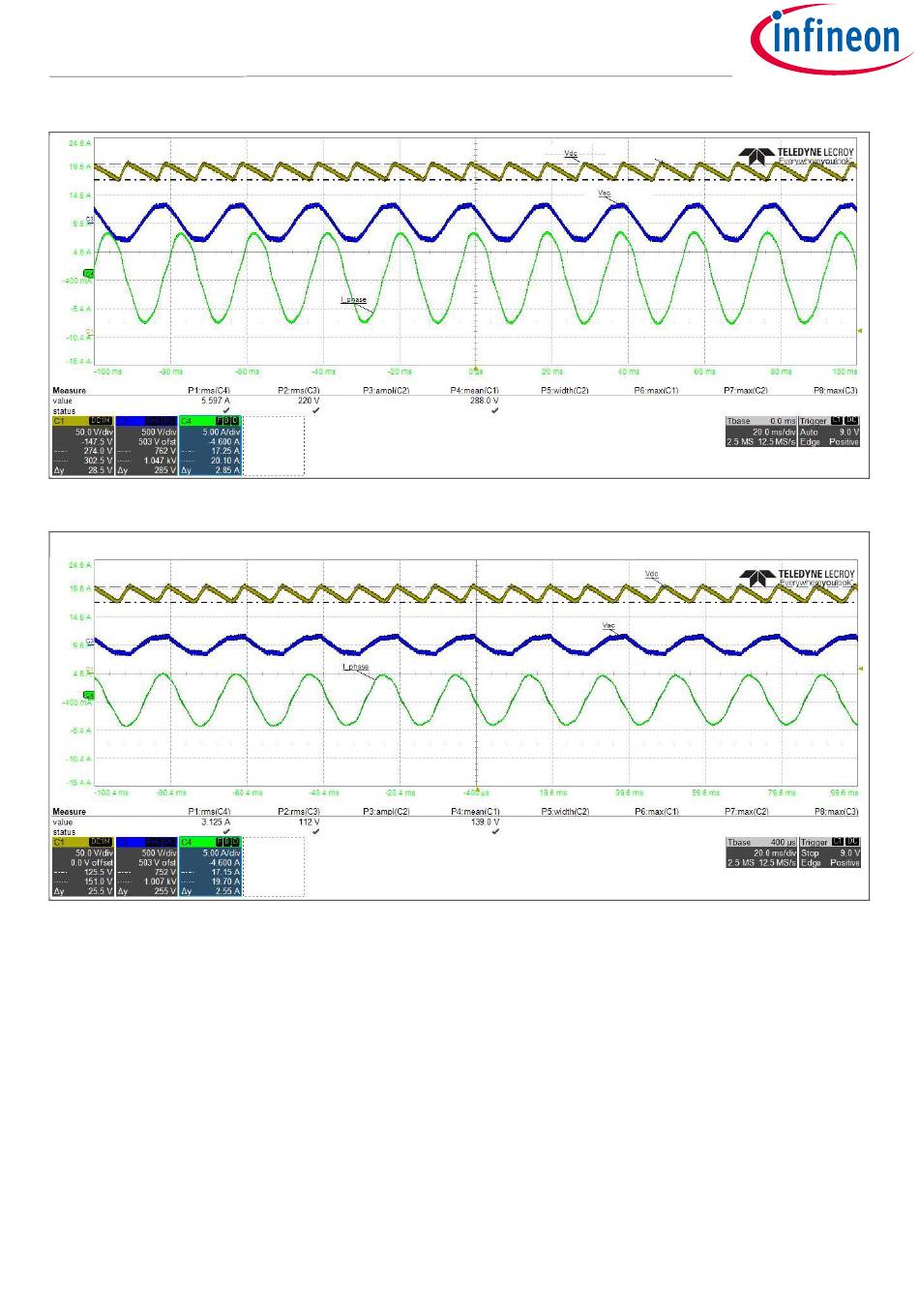

Figure 28 Scope waveform at 220 V
Figure 29 Scope waveform at 110 V
input, 15 kHz PWM and 900 W output
AC
Figure 29
input, 500 W output power, and 15 kHz PWM
AC
29 Revision 1.00
2023-01-16
