EVAL-M1-IM523 user guide
iMotionTM modular application design kit
System design
3.4

Layout

The EVAL-M1-IM523 board has two electrical layers with 140 µm copper (1 oz.) and a dimension of 160 mm x 115
mm. The thickness of the PCB board is 1.6 mm. Figure 15 and Figure 16 show the PCBA assembly of the EVAL-
M1-IM523.

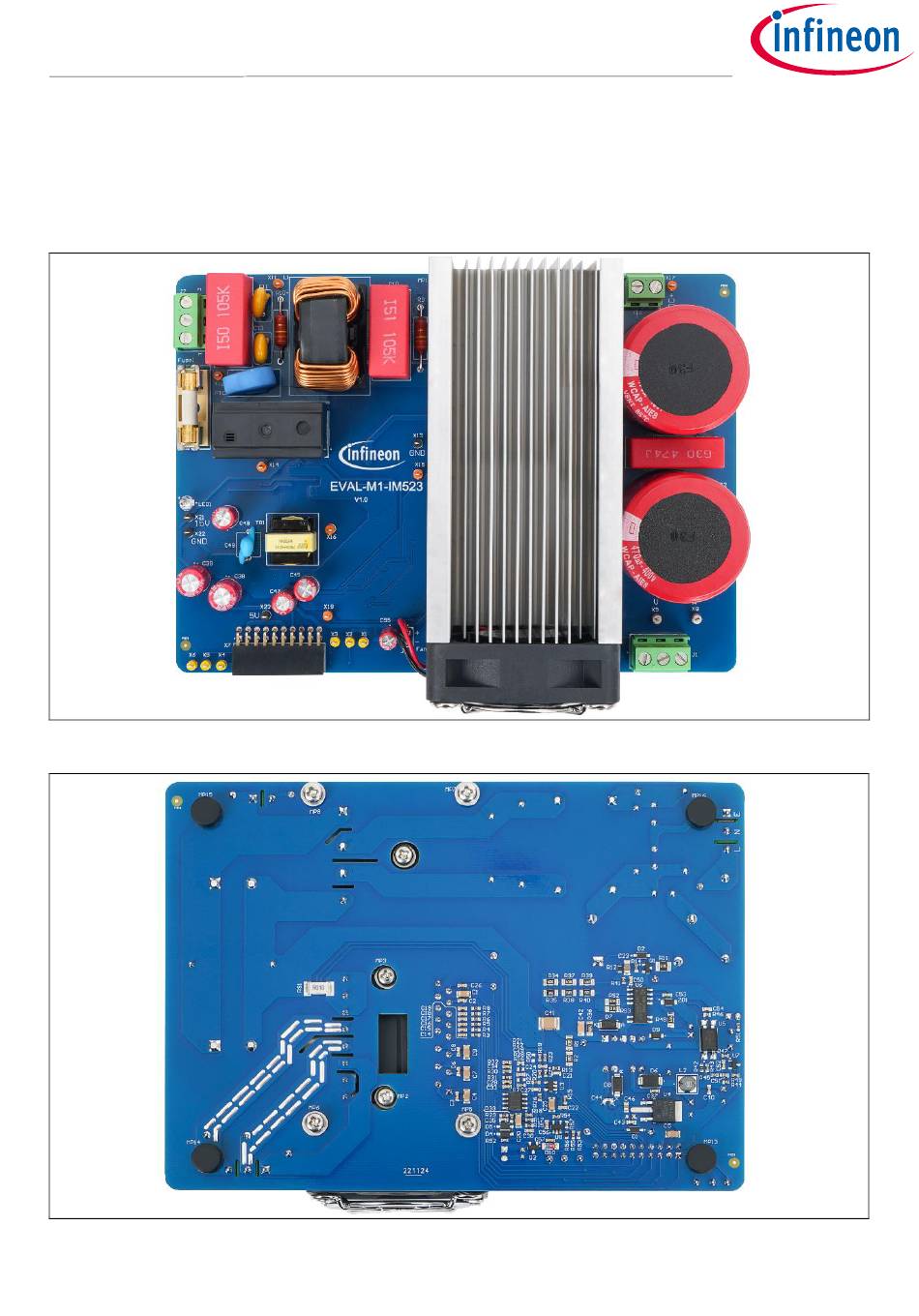

Figure 15 Top-assembly PCBA of the EVAL-M1-IM523
Figure 16 Bottom-assembly PCBA of the EVAL-M1-IM523
