System performance

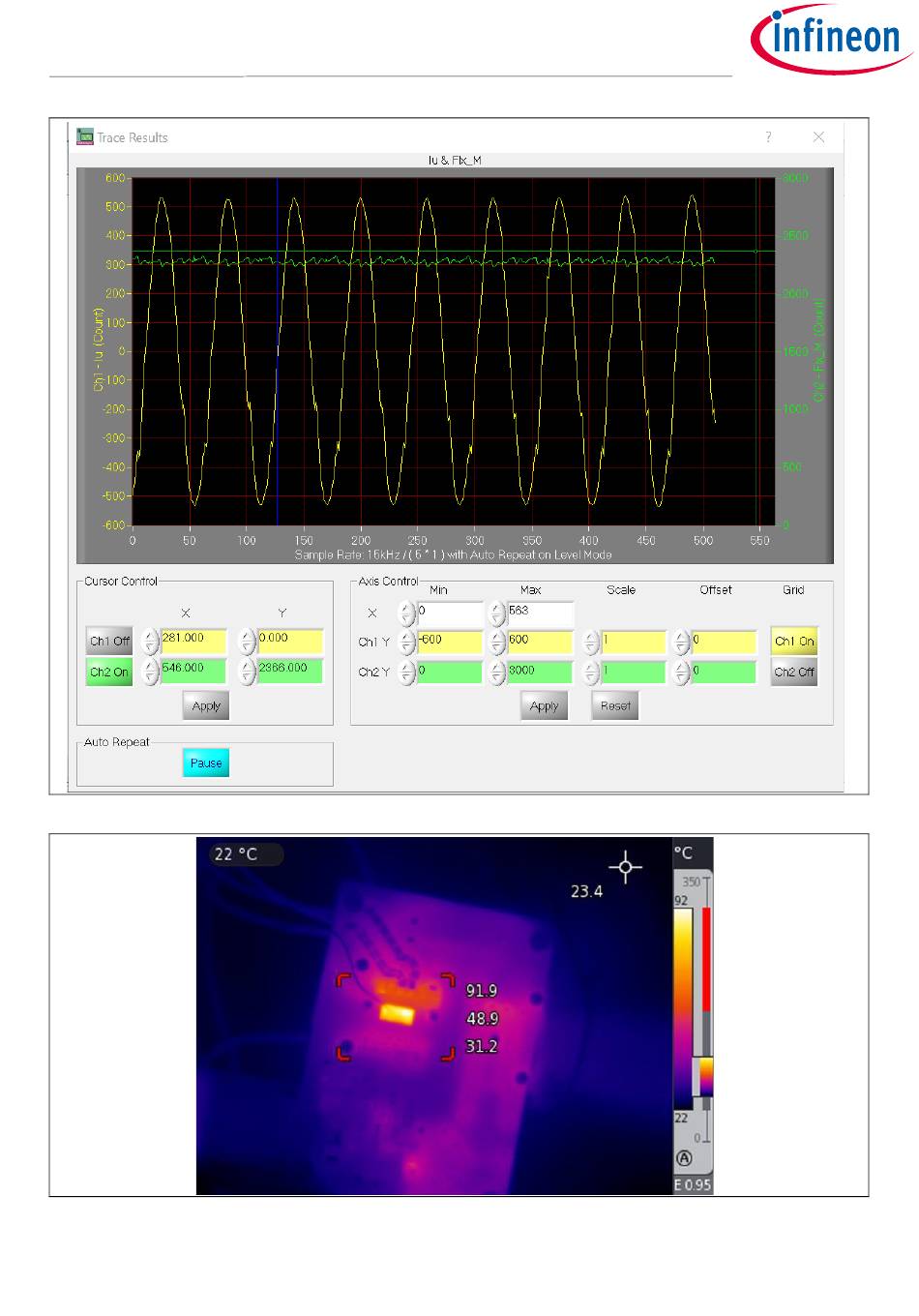

Figure 26 Iu & Flx_M at 15 kHz PWM, 220 V
Figure 27 Thermal test at 220 V
input, 900 W output (5.5 A
AC
input, 15 kHz PWM and 900 W output
AC
28
phase current)
rms
