EVAL-M7-D112T user guide
iMOTION™ evaluation board for smart driver
System and functional description
After setting all the parameters, users need to program the parameters into IMD112T flash, and then move to
the dashboard page (see Figure 5). On the dashboard page, users can start or stop the PFC/motor and test the
board. Tuning the parameters for better performance can also be done through this page. Please refer to [2] for
details.
2.2

Description of functional blocks

This section covers the hardware design of EVAL-M7-D112T in detail so that users can understand some key
circuitry on this board. This will help them easily use the configuration wizard to calculate parameters and
develop their solution based on the evaluation board's design.
2.2.1

EVAL-M7-D112T pinout assignment and functional groups

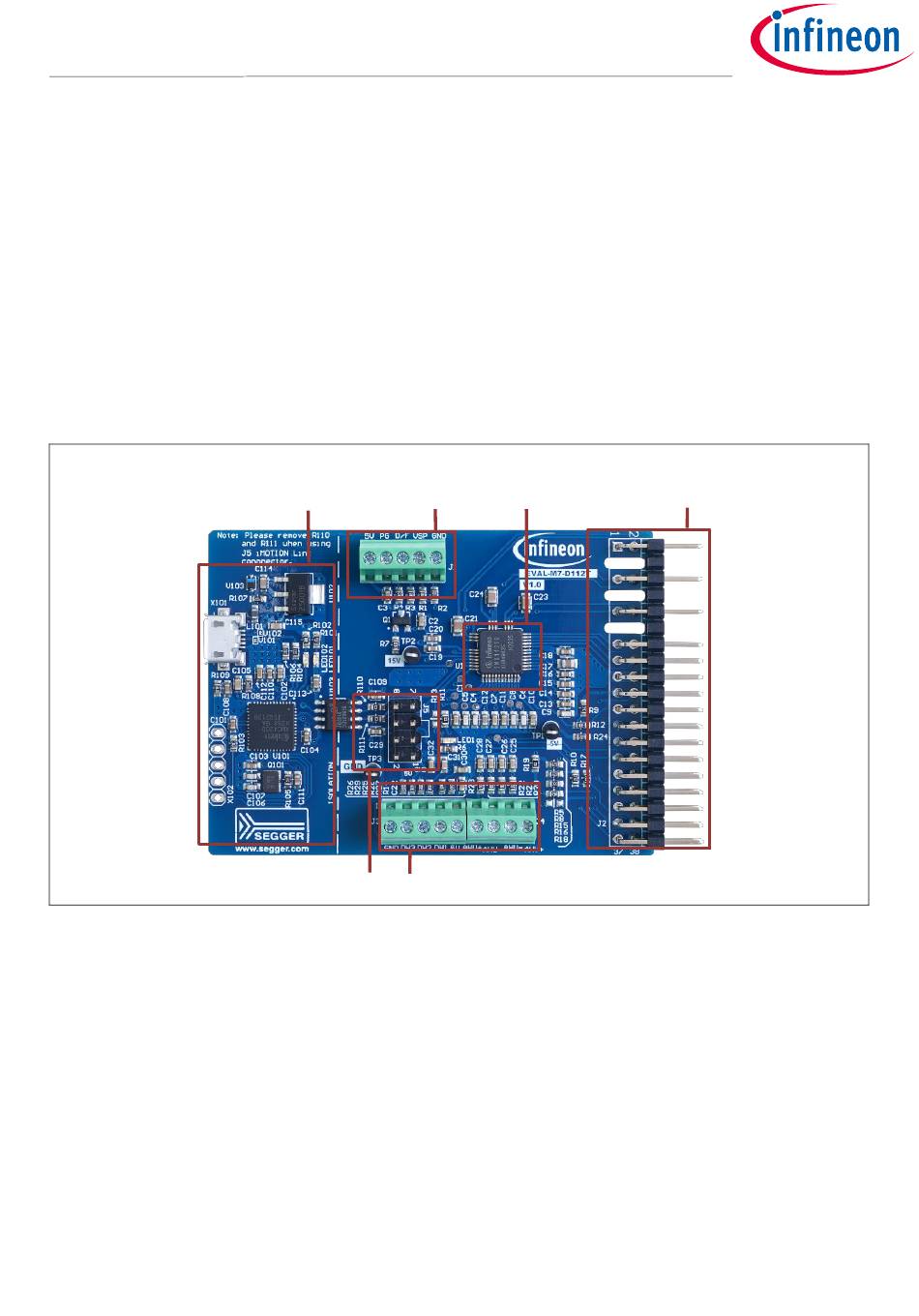

Figure 6 shows the pinout assignments and functional groups on the EVAL-M7-D112T evaluation board.
Figure 6 Pinout assignments and functional groups
1. Onboard debug
2. Variable speed control (VSP), duty/frequency, and pulse generator (PG) output
3. IMD112T
4. M7 connector
5. Digital (Hall)/analog position feedback inputs
6. iMOTION Link connector
TM
There are several connectors on the EVAL-M7-D112T board. All the connectors' pin assignments are listed in
Table 4~Table 8.
1 2
6 5
11
4
3
