EVAL-M1-IM523 user guide
iMotionTM modular application design kit
System and functional description

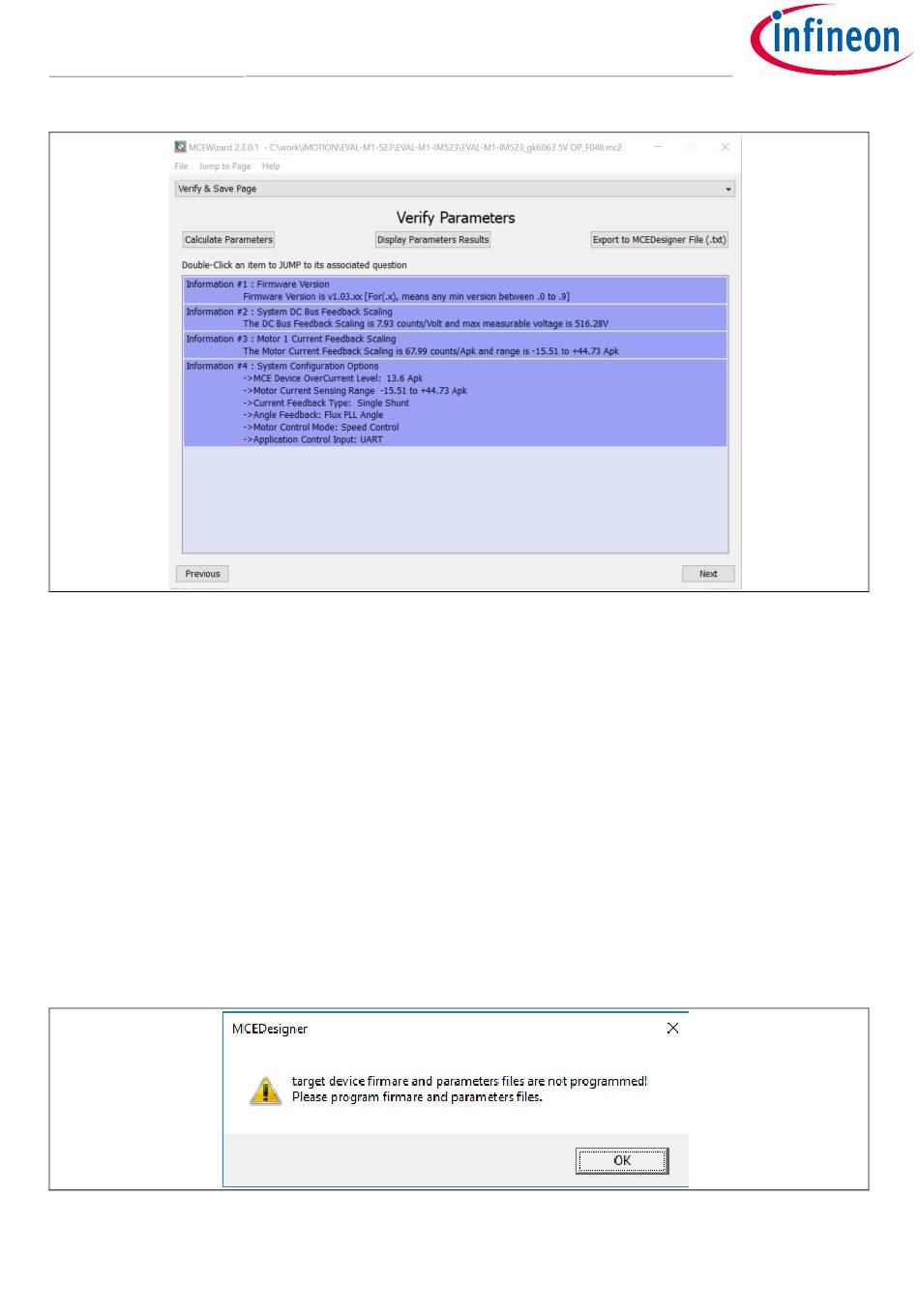

Figure 6 MCEWizard's Verify & Save page
Turn on the 220 V AC power supply, LED 1 and 2 turn red.
5.
Start the MCEDesigner tool and click File > Open to open the MCEDesigner default configuration file (.irc) for
6.
the IMC101T device (IMC101T_Vxxx.irc.)
(The IMC101T_Vxxx.irc file is included in the downloaded IMC101T MCE software package).
The MCEDesigner should automatically connect to the EVAL-M1-101T board using the default COM port
7.
(indicated by a green circle next to the "COMx Up" status in the bottom frame of the MCEDesigner GUI). If
the connection cannot be established due to an incorrect COM port, change the COM port by following
these steps:
Open the System Page window.
a)
Click Preferences > Connection > Connect using.
b)
Choose one of the other available COM ports from the drop-down list.
c)
In case of a blank IC: If the firmware has been erased from the IMC101T, a warning message will pop up (see
8.
Figure 7) "Target device firmware and parameters files are not programmed! Please program firmware and
parameters file." See step 9 on how to obtain/program firmware and parameters.
Figure 7 MCEDesigner warning message
