EVAL-M7-HVMOS-INV user guide
Evaluation power board with M7 connector
System and functional description

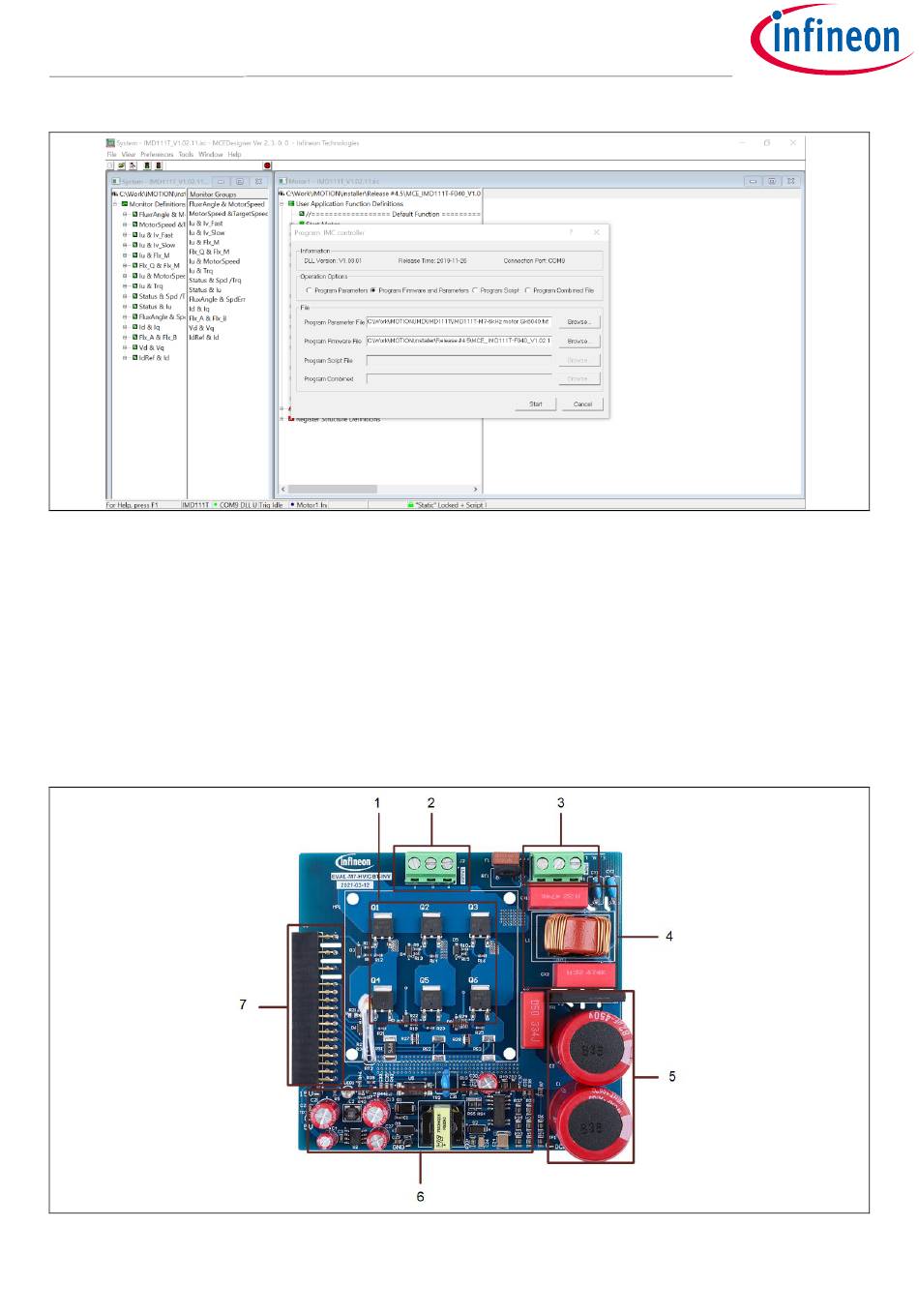

Figure 7 Programming window
2.3

Description of the functional blocks

This chapter covers the hardware design of the EVAL-M7-HVMOS-INV in more detail, so that users can
understand the functional groups of this power board and use the board to easily evaluate the performance.
And it is also helpful for users to develop their solution based on the evaluation board design.
2.3.1

E VAL-M7-HVMOS-INV functional groups

Figure 8 depicts the evaluation board of EVAL-M7-HVMOS-INV functional group.
Figure 8 Functional groups
User guide 12 of 30 Revision 1.0
2021-06-28
