Figure 13 Schematics for the IM523-X6A IPM and peripheral circuit
3.3

Auxiliary power supply

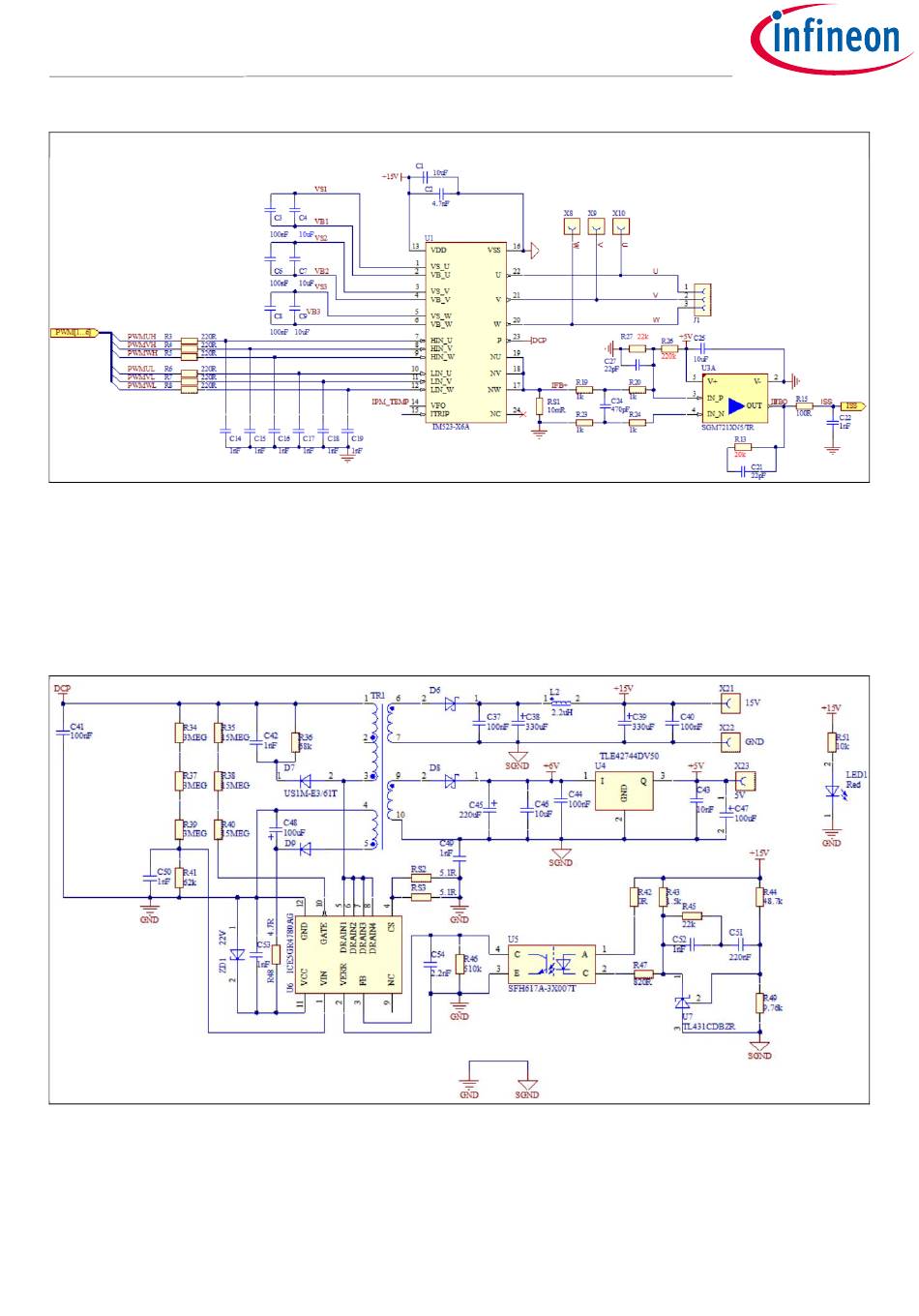

Figure 14 shows the schematic of the auxiliary power supply for the EVAL-M1-IM523 board. The circuit includes
the latest CoolSET 5 (ICE5GR4780AG) from Infineon and a flyback topology with direct output of 15 V and 6 V.
TM
The VCC is connected to the gate drivers inside the CIPOS™ IPM.
Figure 14 Auxiliary power supply of the EVAL-M1-IM523
The linear voltage regulator TLE42744DV50 generates 5.0 V from a 6 V power supply VCC. The 5.0 V power
supply is used in the inverter's external overcurrent comparator circuit. Both VCC and 5.0 V are also present on
the 20-pin iMOTION™ MADK-M1 interface connector to power the circuitry on the control board.
