EVAL-M1-IM523 user guide
iMotionTM modular application design kit
System and functional description

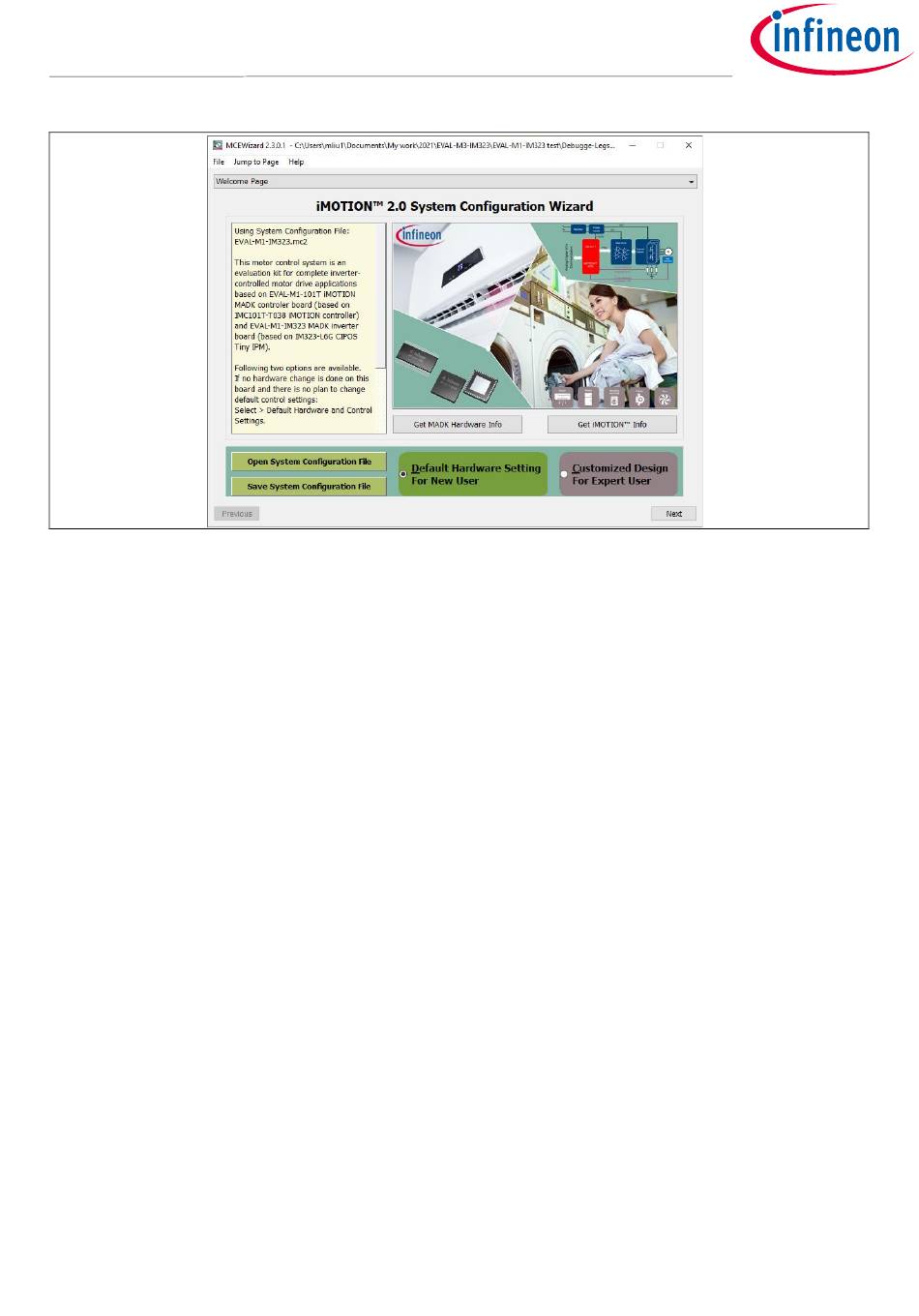

Figure 5 MCEWizard's welcome page
After downloading and installing the MCEWizard and MCEDesigner, follow these steps to run the motor:
Connect the EVAL-M1-101T control board to the EVAL-M1-IM523 evaluation board. Then, connect the PC-
1.
USB connector to the EVAL-M1-101T control board.
Connect the 220 V AC power supply and the UVW outputs to the motor.
2.
In the MCEWizard, enter the system and operating parameters of the target motor, and the hardware
3.
parameters of the evaluation board. This data is used for calculating the digital parameter set of the
controller, representing the complete motor drive system.
After setting the system and operating parameters, go to the Verify & Save page and click Calculate
4.
Parameters. If no errors are reported, save the drive parameter set into your project directory by clicking
Export to MCEDesigner file (.txt) (see Figure 6); if an error message appears, double-click the error
message (highlighted in RED) and adjust the erroneous parameters. This drive-system parameter file is later
used by the MCEDesigner (step 9.)
Note: Refer to the MCEWizard_V2.3.0.1 User Guide.pdf for details. This guide is available in the MCE
Wizard's installation path.
9 Revision 1.00
2023-01-16
