Charge summary
1
2
3
4
5

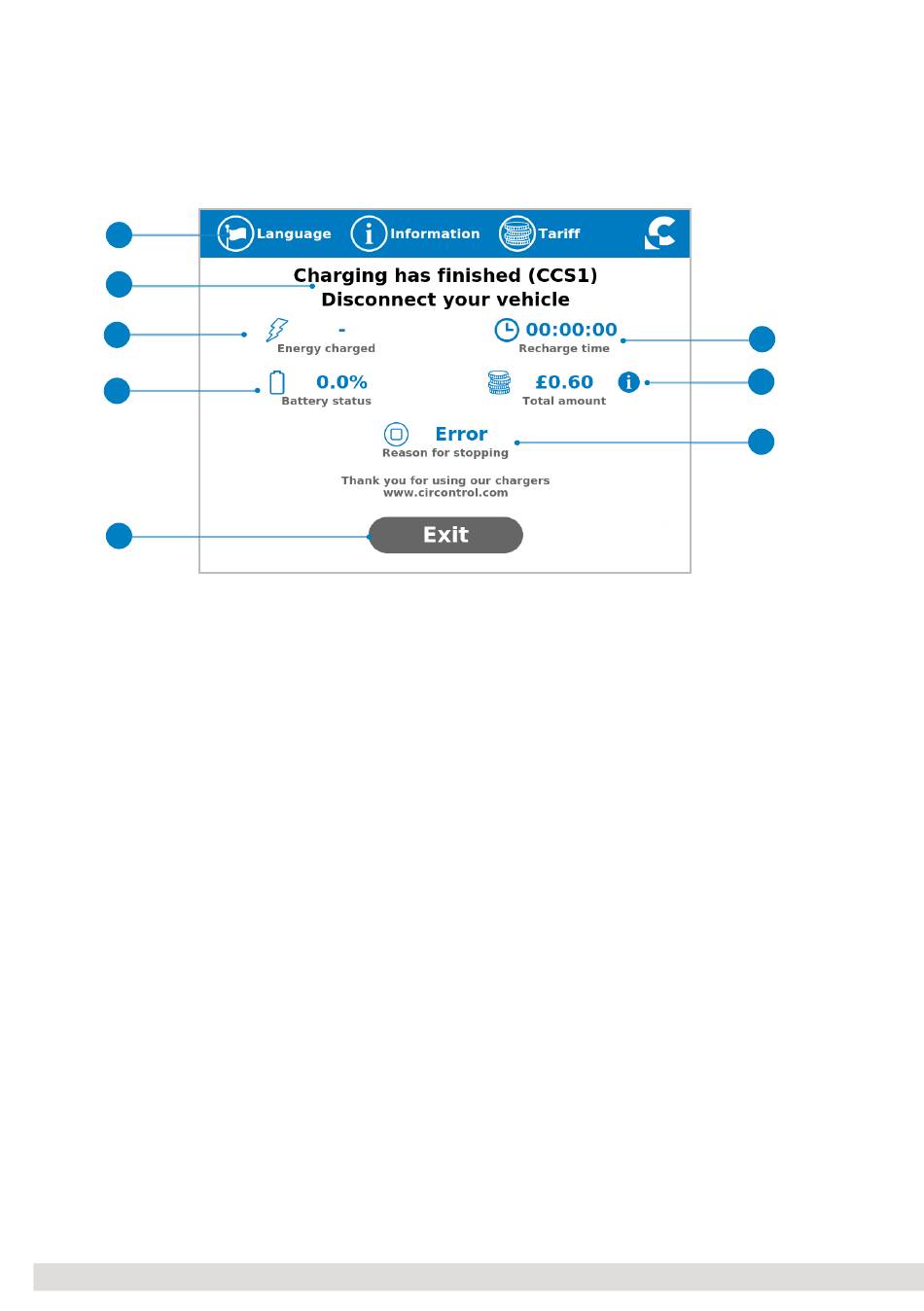

1- Language button: possibility to change the HMI language.
2- Process instructions: different instructions can be displayed.
3- Energy charged: total energy charged at the end of the charging session.
4- Battery SOC*: It indicates the final battery state of charge at the end of the
charging session.
5- Exit button: It has to be pressed in order to finish the charging session.
After pressing, the HMI screen will go back to the "identification screen".
6- Recharge time: total recharging time at the end of the charging session.
7- Information button: pressing over this button you can get information about the
charging session tariff applied.
8- Stop reason: It shows why the charging session has been stopped.
(*) This information is only available in Raption and evolve Rapid series models.
