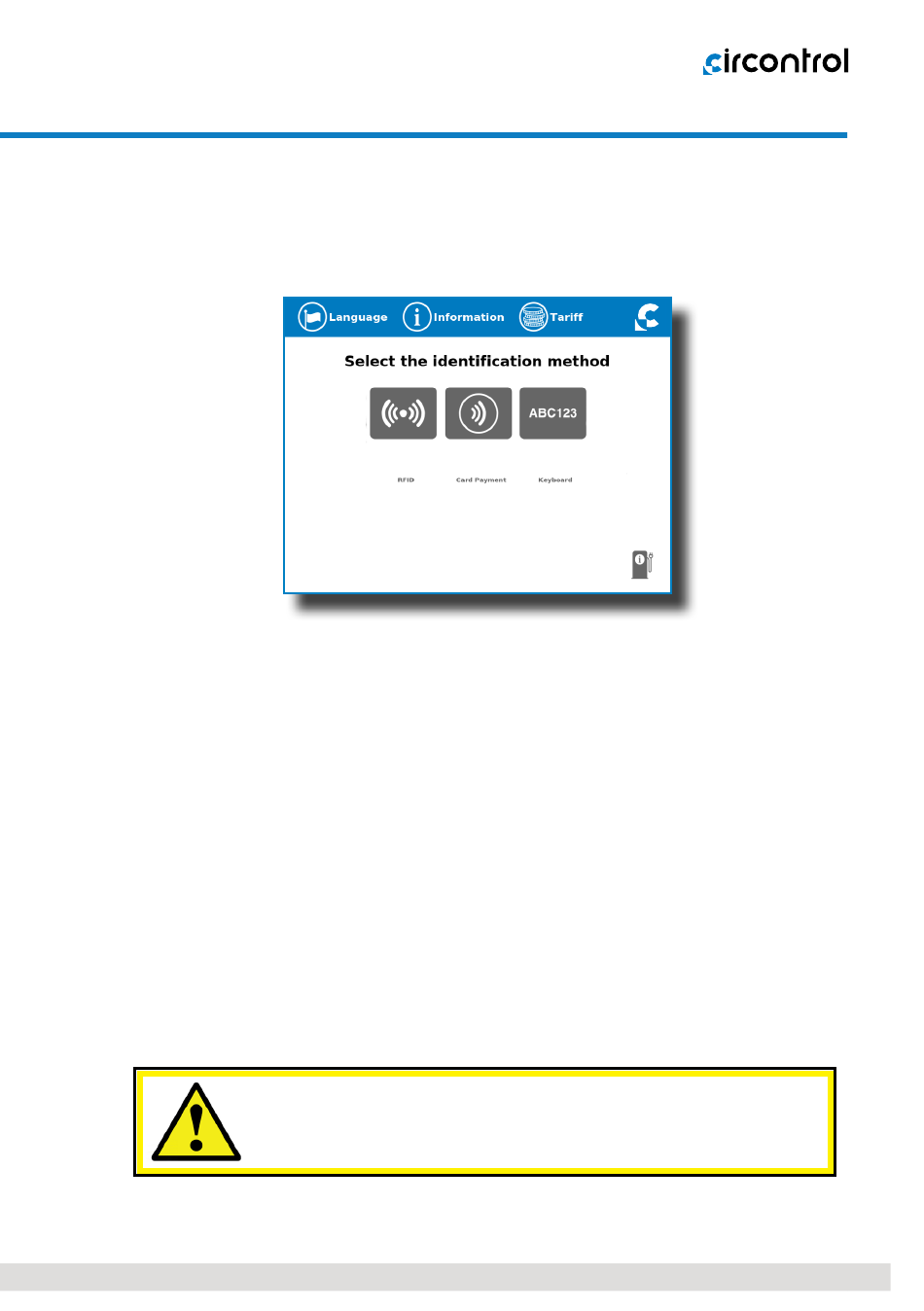

When tapping on the screen, the HMI will skip to the next one:*
At this new screen, the Charge Point is asking for showing the identification method
the user is going to use in order to start a charge transaction, as you can see there
are four possible options.
- Choosing RFID or keyboard options, are the options that will let to initiate a 'Charging
session' to the user that has the identification card, has been registered in advance
or a code has been given to type it manually in the screen.
- Paying by a debit or credit card, that will let to initiate a 'Charging session' to the
user without been registered in advance.
In the lower right corner, it shows the connectors status and the charging process so
as to know the Charge Point availability.
(*) Depending on the optionals chosen, the identification methods available can vary.
Note: If some Charge Point do not have the latest firmware
update, the term "slave" may appear instead of "satellite".
